Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
induction brazing machine for carbide tips
-
Material:
-
S.S,C.S, Alloy Steel, Carbide Alloy, Carbon steel. etc
-
Frequency:
-
50-100KHZ
-
Output Power:
-
7 KW
-
Weight:
-
20 KG
-
Color& language:
-
Customized is available
-
Duty Cycle:
-
24 hours No-stop
-
Cooling:
-
Cooled by water
-
Certification:
-
BV, ISO9001:2008
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
DUOLIN
-
Weight (KG):
-
20
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
induction brazing machine for carbide tips
-
Material:
-
S.S,C.S, Alloy Steel, Carbide Alloy, Carbon steel. etc
-
Frequency:
-
50-100KHZ
-
Output Power:
-
7 KW
-
Weight:
-
20 KG
-
Color& language:
-
Customized is available
-
Duty Cycle:
-
24 hours No-stop
-
Cooling:
-
Cooled by water
-
Certification:
-
BV, ISO9001:2008
carbide tips induction brazing equipment
Application

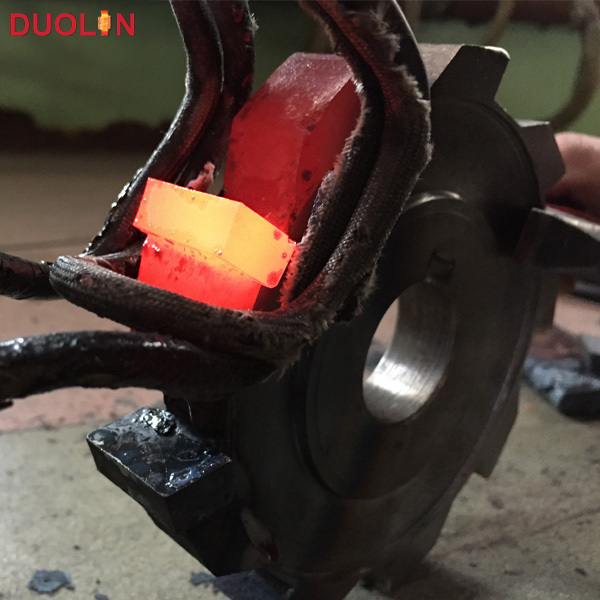

Induction brazing machine suitable for brazing saw blades, carbide tip, Cooper tube, Aluminum parts, Rotor
Feature
- IGBT inversion technology.
- Good quality of joint with uniform heating temperature
- High efficiency with heating fast
- 24 hour non-stop working
- Be started up 100% at any load
- Environment friendly
Technical Parameter
|
Model |
HFP20 |
|
|
Rated Power Output |
7KW |
|
|
Working Frequency |
50-100Khz |
|
|
Power Capacity |
20KVA |
|
|
Input Power |
220V/50Hz Signal Phase |
|
|
Working Voltage |
190-250V |
|
|
Input Current |
42A |
|
|
Cooling
|
Power Unit |
15L/min (0.1Mpa) |
|
Transformer |
/ |
|
|
Weight |
Power Unit |
20Kg |
|
Transformer |
/ |
|
|
Dimension
|
Power Unit |
470*178*355 |
|
Transformer |
/ |
|
