Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-

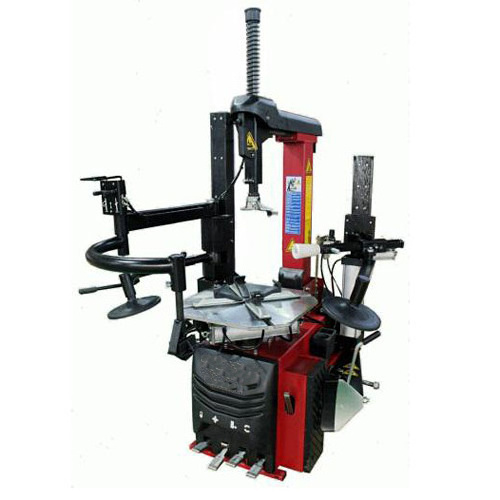

BATTLE-AXE corghi Tire Changer machine, Battle-Axe corghi Tire Changer machine
-
Model Number:
-
C233GC+DAA corghi Tire Changer machine
-
Warranty:
-
12 Months
-
tire changer function:
-
Tilt back column design
-
tire changer feature:
-
Low cabinet design.
-
tyre changer function:
-
Twins clamping cylinders.
-
outside clamping:
-
10-24
-
inside clamping:
-
12-26
-
Max wheel width:
-
14''
-
Max wheel diameter:
-
42''
-
Working Air Pressure:
-
8-10kgs
-
Bead breaker force:
-
2500kgf
Quick Details
-
Motor Power:
-
0.75/1.1kw
-
Operating Pressure:
-
8-10 Bar
-
Power Supply:
-
110V/220V 1ph 220V/380V 3ph
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BATTLE-AXE corghi Tire Changer machine, Battle-Axe corghi Tire Changer machine
-
Model Number:
-
C233GC+DAA corghi Tire Changer machine
-
Warranty:
-
12 Months
-
tire changer function:
-
Tilt back column design
-
tire changer feature:
-
Low cabinet design.
-
tyre changer function:
-
Twins clamping cylinders.
-
outside clamping:
-
10-24
-
inside clamping:
-
12-26
-
Max wheel width:
-
14''
-
Max wheel diameter:
-
42''
-
Working Air Pressure:
-
8-10kgs
-
Bead breaker force:
-
2500kgf
1. Battle-Axe design double-structure cabinet.
2. High quality pressure tubing made in Japan.
3. Pneumatic tilt back arm design
1. Battle-Axe design double-structure cabinet.
2. High quality pressure tubing made in Japan.
3. Pneumatic tilt back arm design.
4. 8mm thick steel plate metal for tilt back arm seat.
5. Long protection sleeve with adjustable bolt.
6. Powerful pneumatically controlled assist arm for mounting and demounting tires.
7. Pneumatic center drop permits technician to easily center the rim onto the clamping jaws.
8. Power roller allows easy bead and rim lubrication plus assists mounting of run flat and low profile tires.
9. Design to change run-flat, low profile, alloy wheels and standard wheels and tires,
10. 360 degree assist arm design allows deals with different size of wheels and tires.
11 Table top bead blast system design inflat tire without extra work movement.
12. CE approved pressure tank.
13. Octagonal precision turntable.
| Model | C233GC+DAA |
| Outside Clamping | 10"-24" |
| Inside Clamping | 12"-26" |
| Max. Wheel Width | 14" |
| Max. Wheel Diameter | 42" |
| Working air pressure | 8 bar |
| Bead Breaker Force | 2500 kg |
| Max. Rotating Torque (Turntable) | 795 ft.lbs (1078N.m) |
| Noise Level | < 70 db |
| Shipping Weight | 450 kg |
| Voltage Options | 110V/50Hz/60Hz 1PH 220V/50Hz/60Hz 1 PH 380V/50Hz/60Hz 3 PH |
| Packing Size |
115*77*100cm/ 153*72*28 cm
|
