- Product Details
- {{item.text}}
Quick Details
-
Passage width:
-
55-60cm
-
pass speed:
-
30persons/min
-
IP Protection:
-
IP44
-
Weight:
-
40Kg
-
Working environments:
-
indoor /outdoor
-
Dimension:
-
420*330*990mm
-
Material:
-
304#stainless steel shell
-
thick of steel:
-
1.5mm
-
operating system:
-
automatic
-
Application:
-
Office School Park Supermark Subway
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
sctewell
-
Model Number:
-
RAP-ST213
-
Passage width:
-
55-60cm
-
pass speed:
-
30persons/min
-
IP Protection:
-
IP44
-
Weight:
-
40Kg
-
Working environments:
-
indoor /outdoor
-
Dimension:
-
420*330*990mm
-
Material:
-
304#stainless steel shell
-
thick of steel:
-
1.5mm
-
operating system:
-
automatic
-
Application:
-
Office School Park Supermark Subway
Product Description

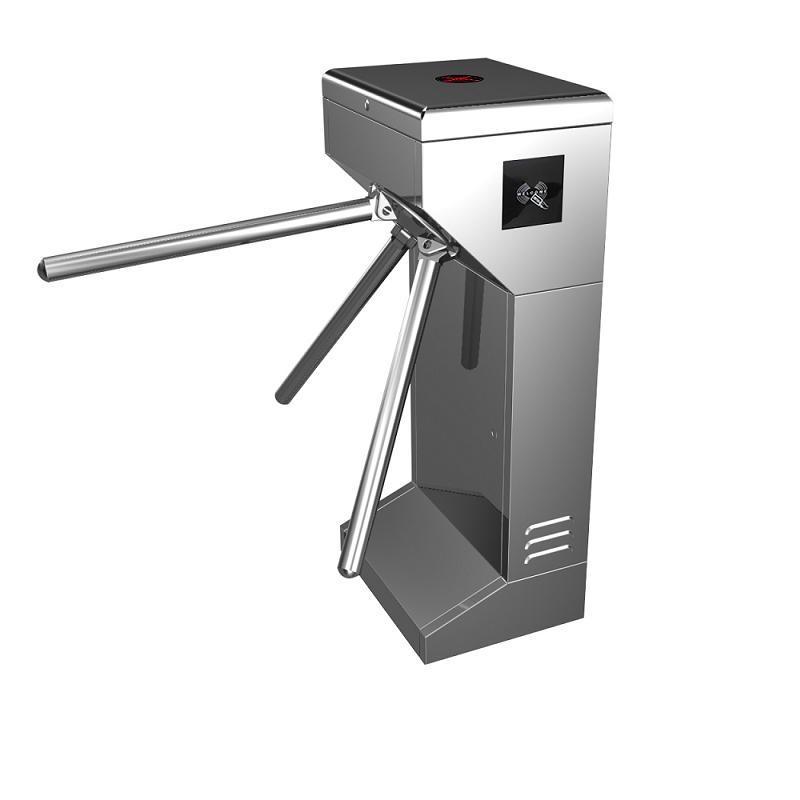

Security CE approved tTripod Turnstile Gate RFID Turnstile Barrier Door for Office Factory Gym Access Control
The turnstile provides a basic tripod to control access smoothly and effectively by basic
operation, and also prevent illegal in and out. The machine is well in design, rustproof, durable and can resist external destroy.
According to different machine centers, intelligent tripod turnstile can be divided into fully automatic tripod turnstile and
semi-automatic tripod turnstile.To Semi-automatic product, the arm can drop automatically when it is powered off. But when the power is turned on, the arm will be raised by hand.
operation, and also prevent illegal in and out. The machine is well in design, rustproof, durable and can resist external destroy.
According to different machine centers, intelligent tripod turnstile can be divided into fully automatic tripod turnstile and
semi-automatic tripod turnstile.To Semi-automatic product, the arm can drop automatically when it is powered off. But when the power is turned on, the arm will be raised by hand.
Specification
|
item
|
value
|
|
Brand Name
|
Roanpu
|
|
Model Number
|
RAP-ST213
|
|
Service
|
OEM&ODM service
|
|
Package
|
Wooden case
|
|
Production process
|
Laser cutting machine
|
|
Card reading window
|
Two
|
|
Power consumption
|
32w
|
|
Passage Width
|
550mm
|
|
Input
|
12v dry contact
|
|
Application
|
office building/commercial building/factory channel
|
|
Material
|
SUS304 Stainless Steel
|
|
Interface
|
standard port RS485
|
|
pass speed
|
30-40 people/min
|
|
weight
|
40 kg/pc
|
|
working voltage
|
AC220V±10%,50HZ±10%
|
Features＆Function
Rod sleeve design：
There is a red cylinder protective sleeve,
To protect the 3 pcs swing arm
SUS 304 framework
SUS304 framework, 1.5 mm thickness, Grinding / draw bench surface,hard-wearing quality.
Design accord to Body Engineering
Fixing screw add spring washer to prevent loosening,improve the Pit impact function。 Perfect heat Dissipation Structure ,firmware is good at anti-corrosion.
One way or two way swipe card，attractive appearance，antirust and durable.
Reinforce base design make the turnstile more solidly.
We specially add heat sink holes to heat dissipation and make the lifetime longer.
1.Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable.
2. Running stable, little noise and no mechanical impact
3. Self-checking-power-on function, if power on,turnstile will auto get to be held.
4. Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limits, or one direction card reading passing and another free passing, etc.
5. If power off, arm will fall automatically while power on later, arm should be lift by hand. First press the arm with a little
force and then lift it manually.
6. It is with RS 485 connection for far control arm up and down to satisfy the special needs or fire control requirements.
2. Running stable, little noise and no mechanical impact
3. Self-checking-power-on function, if power on,turnstile will auto get to be held.
4. Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limits, or one direction card reading passing and another free passing, etc.
5. If power off, arm will fall automatically while power on later, arm should be lift by hand. First press the arm with a little
force and then lift it manually.
6. It is with RS 485 connection for far control arm up and down to satisfy the special needs or fire control requirements.
7.
It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by computer.
The system can be used with:
Entrance&exit channel management of Station/teminal/tourist spots etc.
Ticket channel maganement of exhibition/swimming pool/etc
Attendance/access control/consumption entrance&exit management of enterprise
Our project
Applicable Scene
Application:
Package and shipping
Package details:
1.The wooden box is fumigated, inner is with carton package, protect machine not damage.
2. Packing in one wooden case Size:114*43*38 cm Weight:45KG
Delivery details:
2. Packing in one wooden case Size:114*43*38 cm Weight:45KG
Delivery details:
1.Transportation by air or by sea is support, according to customer require choose the best solution.
2. Payment:T/T in advance,western union,L/C
2. Payment:T/T in advance,western union,L/C
