NO.1
It has the features of easy operation and high accuracy.
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
none
-
Power:
-
1.1kw
-
Dimension(L*W*H):
-
800x900x1300mm
-
Input voltage:
-
380V/50HZ
-
Main Motor power:
-
1.1Kw
-
Saw cutting(W H):
-
160mm 120mm
-
Saw blade swing angle:
-
90~45
-
Main Motor rotation speed:
-
2840r/min
-
Repeat locating length:
-
≤0.05mm
-
Angle cutting tolerance:
-
±5'
-
Planeness of cutting surface:
-
≤0.10mm
-
Cutting profile surface roughness:
-
Ra 12.5Um
-
Overall dimension(LxWxH):
-
800x900x1300mm
Quick Details
-
Brand Name:
-
EWORLD
-
Voltage:
-
380V/50HZ
-
Weight:
-
260 kg
-
Production Capacity:
-
none
-
Power:
-
1.1kw
-
Dimension(L*W*H):
-
800x900x1300mm
-
Input voltage:
-
380V/50HZ
-
Main Motor power:
-
1.1Kw
-
Saw cutting(W H):
-
160mm 120mm
-
Saw blade swing angle:
-
90~45
-
Main Motor rotation speed:
-
2840r/min
-
Repeat locating length:
-
≤0.05mm
-
Angle cutting tolerance:
-
±5'
-
Planeness of cutting surface:
-
≤0.10mm
-
Cutting profile surface roughness:
-
Ra 12.5Um
-
Overall dimension(LxWxH):
-
800x900x1300mm

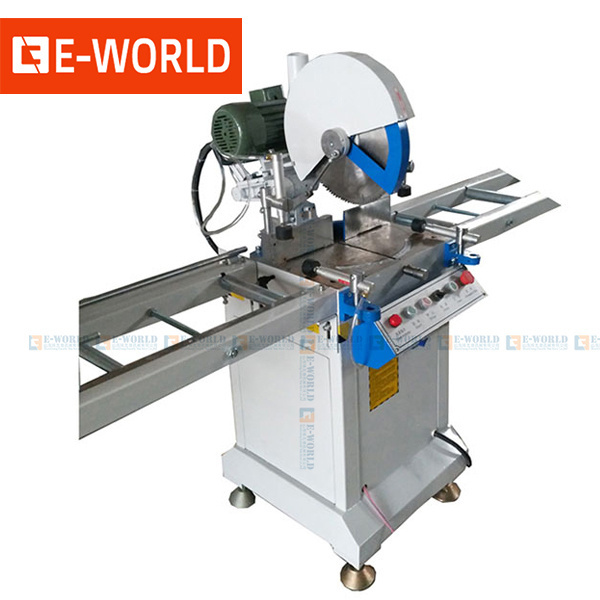

Inexpensive and fine Aluminum Profile Cutting Saw Machine Single Head Cutting Aluminum Window Door Machine
Products introduction
This machine is used for processing the aluminum and PVC/plastic profiles at angles of -45º ~90º ~45º , the swaying stable feeder is adopted, and the pneumatic driving system is used in profiles clamping and cutting. It has the features of easy operation and high accuracy.
Note: This cutting saw is mainly used in processing PVC/UPVC/plastic/Vinyl window door, it can make about 15-20 pieces windows doors per 8 hours.
|
Model
|
SSJ 06-3700
|
|
Power Supply
|
3 Phase
|
|
Operation Air Pressure
|
4~6 kgs
|
|
Cutting Motor Power
|
2 x 2HP
|
|
Motor Rotary Speed
|
2800 r/min
|
|
Air Consumption
|
200 L/min
|
|
Blade Specification
|
Φ450×4.0×3.5×30.0×120
|
|
Cutting Length
|
max3700mm / Min400mm
|
|
Cutting Width
|
max 120mm
|
|
Cutting Height
|
max 200mm
|
|
Cutting Angle
|
-45° - 90° - 45°
|
|
Cutting Angle Allowance
|
± 5'
|
|
Cutting Speed
|
0-3m/min
|
|
Cutting Profile Surface Planeness
|
≤ 0.1mm
|
|
Cutting Profile Surface Rougness
|
Ra 12.5µm
|
|
Contour Dimension
|
4500mm x 1100mm x 1400mm
|
|
Net/Gross Weight
|
1500 kgs / 1900 kgs
|
Its cutting way is from the backward to the forward cutting, and safe cutting.
This cutting saw can make about 25-35 windows per day in 8 working hours. If you extend the working time, the production out put will be more.
our service
After you choose the EWORLD machine ,
we offer you
lifetime
online coaching service !
Our Goal
Eworld Machine provides full set services and high-quality but low-price products.We are always looking for long term cooperaion,not one time deal.
*20years factory production experience
*3 years machine warranty
*156 exported country experience
*20000 square meters Glass machine&upvc windows machine factory
*About Shandong Eworld Machine Co.,Ltd
Shandong Eworld Machine Co.,Ltd is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment.
Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine in China.
Eworld group has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services .
Welcome to visit our factory!
If you have plan to come to China and see our machines, please contact us at least 15 days in advance,then we can arrange our schedule and arrange to treat you. No matter which transport method you choose, we will pick up you.If you have any questions, please feel free to contact us.
24*7, we always be here !
