Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ULURU
-
Model Number:
-
Y202
-
GPS chips:
-
*
-
Appearance size:
-
68.0X33.0X10.5mm
-
Current:
-
~ 60 mA (12 v DC) to 35 mA (24 v DC)
-
Band GSM:
-
850 MHz / 900 MHz / 1800 MHz / 1900 MHz
-
Speed precision:
-
0.1 m/s
-
GSM MODULE:
-
MTK
-
voltage:
-
9-40V
-
Weight:
-
35g
Quick Details
-
Positioning Mode:
-
GSM, GPS, GPRS, LBS, AGPS, Beidou, GLONASS, Real-Time Positioning, Emergency Positioning, Power Saving Mode
-
Function:
-
Fast Charging, Voice Monitor, street view, ACC Detection, Over-Speed Warning, Wheel Path Playback, Geofence
-
Data Storage:
-
Other, Cloud Storage
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ULURU
-
Model Number:
-
Y202
-
GPS chips:
-
*
-
Appearance size:
-
68.0X33.0X10.5mm
-
Current:
-
~ 60 mA (12 v DC) to 35 mA (24 v DC)
-
Band GSM:
-
850 MHz / 900 MHz / 1800 MHz / 1900 MHz
-
Speed precision:
-
0.1 m/s
-
GSM MODULE:
-
MTK
-
voltage:
-
9-40V
-
Weight:
-
35g
Product Features:
1.Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:9-40V DC.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status notifying.
6.Use relay to remote control the vehicle..
Alarm Types :
Vibration Alarm(Optional)
Collision / falling Alarm(Optional)
Speed Alarm
Geo-fence Alarm
Power disconnect Alarm
Function Extension:
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level)
Environment for use :
1.Limited working temperature:-20°C~80°C
2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Atmospheric pressure:86kPa~106kPa
5.Make sure the terminal is installed in rainproof
and snow-proof places.
6.Battery: 70MAh battery
Basic Specifications:
| Working Voltage: | 12VDC/24VDC |
| Standby Current | <3mA |
| Work current : | <120mA |
| GPS positioning accuracy | 15M |
| GSM positioning accuracy | 100M |
| GPS Frequency | 1575MHz |
| GSM Frequency : | 850/900/1800/1900MHz |
| Hot/warm/cold start time : | <1S,<35S,<45S |
| Dimensions (mm) : |
68.0X33.0X10.5 mm |
| Weight : | 35 g |
1. Voltage Optional
1) Input Voltage : 9-80v
Used widely for vehicle and other moving objects tracking: Electric vehicles, Motorcycles,Cars,Trucks.
2) Input Voltage : 9-40v
Cars,Trucks
2.Connect Cable Optional
1) 8pins cable
Connect Power cable, relay, SOS button, microphone

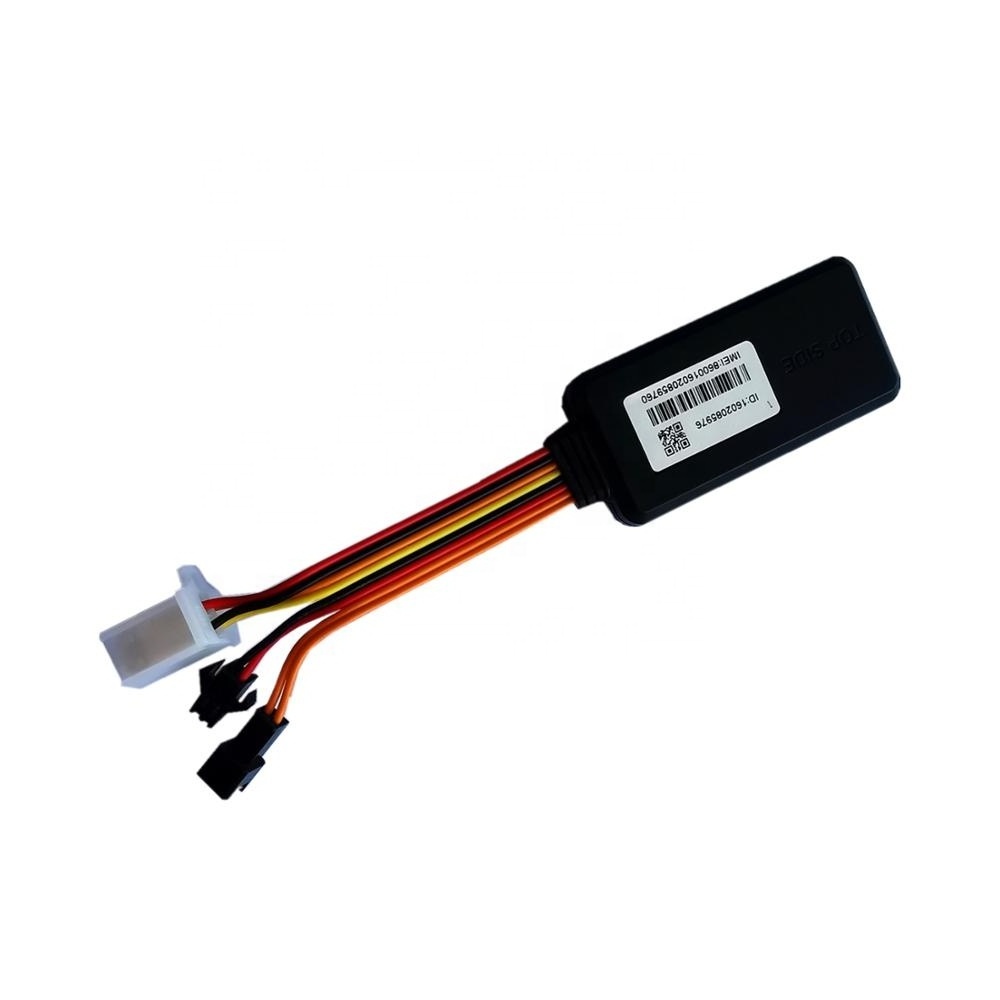

2) 4pins cable (Picture showed is 4 pin cable)
Connect Power cable, relay
