Quick Details
-
Warranty:
-
12months
-
Brand Name:
-
RONDA
-
Model Number:
-
2BV
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
1.5~20hp
-
Structure:
-
Water ring type
-
Cable Length:
-
1
-
Outlet Size:
-
1inch ~4inch
-
Power:
-
1.1~15kw
-
Customized product:
-
Available
-
Frequency:
-
50hz or 60hz are all available
-
Quick-wear part:
-
Impeller, seal, etc
-
Sealing:
-
Mechanical seal, packing seal, etc
-
Casing material:
-
Cast iron, stainless steel
-
Warranty of pump:
-
12 months
-
Warranty of quick-wear part:
-
3 months
-
Packing:
-
Plywood case
-
Shipment:
-
By sea, air, express, etc
-
Certification:
-
ce
Quick Details
-
Application:
-
Food and Beverage Industry, Industrial Utilities, Metal and Equipment Manufacturers, Pharmaceutical industry
-
Pressure:
-
Middle pressure
-
Voltage:
-
110v~480v, 220V, 240V, 380V, 400V, 415V, 440V, etc are all available
-
Warranty:
-
12months
-
Brand Name:
-
RONDA
-
Model Number:
-
2BV
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
1.5~20hp
-
Structure:
-
Water ring type
-
Cable Length:
-
1
-
Outlet Size:
-
1inch ~4inch
-
Power:
-
1.1~15kw
-
Customized product:
-
Available
-
Frequency:
-
50hz or 60hz are all available
-
Quick-wear part:
-
Impeller, seal, etc
-
Sealing:
-
Mechanical seal, packing seal, etc
-
Casing material:
-
Cast iron, stainless steel
-
Warranty of pump:
-
12 months
-
Warranty of quick-wear part:
-
3 months
-
Packing:
-
Plywood case
-
Shipment:
-
By sea, air, express, etc
-
Certification:
-
ce

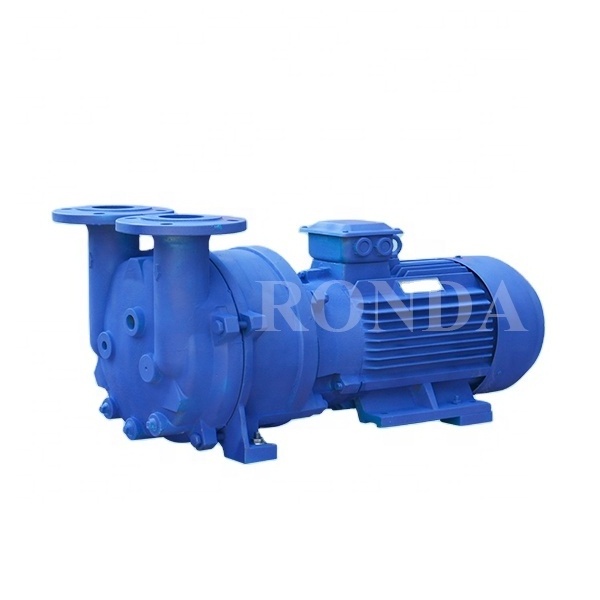

2BV china made electric industrial liquid ring vacuum pump
2BV china made electric industrial liquid ring vacuum pump
1. Liquid ring type structure & direct connect type design, high vacuum degree, easy to install and save space.
2. Used to pump air, vapour and other gas which is little corrosive, insoluble in water & with little solid.
3. Compressed gas is isothermal during the process, it is more secure for compressing and sucking flammable and explosive gas.
4. Widely used in food industry, textile industry, sugar industry, medicine industry, chemical industry, dipping, drying or other craft processes.
| Pumping capacity | 0.45~8.3m3/min |
| Limit vacuum pressure | 33mbar |
| Material | Cast iron, Stainless steel |
| Power Specs: | 1.1~15kw / 220~480V 3phase; 50hz/60hz |
| Model | Pumping capacity |
Ultimate vacuum
mbar(MPa) |
Water consumption
(L/min) |
Motor power
(KW) |
Speed
(r/min) |
Noise
(dB) |
|||
| m³/min | m³/h | ||||||||
| 2BV2060 | 0.45 | 27 |
33mbar
(-0.098MPa) |
2 | 1.1 | 2900 | 62 | ||
| 2BV2061 | 0.86 | 52 | 2 | 1.5 | 2900 | 65 | |||
| 2BV2070 | 1.33 | 80 | 2.5 | 2.35 | 2900 | 66 | |||
| 2BV2071 | 1.83 | 110 | 4.2 | 3.85 | 2900 | 72 | |||
| 2BV5110 | 2.75 | 165 | 6.7 | 4 | 1450 | 63 | |||
| 2BV5111 | 3.83 | 230 | 8.3 | 5.5 | 1450 | 68 | |||
| 2BV5121 | 4.66 | 280 | 10 | 7.5 | 1450 | 69 | |||
| 2BV5131 | 6.66 | 400 | 15 | 11 | 1450 | 73 | |||
| 2BV5161 | 8.33 | 500 | 20 | 15 | 960 | 74 | |||
| 2BV6110 | 2.75 | 165 | 6.7 | 4 | 1450 | 63 | |||
| 2BV6111 | 3.83 | 230 | 8.3 | 5.5 | 1450 | 68 | |||
| 2BV6121 | 4.66 | 280 | 10 | 7.5 | 1450 | 69 | |||
| 2BV6131 | 6.66 | 400 | 15 | 11 | 1450 | 73 | |||
| 2BV6161 | 8.33 | 500 | 20 | 15 | 960 | 74 | |||
