HC750 is a gigabit dual band 5G/4G LTE wifi router. It accesses the Internet through 5G/4G mobile communication dial-up or
1000Mbps WAN port, then shares the Internet network through dual band wireless and 1000Mbps wired LAN.
- Product Details
- {{item.text}}
Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
Huastlink
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
HC750
-
Main Chipset:
-
MTK7621 Dual Core Chipset
-
Flash:
-
16MB
-
RAM:
-
256MB
-
WiFi Transmission Standard:
-
802.11AC 1200Mbps
-
USB Port:
-
1 USB 2.0 Port
-
TF Slot:
-
1 Internal TF slot
-
Antenna:
-
6 External Antennas
-
Button:
-
1 Reset Button
-
Key Words:
-
1200Mbps 5G CPE Router
Quick Details
-
Max. LAN Data Rate:
-
867Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G & 5G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
Huastlink
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
HC750
-
Main Chipset:
-
MTK7621 Dual Core Chipset
-
Flash:
-
16MB
-
RAM:
-
256MB
-
WiFi Transmission Standard:
-
802.11AC 1200Mbps
-
USB Port:
-
1 USB 2.0 Port
-
TF Slot:
-
1 Internal TF slot
-
Antenna:
-
6 External Antennas
-
Button:
-
1 Reset Button
-
Key Words:
-
1200Mbps 5G CPE Router
Wifi802.11ax Gigabit Port M2 Interface Wifi 4g Router Dual Band 1800mbps Wifi6 5g Sim Card Router Hc750
Product Description
4*10/100/1000Mbps LAN ports
1*USB 2.0 port
1*Internal SD card slot
1*SIM slot
1*Mini PCIE/M.2 Slot for 5G/4G modem
2.4GHz+5.8GHz, 1200Mbps wifi rate
Antennas
6 external removable antennas, support install customer's antennas
Software
Preload openwrt firmware

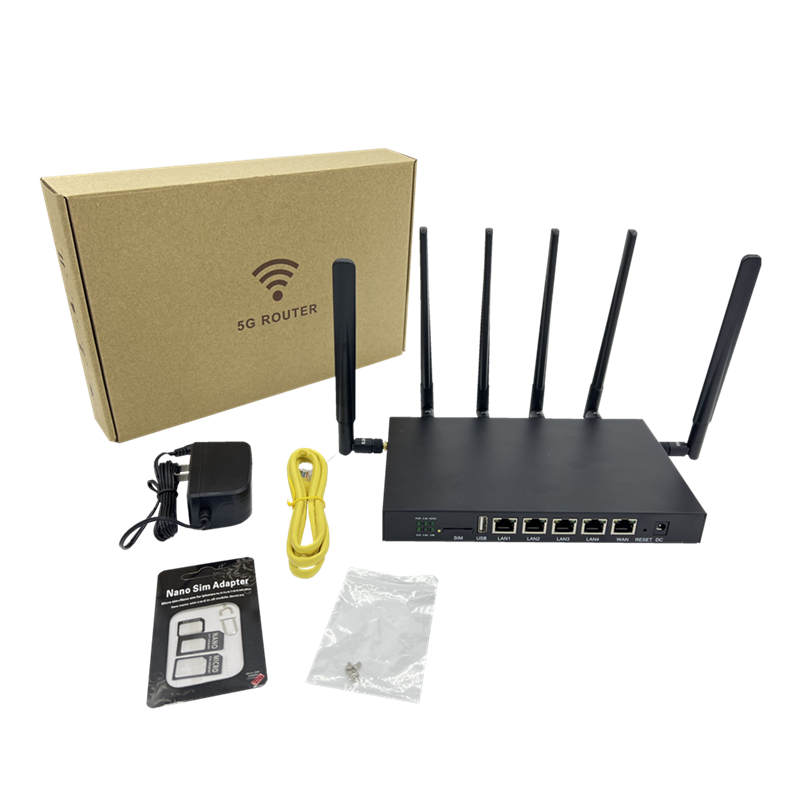

Packing List
1pcs*HC750 device
1pcs*SIM adapter
1pcs*RJ45 patch cable
1pcs*power adapter
* Using MT7621A scheme, MIPS dual-core CPU, the main frequency is up to 880MHZ
* MTK7612 and MTK7602, wifi rate up to 1200Mbps
* Using high-speed 256MB DDR3, with 16MB Nor Flash
* 1 Gigabit WAN port +4 Gigabit LAN ports
* Built-in M.2/Mini-PCIE standard interface (choose one of the two), which can be used to connect to 5G/4G mobile communication modules
* Built-in M.2/Mini-PCIE standard interface (choose one of the two), which can be used to connect to 5G/4G mobile communication modules
* External standard SIM card interface
Specification
|
Processor
|
MT7621A MIPS Dual Core CPU, 880MHZ main frequency
|
|
WIFI chipset
|
MTK7603+MTK7612E, IEEE 802.11n/g/b, max speed up to 1200Mbps
|
|
RAM
|
DDR3 256MB
|
|
Flash
|
Nor Flash 16MB
|
|
|
NAND Flash
|
|
Ports
|
1*10/100/1000Mbps WAN port( Support Auto MDI/MDIX)
IEEE 802.3/802.3u/802.ab |
|
|
4*10/100/1000Mbps LAN port((Auto MDI/MDIX)
IEEE 802.3/802.3u/802.ab |
|
SIM slot
|
Spring type SIM slot*1
|
|
Power adapter
|
DC5.0*2.1MM slot
|
|
Button
|
Reset button* 1
|
|
Antennas
|
2pcs*Onmidirectional External 5dbi 2.4G antennas
|
|
|
2pcs*Onmidirectional External 5dbi 5.8G antennas
|
|
|
2pcs*Onmidirectional External 5dbi 5G/4G antennas
|
Certifications
All of our products have passed
CCC, CE, FCC, ROHS
certificates, support different countries customer's needs.
