Quick Details
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1050*540
-
Panel Efficiency:
-
22%
-
Cell Efficiency:
-
23~25%
-
Panel size:
-
105*50*3MM
-
Net weight:
-
1.95kgs
-
certificate:
-
CE,ROHS,ISO9001/FCDC/PSE
-
Max current:
-
5.1A
-
Working voltage:
-
18V
-
Type:
-
Flexible
-
Warranty:
-
12months
-
Size:
-
125*125mm
-
Certificate:
-
CE,ROHS,ISO9001/FCDC/PSE
Quick Details
-
Cell size:
-
125mmx125mm
-
Brand Name:
-
Glory Solar
-
Model Number:
-
GSSP-100W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1050*540
-
Panel Efficiency:
-
22%
-
Cell Efficiency:
-
23~25%
-
Panel size:
-
105*50*3MM
-
Net weight:
-
1.95kgs
-
certificate:
-
CE,ROHS,ISO9001/FCDC/PSE
-
Max current:
-
5.1A
-
Working voltage:
-
18V
-
Type:
-
Flexible
-
Warranty:
-
12months
-
Size:
-
125*125mm
-
Certificate:
-
CE,ROHS,ISO9001/FCDC/PSE

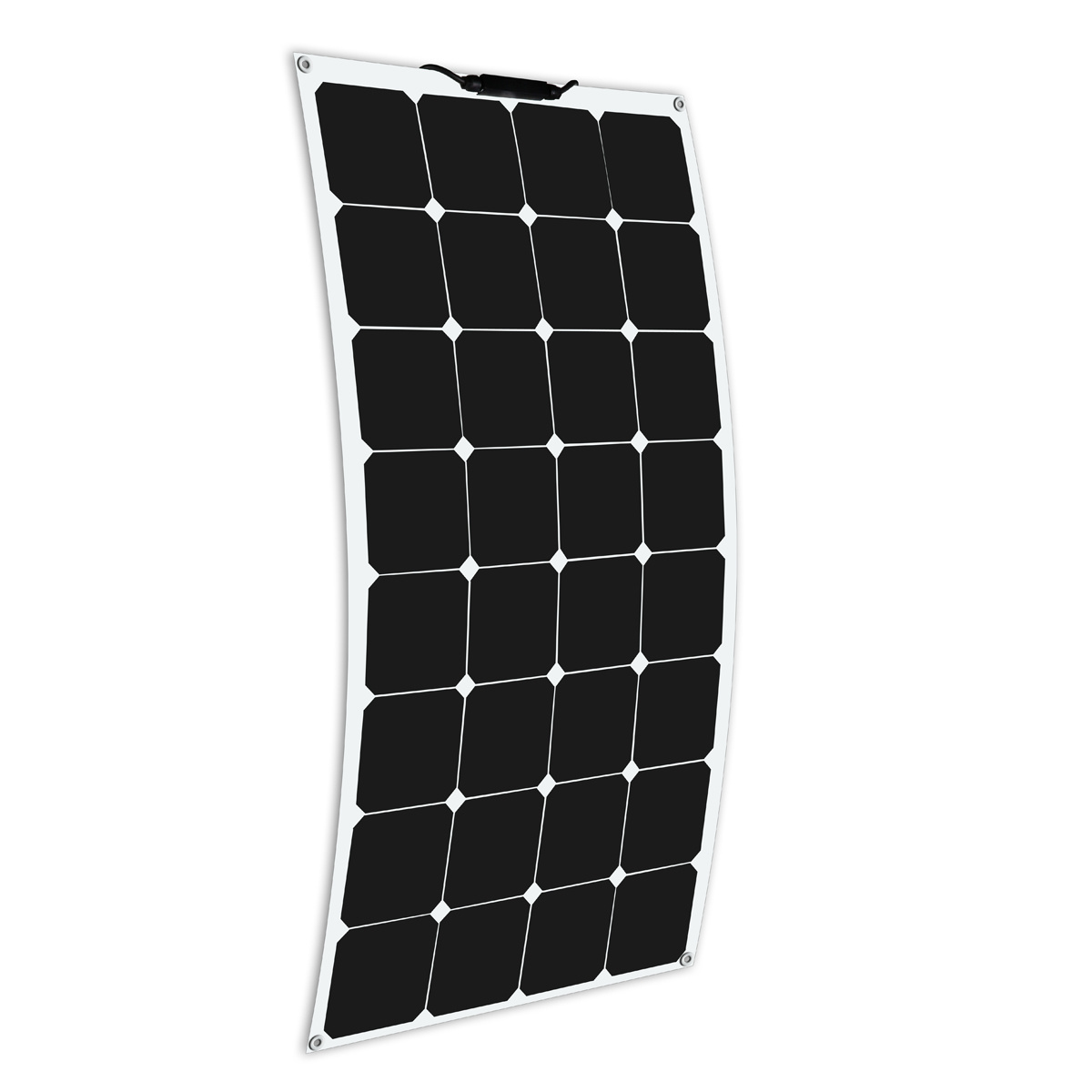

100 watts semi flexible solar panel
|
Specifications – Flexible series |
|
|||||
|
Item No. |
GSS-18W |
GSS - 5 0W |
GSS -1 0 0W |
GSS-150W |
GSS-200W |
|
|
Max power |
18 W |
5 0W |
100 W |
15 0W |
200W |
|
|
Power tolerance |
±3% |
±3% |
±3% |
±3% |
±3% |
|
|
Cells brand |
monocrystalline solar panel |
monocrystalline solar panel |
monocrystalline solar panel |
monocrystalline solar panel |
monocrystalline solar panel |
|
|
Cells efficiency(%) |
22 .5 % |
22 .5 % |
22 .5 % |
22 .5 % |
22 .5 % |
|
|
M ax voltage |
1 9.8V |
18V |
18V |
18 V |
18V |
|
|
Max current |
0.9A |
2.78 A |
5. 56 A |
8.34 A |
11.2 A |
|
|
Open circuit voltage(Voc) |
23.7V |
21.6V |
21.6V |
21.6V |
21.6V |
|
|
Short-circuit current(Isc) |
1.05A |
3.23A |
6.45A |
9.66A |
1 2.89A |
|
|
Dimension |
445x280x2.0mm |
555x540x2.0mm |
1050*540*2.0mm |
1080x780x2.0mm |
1515*675*2mm |
|
|
Weight |
0.4KGS |
1KGS |
1.95KGS |
2.95KGS |
3 .95KGS |
|
|
Operating Temperature( ℃ ): |
-40 ℃ ~+85 ℃ |
|||||
|
Power temperature coefficient |
-0.39 to -0.29 %/ ℃ |
|||||
|
Voltage temperature coefficient |
-0.29%/ ℃ |
|||||
|
Current temperature coefficient |
+0.05%/ ℃ |
|||||
