Quick Details
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Product name:
-
cold extrusion press machine
-
Application:
-
Steel
-
Type:
-
Fully Automatic
-
Power:
-
4kw
-
Color:
-
Customer's Request
-
Capacity:
-
300-400kg/h
-
Usage:
-
Building
-
Applicable rebar size:
-
16-32mm
-
Working stroke:
-
45mm
-
Machine weight:
-
120kg
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YG
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Product name:
-
cold extrusion press machine
-
Application:
-
Steel
-
Type:
-
Fully Automatic
-
Power:
-
4kw
-
Color:
-
Customer's Request
-
Capacity:
-
300-400kg/h
-
Usage:
-
Building
-
Applicable rebar size:
-
16-32mm
-
Working stroke:
-
45mm
-
Machine weight:
-
120kg
32mm aluminum extrusion press machine cold extruding machine for rebar
Cold extrusion connection is to be connected to both ends of steel bars are put on the sleeve, and then squeeze with squeeze clamp, the plastic sleeve deformation, the two reinforced together to form a tight connection of a mechanical connection.
Applicable scope: construction, reinforced concrete structure construction, high-rise frame construction, ordinary highway, expressway, ordinary railway, high-speed railway, tunnel, bridge, airport construction, flood control dam, seismic shockproof building, marine breakwater dam.
|

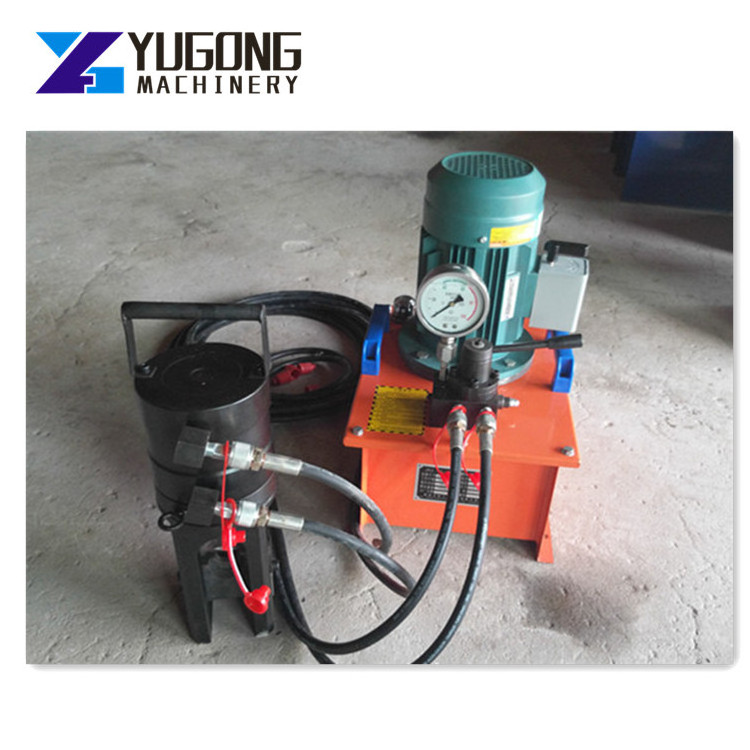

Steel bar cold extrusion press machine |
|
|
Model |
YGJY-32 |
|
Applicable rebar size |
Φ 16- Φ 32mm |
|
Working stroke |
45mm |
|
Pressure |
63Mpa |
|
Motor power |
4kw/380v |
|
Weight |
120kg |
|
Oil pump size |
800*600*800mm |
|
Squeeze clamp size |
500*170*200mm |
|
R ebar coupler |
||
|
Rebar diameter |
OD*length |
Weight |
|
16mm |
Φ 30*110mm |
0.28kg/pc |
|
18mm |
Φ 34*118mm |
0.38kg/pc |
|
20mm |
Φ 35*120mm |
0.48kg/pc |
|
22mm |
Φ 40*132mm |
0.68kg/pc |
|
25mm |
Φ 45*150mm |
1kg/pc |
|
28mm |
Φ 50*168mm |
1.47kg/pc |
|
32mm |
Φ 55.5*192mm |
2.03kg/pc |
Main features and advantages :
1.Strong intensity connector, stable and reliable; no specific requirements on the weld ability of the rebar.
2. Only needs 1-3m to stamp each connector, which is about ten times faster than ordinary welding.
3. Only 1-3KW power of oil pump, which not limited by power capacity, has flexible structure and suitable for operation on several machines.
YJ650 stamping equipment.
4. No flammable gases, not affected by rainy or cold weather.
5. Relieve congestion of the connecting point, facilitated concrete pouring.
6. No professional and experienced worker needed, able to connect changed steel bar of different diameters.
7. Save 80% of connector steel consumption.
Construction Site:
1. Packaging:
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
