We provide both a blade & Honeycomb table for laser engraving and cutting
- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Hubei, China
-
Dimension(L*W*H):
-
1425X1060X1240
-
Laser Head Brand:
-
Argus
-
Weight (KG):
-
300 KG
-
Laser Power:
-
RF30W, 55W
-
Focusing:
-
Auto Focus system
-
Worktable:
-
Aluminum Strip/Honeycomb Worktable
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Motor Drive:
-
Step Motor Drive System
-
Transmission Way:
-
Belt Transmission
-
Accuracy:
-
0.025mm
-
Worktable Function:
-
Up & Down Worktable
-
Working Size:
-
700X500MM
-
Certification:
-
ce/ISO
Quick Details
-
Engraving Area:
-
700X500mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
2000mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Hubei, China
-
Dimension(L*W*H):
-
1425X1060X1240
-
Laser Head Brand:
-
Argus
-
Weight (KG):
-
300 KG
-
Laser Power:
-
RF30W, 55W
-
Focusing:
-
Auto Focus system
-
Worktable:
-
Aluminum Strip/Honeycomb Worktable
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Motor Drive:
-
Step Motor Drive System
-
Transmission Way:
-
Belt Transmission
-
Accuracy:
-
0.025mm
-
Worktable Function:
-
Up & Down Worktable
-
Working Size:
-
700X500MM
-
Certification:
-
ce/ISO
ARGUS laser engraving cutting machines include many high-end design elements that give our machines superior speed, accuracy, reliability, and service life.

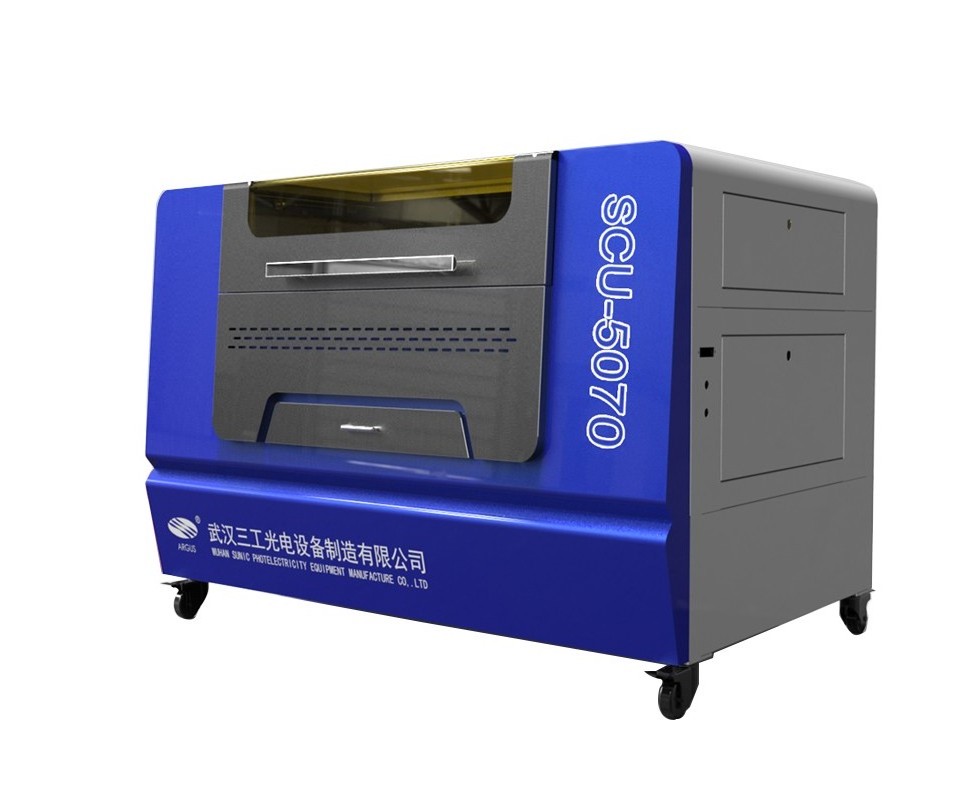

Equipment Performance 5070
1.Design for processing Non-metallic materials, Cutting&Engraving.
2.Max engraving speed can reach 2000mm/s, accuracy and stable.
3.Strong cutting capacity ensure the working efficiency, Max Cutting thickness can reach 10mm(Acrylic)
3.Provide rotary device as optional configuration for engraving on Bottle, Goblet, Vases, Pipe,etc
4.
With High processing accuracy and the processing accuracy can reach 0.02 mm
5.Red positioning laser for previewing cutting and engraving settings
6.
Glass tube life can reach 10000Hours , R F.metal laser tube available
7.
The stepper motor guarantees cutting and engraving smooth.
|
Model
|
SCU4030/SCU5070/SCU1060/SCU1390/SCU1610
|
|
Working Platform Size
|
400*300mm/700*500mm/1000*600mm/1300*900mm/1600*1000mm
|
|
Laser Power
|
60w/80w/100w/130w/150w
|
|
Origin Setting(Red Pointer)
|
Red Light Pointer: 650nm
|
|
Controlling System
|
RDCAM
|
|
Table Type
|
Aluminum Strip or Honeycombe Worktable
|
|
Table Height Adjustment
|
8cm--20cm Adjustable
|
|
Software Format Support
|
CorelDraw, Photoshop, AutoCAD, etc
|
|
Graphic Format Support
|
AI, PLT, BMP, DXF, DST, T100, etc
|
|
Max Cutting Speed
|
500mm/s
|
|
Max Engraving Speed
|
2000mm/s
|
|
Repeated Positioning Accuracy
|
±0.2mm
|
|
Min. Cutting Character
|
English Letter: 3mm
|
|
Max. Cutting Depth
|
0-15mm(it’s up to the material)
|
|
Cooling Ways
|
Circulation Water Cooling
|
|
Working Temperature
|
0-35°C
|
|
Working Power
|
220V/50Hz/60Hz/2kVA, 110V/50Hz/60Hz/2kVA
|
|
Packing Dimension
|
2280*1600*1230mm
|
Our CO2 laser engraving cutting machines offer a solution for high-quality engraving and cutting of acrylics, cardboard, wood, textiles, two-color sign laminate, stone, and much more. Our laser machines are the most robust, accurate, and reliable on the market.
Choice of Support Tables
Control Software
Friendly software, enabling the import of files: plt, ai, bmp, dxf, dst, having many useful functions, defining work values assigned to a given line color (cutting, engraving, laser speed and power).
Visible Red Dot Pointer
S
ince the CO2 laser beam is invisible, the red dot pointer on the 5070X allows you to have a visual reference for locating where the laser will fire.
Unique Module Structure
The unique module structure is formed in one time assembly to avoid to manually assemble，m
ore accuracy；
Keep A axis and Y axis both 90°for 7-10 years
Linear Guide Rail
Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, reduce wear to maintain accuracy for a longer time
High Performance Motors
Stepper motor is in high precision, high speed, large torque, performance is stable and durable, ensure the high speed operation
of the whole machine
of the whole machine
Pass-through Door
Pass-through front to rear doors
Pass-through front to rear doors
Yongli Glass Tube
High quality laser beam，
Easy to change and
Long life span 12,000hrs
Advertising industry
trophies, authorization card, dual color plates, acrylic etc
Decoration Industry
acrylic fabric wood etc,engraving and cutting
Printing Industry
rubber, printed version
Packaging Industry
wine box, tea packing box etc.
Office Industry
menus, recipes, tender, invitations, personalized business cards etc
Gift Industry
glass cup, bamboo etc, crafts Processing
ABOUT SUNIC GROUP
Wuhan Sunic Group is a professional laser machines and solar panel products lines equipments manufacturer since 1998. We are specialized in Design, R&D, Manufacture, Sales and Service for laser machines.
We supply customized solution for different materials processing , such as Invitation cards, Wedding cards, Pop up cards, Pop up books , Candy box , Paper products, Acrylic , PMMA, LGP, Jeans Wash, Leather, Fabric, Textiles , Wood , MDF , Laminate materials , Marble, Package Film, Metal / Plastic products, etc.
Our laser equipments are widely used in Solar PV production, IC Component Production, Leather&Garment Industry, Advertising Signs, Decoration crafts, Equipment spare parts, Daily hardwares, Measurement tools, Medical instruments, Printing&packing industries, etc. Sunic Group would like to be customer's technical laser and solar equipment consultation and support for further development and progress together
What kind of laser machine and model should I choose?
You can tell us your processing material, work size, and detail requirements, and carry out detailed work through pictures or videos so that we can judge whether our machines can meet your needs
What kind of materials does the laser machine can process?
We have different laser machines, such as fiber laser, Co2 laser, UV laser, green laser. Typically fiber lasers can process metals and plastics. Co2 lasers are used to process non-metallic materials, such as acrylic, wood, glass, leather, jeans, paper, textile clothing, etc. Ultraviolet lasers and green lasers are also called cold laser sources, they are usually used in plastics, glass,crystal, and some special processing work.
Is it easy to operate?
We will send you an English manual and guide video, we can teach you how to operate the machine. If you still can't learn how to use it, we can help you with the Team Viewer online help software. Or we can talk by phone email or other contact methods.
What s your guarantee. in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be,according to the client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault
How will you do the after- sale service?
We will firstly check your problems online through Teamviewer,E-mail, Whatsapp or other contact way, if it is easy to handle it,we will guide you onlinet to fix it or send you the spare parts for replacement.
