Quick Details
-
Power:
-
as per customer requirement
-
Dimension(L*W*H):
-
as per customer requirement
-
Applicable Industries:
-
Foundry
-
Weight (KG):
-
5000
-
After-sales Service Provided:
-
Free spare parts
-
Voltage:
-
as per customer requirement
-
Weight:
-
as per customer requirement
-
Certification:
-
ISO9001:2008 /CE /BV
-
Feature:
-
High efficiency and Economical
-
Price:
-
Cost-effective
Quick Details
-
Place of Origin:
-
Shandong, China
-
Machine Type:
-
casting Production line
-
Brand Name:
-
HengLin
-
Power:
-
as per customer requirement
-
Dimension(L*W*H):
-
as per customer requirement
-
Applicable Industries:
-
Foundry
-
Weight (KG):
-
5000
-
After-sales Service Provided:
-
Free spare parts
-
Voltage:
-
as per customer requirement
-
Weight:
-
as per customer requirement
-
Certification:
-
ISO9001:2008 /CE /BV
-
Feature:
-
High efficiency and Economical
-
Price:
-
Cost-effective

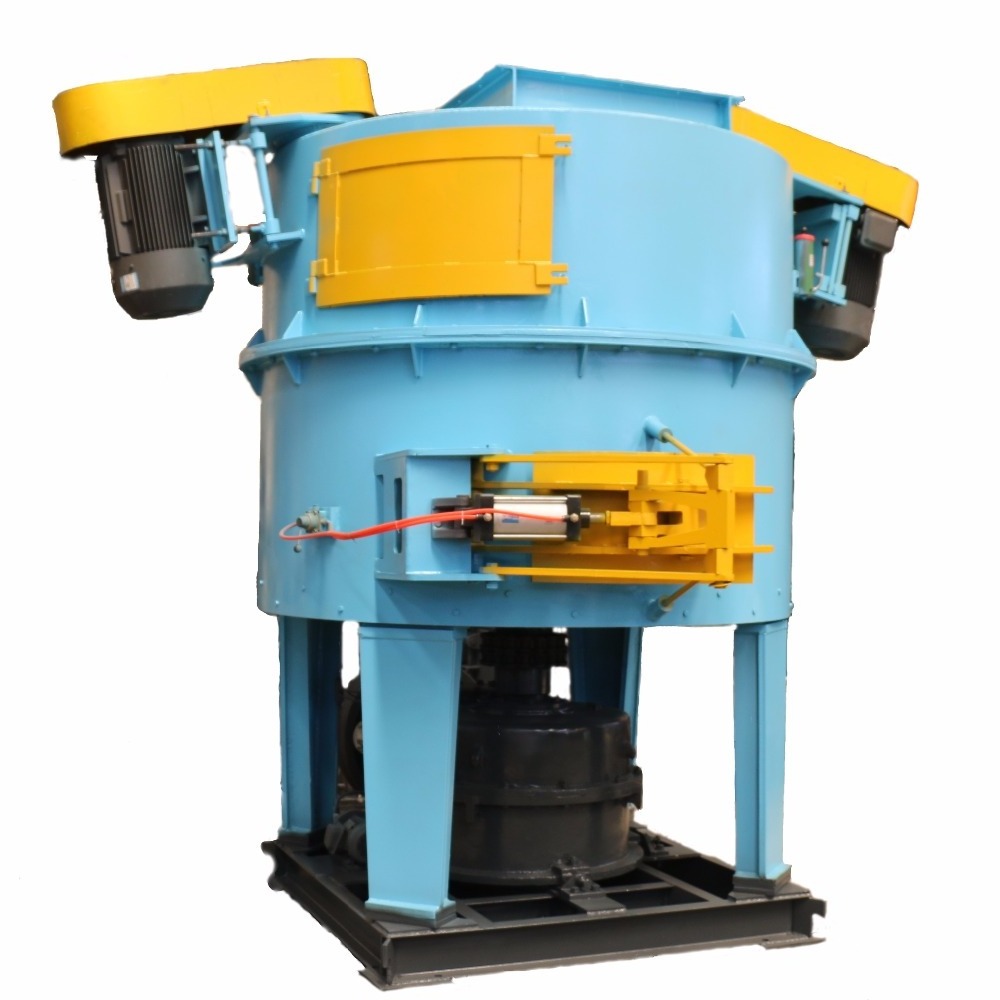

We can supply customized rotor/rotator sand mixing machine according to customer requirements
Rotator mixer is mainly used for mixing molding sand and clay sand.It is specially fitting to mix the molding sand.It also can be used for mixing self-hardening resin sand and core sand.When its working,the plow in lower speed pushed the sand in pan to form rotational motion,the rotor blades in medium speed exert either impact force to molding sand or shear force with plow to make impact and mixing. The details as following.
1)It is equipped with low-speed scraper with the best combination of rotor speed.It has the advantage of strong mixing capacity.
2)It is equipped with diabase cast stone, tungsten carbide surfacing, fillers and other new materials, greatly improving the life of wearing parts.
3)It is equipped with latest rotary discharge door which can open flexible and completely solved the problem of sand drain at the bottom.
4)It is equipped with symmetric access door that can be opened conveniently for maintenance and cleaning.
|
Type
|
GS20-55
|
GS20-75
|
GS22-90
|
GS25-110
|
GS25-132
|
GS28-200
|
|
Disc Diameter(mm)
|
∅2000
|
∅2000
|
∅2240
|
∅2500
|
∅2500
|
∅2850
|
|
Productivity(t/h)
|
20-28
|
25-32
|
35-40
|
40-50
|
50-60
|
60-80
|
|
Main Motor Power(kw)
|
55
|
75
|
90
|
110
|
132
|
200
|
|
Rotor Motor Power(kw)
|
2x30
|
2x37
|
2x45
|
2x45
|
2x55
|
2x55
|
|
Spindle Speed(r/min)
|
31.72
|
31.72
|
27.32
|
27.3
|
27.32
|
25.4
|
|
Rotor Speed(r/min)
|
1270
|
1270
|
975
|
950
|
950
|
850
|
we are unique
1.We have the most complete range of Casting machinery which include Shot blasting equipment, jolt squeeze sand molding machine,multi-piston static pressure sand casting machine, core shooting machine, dust collector, sand conditioning line, Vacuum Process Casting line, Lost Foam Casting Line, Horizontal and Vertical Flaskless Automatic Production Line.
2.All product R&D and manufacture by ourself,all processing is under control.
3.We track the whole process from sales to installation and using.
Trust us and we won't let you down
1.Highest quality of our products following CE, ISO 9001 and Strict Production Guideline standard.
2.Competitive Price we offer.
3.Our after-sale service level is second to none.
4.Our equipment is designed and constructed with our customer's safety as a top priority.
5.OEM&ODM service to meet all your requirements.
