Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
380V/50Hz
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
RUIYE
-
Dimension(L*W*H):
-
880x760x1800mm
-
Weight:
-
270 KG
-
product name:
-
liquid sachet water packing machine
-
filling product:
-
liquid water juice sauce
-
filling volume:
-
50-500ml
-
filling speed:
-
2000-2200bags/hour
-
Function:
-
Filling Sealing Forming
-
After-sales Service:
-
Provided
-
packing film:
-
plastic
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Beer, Milk, Water, Juice
-
Filling Accuracy:
-
99%
-
Voltage:
-
380V/50Hz
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
RUIYE
-
Dimension(L*W*H):
-
880x760x1800mm
-
Weight:
-
270 KG
-
product name:
-
liquid sachet water packing machine
-
filling product:
-
liquid water juice sauce
-
filling volume:
-
50-500ml
-
filling speed:
-
2000-2200bags/hour
-
Function:
-
Filling Sealing Forming
-
After-sales Service:
-
Provided
-
packing film:
-
plastic
Product Description

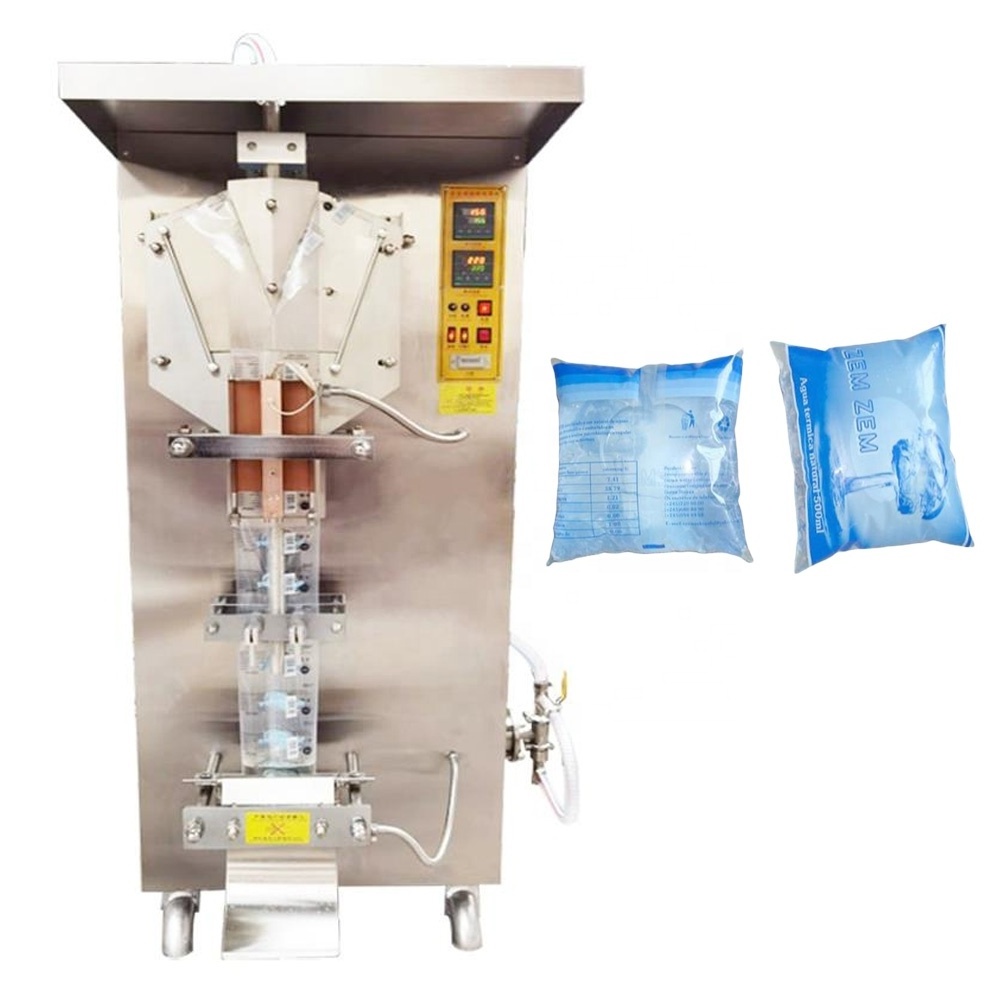

It is the automatic liquid water juice sauce sachet filling packing machine, it is widely used to pack drinking water, soybean
milk, sauce, vinegar, wine, juice, different kind of liquid with plastic film. It can complete the packing processes
automatically, such as bag making, quantitative, filling, sealing, cutting, counting, coding, etc. it can also be customized
according to customer requirements.
Features:
1. Frame and Liquid Contact parts are 304 stainless steel, the sanitation is guaranteed.
2. Film output system: Composed of 304 stainless steel sliding rail plate.
3. Electrical control system: Composed of control panel, wiring, and the AC contactor system.
4. it can be matched with UV sterilizer.
5. The temperature of heat-sealing is controlled automatically, the production is beauty and fastness.
milk, sauce, vinegar, wine, juice, different kind of liquid with plastic film. It can complete the packing processes
automatically, such as bag making, quantitative, filling, sealing, cutting, counting, coding, etc. it can also be customized
according to customer requirements.
Features:
1. Frame and Liquid Contact parts are 304 stainless steel, the sanitation is guaranteed.
2. Film output system: Composed of 304 stainless steel sliding rail plate.
3. Electrical control system: Composed of control panel, wiring, and the AC contactor system.
4. it can be matched with UV sterilizer.
5. The temperature of heat-sealing is controlled automatically, the production is beauty and fastness.
|
Model
|
XFLY-1000
|
XFLY-2000
|
|
Bag Length(mm)
|
50-150
|
50-250
|
|
Bag Width(mm)
|
40-150
|
40-175
|
|
Film Width(mm)
|
100-320
|
100-380
|
|
Packing capacity(ml)
|
50-500
|
200-1000
|
|
Capacity(bags/hour)
|
2000-2200
|
1100-1300
|
|
Power (Kw)
|
220V,380v/50 Hz 1.6Kw
|
220V,380v/50 Hz 2.5Kw
|
|
Overall Size (mm)
|
880x760x1800
|
1050x850x2050
|
|
Weight (KGS)
|
270
|
380
|
