Quick Details
-
Certification:
-
ce
-
Type:
-
Fail-secure Power to open
-
Version:
-
fail-locked / fail-unlocked
-
Holding force:
-
1600Lbs(800kg)
-
Rated Operating Voltage:
-
DC 12V
-
Optional Functions:
-
Lock Status Sensors
-
Material:
-
Stainless Steel
-
Suitable for:
-
Wooden & Aluminum & Glass & Fireproof &Metal door
-
Strike Plate Dimensions(L x W x D):
-
124L*32W*36H(mm)
-
Feature:
-
low power low temperature
-
CE / Rohs-mark for building:
-
YES
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Nordson
-
Model Number:
-
NJ-320A-S
-
Certification:
-
ce
-
Type:
-
Fail-secure Power to open
-
Version:
-
fail-locked / fail-unlocked
-
Holding force:
-
1600Lbs(800kg)
-
Rated Operating Voltage:
-
DC 12V
-
Optional Functions:
-
Lock Status Sensors
-
Material:
-
Stainless Steel
-
Suitable for:
-
Wooden & Aluminum & Glass & Fireproof &Metal door
-
Strike Plate Dimensions(L x W x D):
-
124L*32W*36H(mm)
-
Feature:
-
low power low temperature
-
CE / Rohs-mark for building:
-
YES

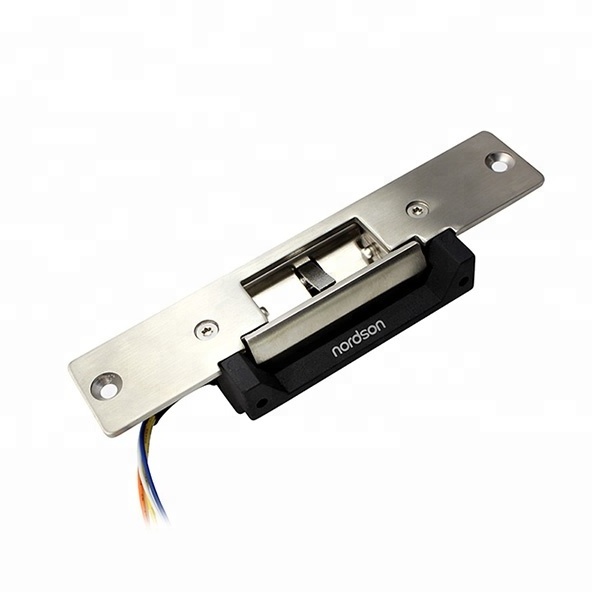

ANSI standard Heavy Duty strike plate installation electric door strike 12v 24v with Signal
NJ-320A-S is heavy-duty-type ANSI standard electric strike lock with feedback signal output.It works with magnetic force generated by electromagnetic field for locking/unlocking,particularly with short circuit protection. This model has 2 working modes:Power-to-open & Power-to-lock.It is made of high-quality stainless steel for high hardness, corrosion resistance & anti-deformation.It is suitable for all types of wooden door, metal door, PVC door etc.
| Version |
NJ-320A-S:Fail-locked(the strike is locked when the current is off)
NJ-320B-S:Fail-unlocked(the strike is unlocked when the current is off) |
| Shear strength | 1600Lbs(800kg) |
| Lock Status Sensors | Dry contact,NO/NC/COM |
| Rated Operating Voltage | DC 12V |
| Standby Current | 220mA |
| Optional Functions | Lock Status Sensors |
| Face place material | Stainless Steel |
| Surface Temp | Low Temperature |
| Ambient temperature in °C | -10°C - +55°C |
| Suitable for | Wooden & Aluminum & Glass & Fireproof &Metal door |
| Strike Plate Dimensions(L x W x D) | 124Lx32Wx36H(mm) |
| Weight in kg | 0.38kg |
| CE-mark for building | YES |
| Rohs-mark for building |
YES
|
1.Pass 1600lbs super linear static thrust test
2.Mode option:Fail-unlocked/Fail-locked
3.Suitable for ANSI standard for US Market
4.Direct installation on Wooden,PVC,metal door frame with mounting hole
5.Pass test of high temperature aging 100,000 times
6.Made of high-quality stainless steel for high hardness,corrosion resistance & anti-deformation
7.Strike trough 15mm deep,Widely used with all kinds of mechanical lock.
8.CE Certificate & MA Certificate approved
| Type | Fail-secure Power to open |
| Function | signal |
| Holding force | 1600lbs |
| Material | stainless steel plate |
| Feature | low power low temperature |
- For product quality issues brought by external irresistible factors, NORDSON provides 3 years warranty for electromagnetic lock; 3 years warranty for access control panel, electric bolt and electric strike; 1 year warranty for biometric machines, exit button, bracket, and power supply.
- For product damage brought by other reasons, customer shall take the consequences by himself.
- Nordson Electronic Co., Limited was founded in 2006, and now we are one of the most professional and comprehensive providers of access control solution in China.
- Nordson’s products sell and be agent in more than 100 countries and regions,such as USA, EU, Middle East, Southeast Asia, Australia, Brazil, India, Russia etc.. Besides, Nordson provides OEM and ODM services also. Nordson’s products are widely used in business institutions, government agencies,residential communities,universities,etc.
NORDSON is relentless in the pursuit of the latest technologies, the highest quality standards and in delivering the best user experience possible.We distribute an extensive and finest access control products to our world-wide customers. So far, Nordson has over 30 distributors in the world .We promise to provide them with the best products & services at any time, any where.
Unique Nordson,Extraordinary Nordson!
• We regard quality as life and build our own brand of Made-in-China.
• We Care, 90% Reorders after Trial Order!
• We Care, 80% Performance from Regular Customers!
• We Care, Delivery on time rate above 99%!
• We Care, Strive to Achieve Zero Defect and Zero Complaint!
• We Care, Product Green Design, Protect the environment!
