Quick Details
-
Dimension(L*W*H):
-
1660*890*1630mm
-
Weight (KG):
-
380 kg
-
Product name:
-
Self Loading Stacker
-
Power type:
-
Electric Power
-
Load capacity:
-
1000kg
-
Lifting height:
-
1.3m/1.5m
-
Battery type:
-
Lithium Battery
-
Color:
-
Green
-
Working Time:
-
4-5h
-
Controller:
-
USA CURTIS Controller
-
Brand:
-
JINGEER
-
OEM:
-
Acceptable
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JINGEER
-
Dimension(L*W*H):
-
1660*890*1630mm
-
Weight (KG):
-
380 kg
-
Product name:
-
Self Loading Stacker
-
Power type:
-
Electric Power
-
Load capacity:
-
1000kg
-
Lifting height:
-
1.3m/1.5m
-
Battery type:
-
Lithium Battery
-
Color:
-
Green
-
Working Time:
-
4-5h
-
Controller:
-
USA CURTIS Controller
-
Brand:
-
JINGEER
-
OEM:
-
Acceptable

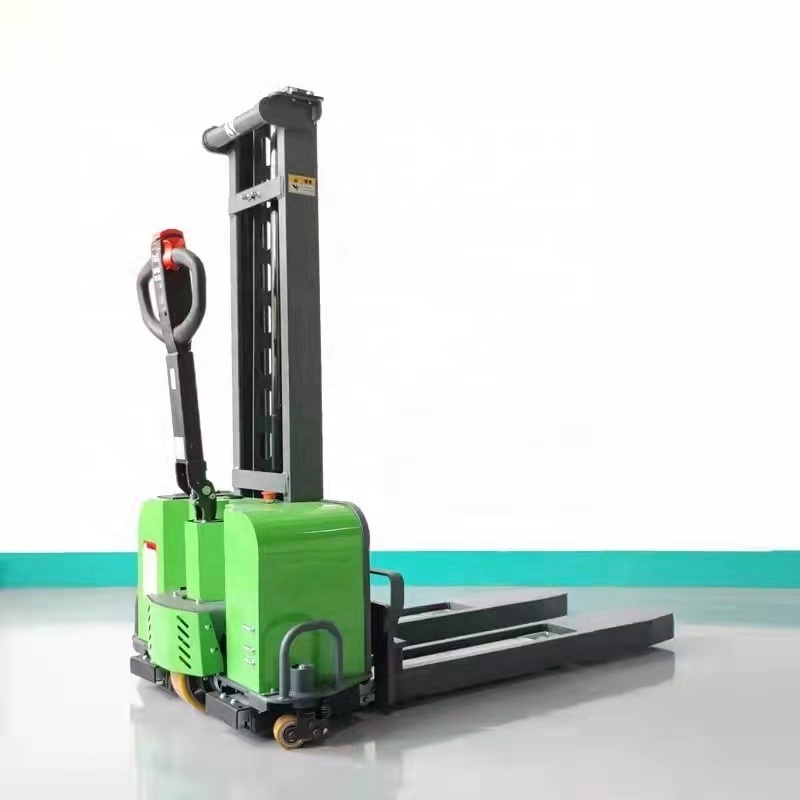

Hot Selling 1000KG Self Lifting Stacker Lithium Battery Full Electric Self Loading Stacker
Product Description
The front end of the fork adopts a balanced design. When there is no cargo load, you can still get it on and off from the truck.
Specification
|
Model
|
|
JG-13
|
JG-15
|
|
Capacity
|
kg
|
1000
|
1000
|
|
Load center
|
mm
|
400
|
400
|
|
Maximum lifting height
|
mm
|
1300
|
1500
|
|
Overall length
|
mm
|
1660
|
1660
|
|
Overall width
|
mm
|
890
|
890
|
|
Mast lowered height
|
mm
|
1630
|
1830
|
|
Max. height
(mast lifted with backrest)
|
mm
|
2880
|
3080
|
|
Wheelbase
|
mm
|
995
|
995
|
|
Fork length
|
mm
|
1200
|
1200
|
|
Fork outside width
|
mm
|
630
|
630
|
|
Fork inside width
|
mm
|
240
|
240
|
|
Fork thickness
|
mm
|
70
|
70
|
|
Minimum ground clearance
|
mm
|
30
|
30
|
|
Fork lowered height
|
mm
|
80
|
80
|
|
Minimum turning radios
|
mm
|
1300
|
1300
|
|
Rated output
|
Kw
|
0.75
|
0.75
|
|
Battery
|
V/Ah
|
24/48
|
24/48
|
|
Weight
|
kg
|
380
|
390
|
Product Details
Fork with safety signs, more safe operation, safe area must be inside the truck, don't exceed the yellow warning line!
The whole vehicle adopts the double linkage electric-hydraulic system of big brand, which has great force, strong stability, low failure rate and longer service lift.
Lithium battery draw-out design, which can sapre multiple sets of battery solutions, one charge and another one use take turns to replace work.
All electric self loading stacker increase the mode switching design, which can switch the manual low-speed forward and backward.
The bottom of the support leg is designed with pulleys, making it easier to enter and exit the truck.
Thickened balance forks, more stable loading and unloading, and stronger carrying capacity!
OEM Service
We provide
OEM service, such as
color customization, size customization, LOGO customization,
to meet all your needs!
Packing & Delivery
Multiple sets with wooden case
Strong fumigation-free wooden cases
With normal pallet and cadboard
We provide conventional pallet packaging or custom wooden box packaging, all according to your needs to ensure that the product in good condition to your hands!
We have a long-term cooperation of professional freight forwarders, can ship goods by
sea, land or air
to any place in the world you specify!
