Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FSC
-
Model Number:
-
QS610
-
Features:
-
HD TV
-
Product Name:
-
Scart DVB-T2 USB Digital terrestrial HD TV Receiver H.264 Mpeg4
-
Bandwidth:
-
6 / 7 / 8MHz
-
USB interface:
-
USB2.0 decoding
-
Video standard:
-
MPEG-4 AVC/H.264
-
Power input specification:
-
90-260v AC 8W maximum
-
Video resolution:
-
576i, 576p, 720p, 1080i, and 1080p coaxial: rcax1
-
Audio standard:
-
ISO / IEC 14.496-3, AAC, AAC+
-
Warranty:
-
1 Year
-
Certification:
-
ce
Quick Details
-
Processor Core:
-
Quad Core
-
Support Resolution:
-
1920 x 1080
-
WiFi:
-
802.11ac
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FSC
-
Model Number:
-
QS610
-
Features:
-
HD TV
-
Product Name:
-
Scart DVB-T2 USB Digital terrestrial HD TV Receiver H.264 Mpeg4
-
Bandwidth:
-
6 / 7 / 8MHz
-
USB interface:
-
USB2.0 decoding
-
Video standard:
-
MPEG-4 AVC/H.264
-
Power input specification:
-
90-260v AC 8W maximum
-
Video resolution:
-
576i, 576p, 720p, 1080i, and 1080p coaxial: rcax1
-
Audio standard:
-
ISO / IEC 14.496-3, AAC, AAC+
-
Warranty:
-
1 Year
-
Certification:
-
ce

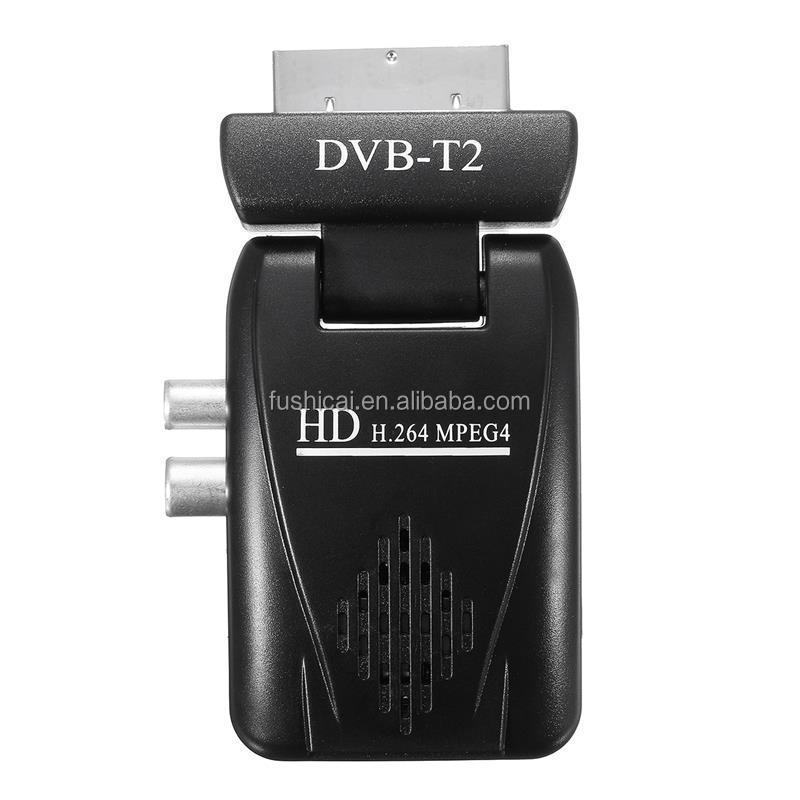

Mini mpeg4 h264 SD Scart HD dvb-t digital tv terrestial receiver
Model: QS610
USB2.0: upgrade or PVR through USB 2; DVB-T2 transmitters; MPEG4 and H.264; Multilingual: support
Suitable: Russian and Eastern European markets
Product features
The features of the newly designed high-definition MPEG 4SCART DVB T2
1.1080p Full HD DVB T2 TV box
2.DVB T2 TV box
3.USB 2, HDMI
4. support USB PVR, multimedia
5.CE and RoHS
Warranty for 6 to 12 months
The newly designed high-definition MPEG 4 Mini SCART DVB T2 specification
The powerful multimedia function of the main function
Fully support DVB-T2 / T, HD MPEG 2, MPEG4, HD h.2641080i, 1080p, images: JPEG, BMP, PNG
Multimedia playback HDMI, DVB-T standard and high definition audio output: WMA, MP3, AAC (WMA, MP3, M4A, etc.)
Automatic and manual scanning of all available TV and broadcast channels: MPEG1, MPEG2, MPEG4 video, H264,
Vertical and horizontal ratio 16:9 And 4:3 JPEG format (AVI, mpg, DAT, VOB, div, MOV, MKV,... MJPEG, TS, tryptophan)
HDMI, CVBS, coaxial output NTFS, FAT32, FAT16
Picture / audio combined playback
Support multilingual subtitle output
Powerful and efficient 7 day EPG function demodulation:
Supporting standards for graphic television receivers: terrisal DVB-T2 / T (EN 302755 and EN 300744)
Lock QPSK, 16QAM, 64QAM
The PVR preparation function is corrected by the forward error of the USB 2, time shift function: 1 / 2,2 / 3,3 / 4,4 / 5 / 6,
Multimedia playback through the protection interval of USB 2: 1,1/4,8,1 / 16,1 / 128
Store up to 1000 programs and keep memory, power off FFT mode: 2K, 8K, 32K
Tuner signal separator
Nmi836 standard ISO/IEC 13818-1; ARIB stb-b10
If input frequency: VHF / UHF:: 174mhz - 230MHz 474mhz - 860MHz input maximum rate: 120mbps (serial) / 15Mbps (parallel)
Bandwidth: 6 / 7 / 8MHz
Input level: - 83dbm hardware interface
Signal input: IEC index: power, signal lock
Infrared receiver: 38kHz
USB interface: USB2.0 decoding
MPEG transport stream and A/V decode LED display
Video standard: MPEG-4 AVC/H.264 horsepower @ L4 HDMI 1.3
SCART video CVBS, RGB model (European ring output: standard type, connector, single tuner
Length to width ratio: SCART 1 of 4:3,16:9 TV
Video resolution: 576i, 576p, 720p, 1080i, and 1080p coaxial: rcax1
Audio standard: , power input specification: 90-260v AC 8W maximum
Audio mode: single channel, double channel, stereophonic sound
