Quick Details
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V/50/60HZ
-
Power:
-
19.5KW
-
Weight:
-
2600 kg
-
Marketing Type:
-
zxm9325c glass straight line edging machine
-
Product name:
-
9 motors zxm9325c glass straight line edging machine
-
Min glass size:
-
80*80mm
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online Support
-
Function:
-
Glass Grinder Edging Polishing
-
Application:
-
Glass Industry
-
Color:
-
Customers' Request
Quick Details
-
Machine Type:
-
Glass Edging Machine
-
Glass Thickness:
-
3-19mm
-
Production Capacity:
-
100%
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V/50/60HZ
-
Power:
-
19.5KW
-
Weight:
-
2600 kg
-
Marketing Type:
-
zxm9325c glass straight line edging machine
-
Product name:
-
9 motors zxm9325c glass straight line edging machine
-
Min glass size:
-
80*80mm
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online Support
-
Function:
-
Glass Grinder Edging Polishing
-
Application:
-
Glass Industry
-
Color:
-
Customers' Request

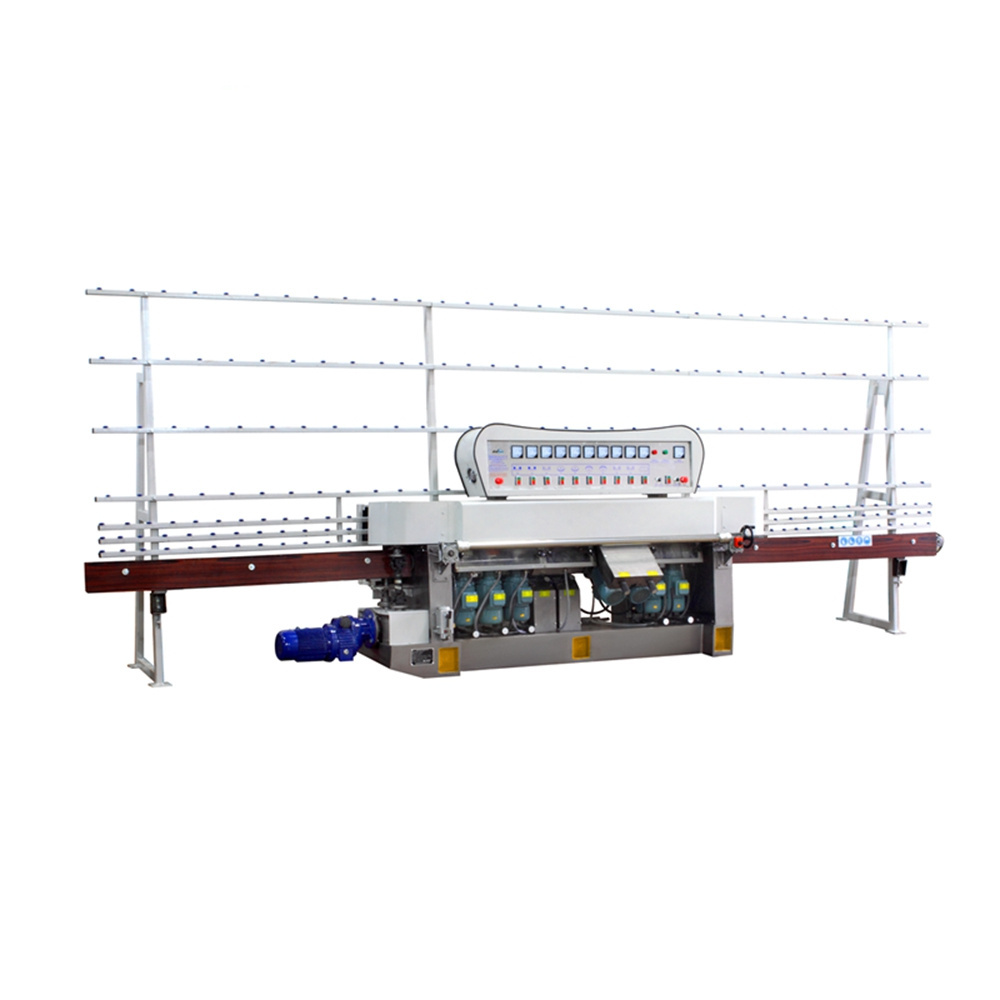

9 motors glass edger machine zxm9325c glass straight line edging machine
Product Description
Glasino Glass Straight Line Edging Machine, glass polishing machine
is Designed For Grinding Straight Line Flat Edging Of Different Sizes And Thickness. Coarse Grinding ,Refine Grinding, Polishing And Angle-Making Can Be Completed In One Time .
Features:
1. Suitable for grinding flat glass with straight line rounded edge or duckbilled edge etc.
2. Which use nine wheels grinding the surrounding, the coarse grinding, fine grinding and polishing can be finished at one time.
3. Working speed and working load can be adjusted smoothly by continuously variable mechanism transmission,
4. Adjust front rail to match different glass thickness.
5. It is easy to operate and has good performance.
|
Voltage
|
Power
|
Glass thickness
|
Min size
|
|
380v/50Hz
|
17.5kw
|
3-25mm
|
80x80mm
|
|
Feeding speed
|
Weight of machine
|
Overall Size(LxWxH)
|
|
|
0.5-5m/min
|
2600kg
|
6300x1000x2500mm
|
|
Machine Detail Picture Reference
Beams are heavy duty cast steel, annealing treatment. Stable, will never deformation and Ensure high process precision.
Use CNC grind machine grind beams, provide high process
Famous and durable Chinese motors or ABB motor for option
High quality glass grind wheels.
High quality conveyor belts/ glass rack rollers, no damage on glass!
Easy to operating
Working Samples
Packing & Delivery
We will use PE film cover the machine, and add the metal pallet, or can use the plywood case, then loading to the container.
