Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NANJIANG
-
Model Number:
-
WFD-550
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
16.5*8*3m
-
Weight:
-
24 KG
-
After-sales Service Provided 1:
-
Engineers available to service machinery overseas
-
COLOR:
-
DARK BLUE
-
After Warranty Service 1:
-
Video technical support
-
After Warranty Service 2:
-
Field maintenance and repair service
-
After-sales Service Provided 2:
-
Online support
-
After-sales Service Provided 3:
-
Video technical support
-
After-sales Service Provided 4:
-
Free spare parts
-
After-sales Service Provided 5:
-
Field installation, commissioning and training
-
After-sales Service Provided 6:
-
Field maintenance and repair service
-
Certification:
-
CE Certificate
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Paper
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NANJIANG
-
Model Number:
-
WFD-550
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
16.5*8*3m
-
Weight:
-
24 KG
-
After-sales Service Provided 1:
-
Engineers available to service machinery overseas
-
COLOR:
-
DARK BLUE
-
After Warranty Service 1:
-
Video technical support
-
After Warranty Service 2:
-
Field maintenance and repair service
-
After-sales Service Provided 2:
-
Online support
-
After-sales Service Provided 3:
-
Video technical support
-
After-sales Service Provided 4:
-
Free spare parts
-
After-sales Service Provided 5:
-
Field installation, commissioning and training
-
After-sales Service Provided 6:
-
Field maintenance and repair service
-
Certification:
-
CE Certificate
It can produce variable sizes paper bag and paste paper handle inline for completely paper bags without any manual process. The machine automatic paper fed from roll, tube forming, cut-off, bottom forming, bottom glue, bag forming and final bag output. All steps are completed in-line; this machine is an idea equipment for Twist & Flat handle square bottom paper bag. It is the quintessence both of home and abroad.

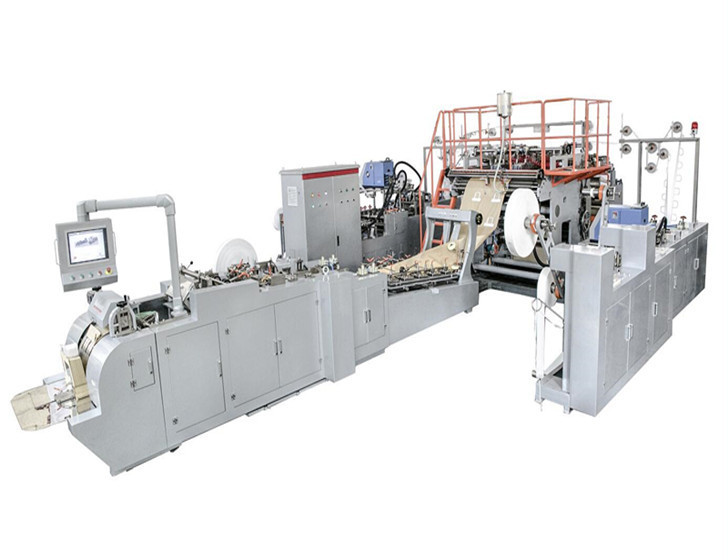

WFD- 55 0 Fully Automatic Roll Fed Paper Bag with Twisted & Flat Handle Machine
|
Machine Model |
WFD-550 |
|
Paper Roll Width |
630-1 50 0mm |
|
Paper Bag Width ( if without handle ) |
220-550 mm (190-550 mm) |
|
Paper Tube Length ( if without handle ) |
330-620mm (330-750 mm) |
|
Bag Bottom Width |
80-250 mm |
|
Paper Thickness ( if without handle ) |
10 0-1 5 0 gsm (80-1 5 0 gsm) |
|
Max. Roll material diameter |
1200 mm |
|
Material Core Diameter |
76mm(3″) |
|
Length of twisted rope (customizable) |
155-175 mm |
|
( Diameter of Twisted Rope ) Size of Flat Belt |
4-6 mm 10-15 mm |
|
Handle Patch Length |
190 mm |
|
Handle Patch Width |
35-50 mm |
|
Handle patch Roll Diameter |
1000 mm |
|
Paper Patch Roll Width |
70-100 mm |
|
Paper GSM for Handle patch |
110-250gsm |
|
Max. Speed |
120 Bags/min. |
|
Total Power |
42KW |
|
Machine Weight |
23000KG |
|
Machine Dimension (L*W*H) |
16500 x 55 00 x 2600 mm |
Services Terms:
A. Installation and training are done by our technician(s) at buyer’s factory.
Buyer should send an invitation letter for visa application.
The return flight tickets, accommodation & traffic expenses and service fees at USD100/day/person shall be borne by the buyer.
B. Seller provides 2 years Guarantee period, all spare parts free of charge in one year time.
C. After sale services and component replacement
During the period of quality guarantee, we supply the spare part in free for replacement.
D. Packaging
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
E. Delivery time
Within 90 days after receive 30% advance payment.
F. Payment terms
30% by T/T as advanced payment, 70% by T/T or irrevocable L/C at sight before shipment(After inspection).
