Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SMALLBOSS
-
Model Number:
-
606
-
Product name:
-

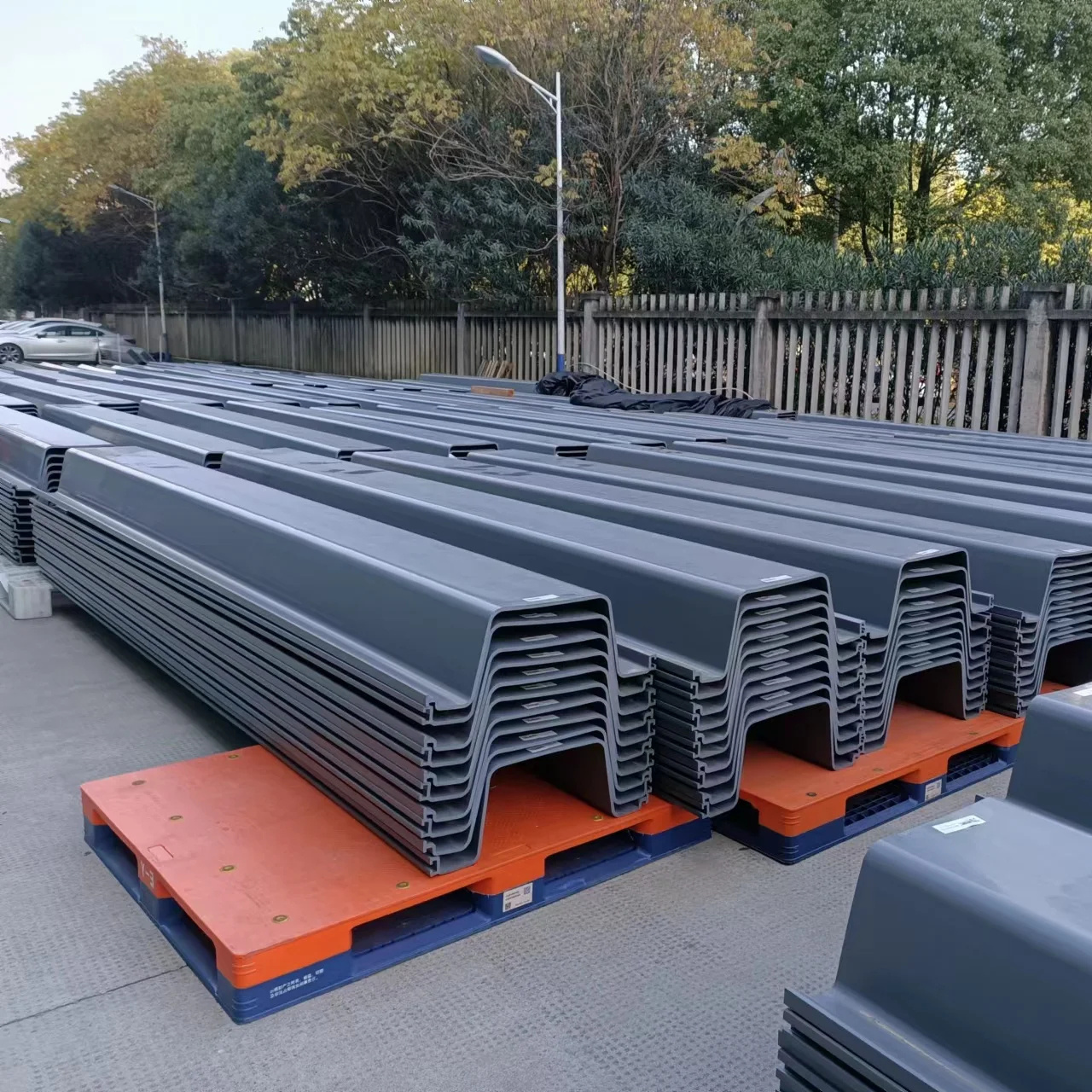

PVC sheet pile
-
Application:
-
Baffle walls for water or waste water flow control
-
color:
-
Grey Green or others
-
Material:
-
PVC
-
Section width:
-
606mm
-
section depth:
-
230mm
-
length:
-
3m 5m 8m 10m
-
thickness:
-
9mm
-
Certificate:
-
ISO9001/RoHS
-
MOQ:
-
100m
Quick Details
-
Grade:
-
PVC
-
Standard:
-
ASTM
-
Tolerance:
-
±1%
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SMALLBOSS
-
Model Number:
-
606
-
Product name:
-
PVC sheet pile
-
Application:
-
Baffle walls for water or waste water flow control
-
color:
-
Grey Green or others
-
Material:
-
PVC
-
Section width:
-
606mm
-
section depth:
-
230mm
-
length:
-
3m 5m 8m 10m
-
thickness:
-
9mm
-
Certificate:
-
ISO9001/RoHS
-
MOQ:
-
100m
|
Material
|
pvc
|
|
|
||
|
Width
|
606 mm
|
|
|
||
|
Section depth
|
230 mm
|
|
|
||
|
Length
|
Customization
|
|
|
||
|
Thickness
|
8--9 mm
|
|
|
||
|
Package
|
Customization
|
|
|
||
|
Color
|
Grey/customization
|
|
|
||
|
Weight
|
15±1 kg/m
|
|
|
||
|
Moment of inertia
|
20438 cm4/m
|
|
|
||
|
Section modulus
|
1546cm3/m
|
|
|
||
|
Ultimate moment
|
7153 kg-m/m
|
|
|
||
|
Tensile Strength
|
40.35 Mpa
|
|
|
||
|
Flexural Strength
|
70.5 Mpa
|
|
|
||
|
Modulus of Elasticity
|
2358 Mpa
|
|
|
||
|
Notched Izod impact
|
2.22 Kg/cm
|
|
|
||
|
Heat Deflection Temperature
|
63℃
|
|
|
||
