Quick Details
-
Brand Name:
-
HongShi
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1.7*1.7*1.3m
-
Weight:
-
1000 kg
-
Capacity:
-
1-3T/H
-
Application:
-
making feed pellets
-
Final pellet size:
-
1-10mm
-
Raw material:
-
corn,wheat,sawdust,wheat bran,fish powder,etc
-
Usage:
-
Poultry farm,livestock farm,individual farm,etc
-
Ring die diameter:
-
250/350/420/508mm
-
Spare parts:
-
ring die and press roller
-
material moisture:
-
10-15%
-
mould type:
-
ring die
Quick Details
-
Max. Capacity:
-
1ton/h
-
Applicable Industries:
-
Feed processing plant
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HongShi
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1.7*1.7*1.3m
-
Weight:
-
1000 kg
-
Capacity:
-
1-3T/H
-
Application:
-
making feed pellets
-
Final pellet size:
-
1-10mm
-
Raw material:
-
corn,wheat,sawdust,wheat bran,fish powder,etc
-
Usage:
-
Poultry farm,livestock farm,individual farm,etc
-
Ring die diameter:
-
250/350/420/508mm
-
Spare parts:
-
ring die and press roller
-
material moisture:
-
10-15%
-
mould type:
-
ring die
1000kg/h Capacity Ring Die Animal Feed Pellet Mill Machine
Description of Animal Feed Pellet Mill Machine
The animal feed pellet mill machine can make different pellet size by changing the die mould.It is widely used in family and farm.The raw materials can be corn powder, maize,soybean pulp, grass meal, fish powder,etc. The compressed feed pellet is healthier for poultry and livestock, such as chicken, duck, fish, pig, horse, cattle, sheep, etc.
Features of Animal Feed Pellet Mill Machine
• The feed pellets are with high density, smooth and clean surface.
• Formation rate: 98% High capacity,Low investment.
• Auto lubricate system: continuous work and high efficiency.
• Stainless steel Roller and ring die mould, extender machine service life.
• Low energy consumption and easy operation.
• Siemens motor,SKF bearing.
Technical parameter of Animal feed pellet mill machine
|
Model |
Main engine power (kw) |
Capacity (t/h) |
Feeder power (kw) |
Conditioner power (kw) |
Ring Die Dia. (mm) |
Pellet size (mm) |
|
HXJX250 |
30 |
1-2 |
1.5 |
2.2 |
Φ250 |
Φ1.0-12 |
|
HXJX350 |
55 |
2-5 |
1.5 |
2.2 |
Φ350 |
Φ1.0-12 |
|
HXJX420 |
110 |
3-15 |
1.5 |
4 |
Φ420 |
Φ1.0-12 |
|
HXJX508 |
132/160 |
5-20 |
1.5 |
5.5 |
Φ508 |
Φ1.0-12 |

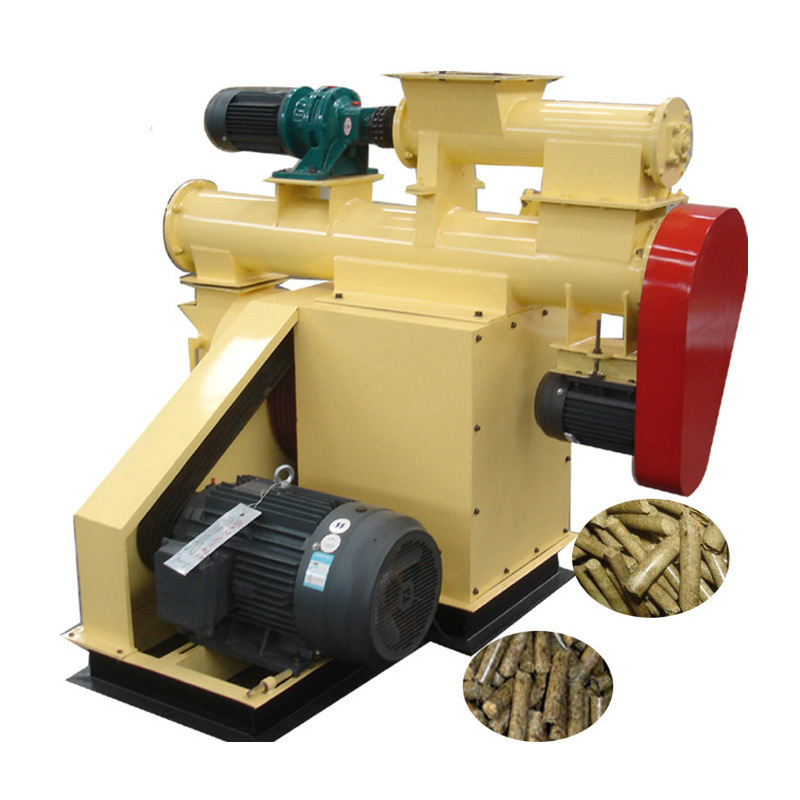

Animal feed pellet mill machine
Finished pellets of Animal Feed pellet machine
•Standard package
•Safety logistics
•Good service of after sales
•Customs clearance documents
•We can supply good quality machines with spare parts
•Suitable transport(shipment, express, air transportation )
