Quick Details
-
Brand Name:
-
FENGYU
-
Model Number:
-
8800
-
DY flow meter type::
-
Integrate or remote type
-
Connection Size::
-
400mm
-
Connection style::
-
Flange ANSI, DIN, JIS
-
Shedder Bar material::
-
Stainless Steel, or others
-
DY flow meter signal output::
-
Hart, Foundation Fieldbus,
-
Approvals::
-
ATEX, FM, IECEx
-
Power supply::
-
24V DC
-
Certification:
-
IECEE
Quick Details
-
Type:
-
Variable Area Water Flowmeters
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
FENGYU
-
Model Number:
-
8800
-
DY flow meter type::
-
Integrate or remote type
-
Connection Size::
-
400mm
-
Connection style::
-
Flange ANSI, DIN, JIS
-
Shedder Bar material::
-
Stainless Steel, or others
-
DY flow meter signal output::
-
Hart, Foundation Fieldbus,
-
Approvals::
-
ATEX, FM, IECEx
-
Power supply::
-
24V DC
-
Certification:
-
IECEE

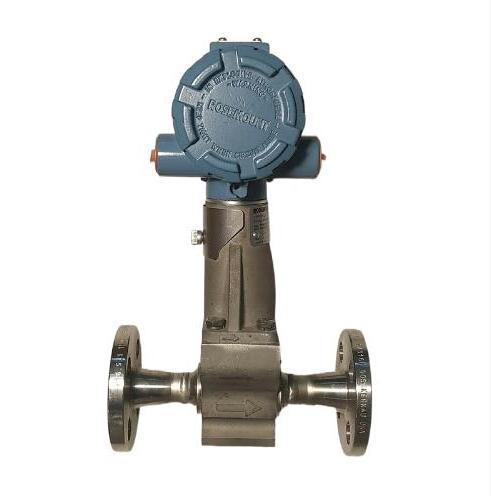

Emerson 8800d Vortex Flow meter flow transmitter
Rosemounter 8800d Vortexx Flowmeters allow you to achieve better measurement practices across your applications by eliminating potential leak points, incorporating gasket-free meter body designs that are immune to vibration, and enabling best installation practices with the Reducer™ Vortexx
By building the reducers into the meter, the Reducer Vortex can measure lower flows than any other Vortexx meter.
Product type : Emerson 8800d Vortex Flow meter flow transmitter
Meter style : W = Wafer style
Line size : 015= 1 1/2-in. (40 mm)
Wetted materials : S = 316 wrought stainless and CF-3M cast stainless. Note: Material of construction is 316/316L
Flange or alignment ring size : A1 = ASME B16.5 (ANSI) RF Class 150
Sensor process temperature range : N = Standard: -40 to 450°F (-40 to 232°C)
Conduit entry : 1 = 1/2 -14 NPT – Aluminum Housing
Outputs : D = 4-20 mA digital electronics (HART protocol)
Calibration : 1 = Flow calibration
Hazardous locations certifications : K5 = US Approvals Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Non-Incendive
Display type : M5 = LCD indicator
Transient protection : T1 = Transient Protection terminal block
Weight : 3.5 Kg
Shipping weight : 5 Kg
| Key Specifications Emerson 8800d Vortex Flow meter flow transmitter | |
| Flowmeter Accuracy | ± 0.65 % of rate for liquids (±1.00% for line size 6-in (150 mm) and greater) ± 1% of rate for gas and steam (±1.50% for line size 6-in (150 mm) and greater) |
| Turndown | 38:1 |
| Output |
|
| Wetted Material | Stainless Steel - 316/316L and CF3M Nickel Alloy - C-22 and CW2M Consult factory for other wetted material options |
| Flange Options | ANSI Class 150 to 900 DIN PN 10 to PN 160 JIS 10K to 40K Flanges are available in a variety of facings |
| Operating Temperatures | -330°F to 800°F (-200°C to 427°C) |
| Line Size | Flanged - 1-in to 12-in (25 to 300 mm) |
