Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Industrial
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Qiqian
-
Model Number:
-
A,B,C
-
Product name:
-
Galvanized Steel Grating clamp Fixing Clips
-
Material:
-
Stainless steel316/304,steel,mild steel
-
Color:
-
Silver
-
Surface treatment:
-
Hot Dipped galvanized,untreated
-
Height:
-
25mm/30mm/32mm/35mm/40mm/50mm
-
Type:
-
A-type, B-type, C-type
-
Bearing bar spacing:
-
30mm, 40mm, 60mm
-
Cross bar pitch:
-
50,100mm
-
Brand name:
-
Qiqian
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Office Building
-
Design Style:
-
Industrial
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Qiqian
-
Model Number:
-
A,B,C
-
Product name:
-
Galvanized Steel Grating clamp Fixing Clips
-
Material:
-
Stainless steel316/304,steel,mild steel
-
Color:
-
Silver
-
Surface treatment:
-
Hot Dipped galvanized,untreated
-
Height:
-
25mm/30mm/32mm/35mm/40mm/50mm
-
Type:
-
A-type, B-type, C-type
-
Bearing bar spacing:
-
30mm, 40mm, 60mm
-
Cross bar pitch:
-
50,100mm
-
Brand name:
-
Qiqian
Galvanized Steel Grating clamp Fixing Clips Anti-corrosion metal card clips fasteners for steel grating
Details
| Type of saddle clips | Proper grating specifications | ||
| A-20 | B-20 | C-20 | Bearing bars at 20mm pitch |
| A-25 | B-25 | C-25 | Bearing bars at 25mm pitch |
| A-30 | B-30 | C-30 | Bearing bars at 30mm pitch |
| A-40 | B-40 | C-40 | Bearing bars at 40mm pitch |
| A-60 | B-60 | C-60 | Bearing bars at 60mm pitch |

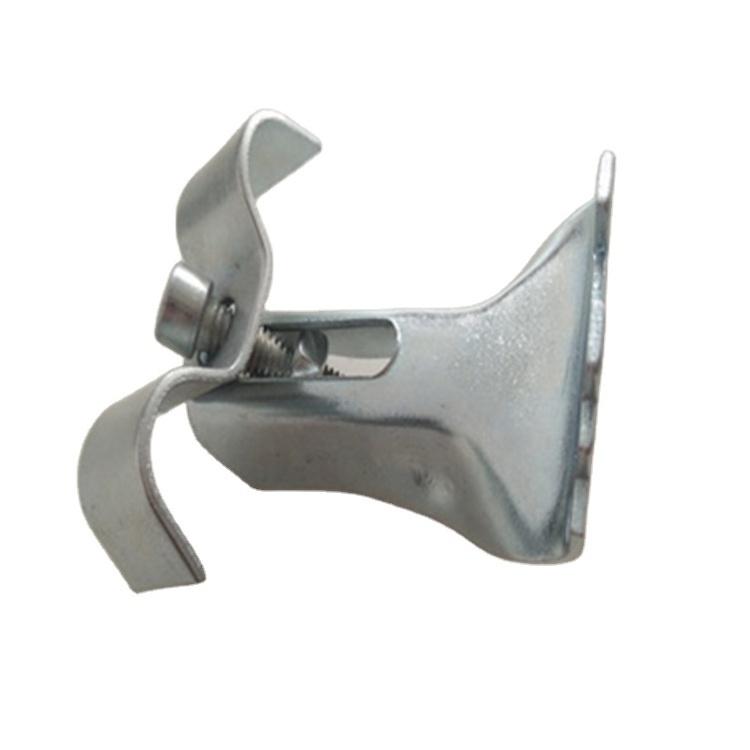

Type-A : Comprising of a top clip with double saddle,a lower clip with teeth and an M8 inner-hexagon-circular-stud bolt.
Type-B : Comprising of a top clip with double saddle(of which one saddle can secure the two bearing bars of adjacent gratings),a lower clip with teeth and an M8 inner-circular-stud bolt.
Type-C : Comprising of a top clip with double saddle,and an M8 hexagon - headed bolt which can be welded to the support member.
