One 40 HQ can load 3-4 pcs spray booth
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
customized
-
Disc Dia.:
-
/
-
No Load Speed:
-
27375-50712m3/h
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AUCARE
-
Model Number:
-
customized
-
Warranty:
-
2 years
-
size:
-
Customized Accepted
-
Color:
-
customized
-
Total Power:
-
12KW
-
Fire-proof soft curtain:
-
PVC soft curtain
-
Exhaust fan:
-
7.5KW European fan
-
Intake fan:
-
without
-
Air Purification System:
-
Dual Filtering Structure
-
Light System:
-
on two side
-
Name:
-
Retractable paint booth
-
warranty:
-
one year
Quick Details
-
Power:
-
12kw
-
External Size:
-
8000*4500*3500
-
Internal Size:
-
8000*4500*3500
-
Voltage:
-
customized
-
Disc Dia.:
-
/
-
No Load Speed:
-
27375-50712m3/h
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AUCARE
-
Model Number:
-
customized
-
Warranty:
-
2 years
-
size:
-
Customized Accepted
-
Color:
-
customized
-
Total Power:
-
12KW
-
Fire-proof soft curtain:
-
PVC soft curtain
-
Exhaust fan:
-
7.5KW European fan
-
Intake fan:
-
without
-
Air Purification System:
-
Dual Filtering Structure
-
Light System:
-
on two side
-
Name:
-
Retractable paint booth
-
warranty:
-
one year
Product Description

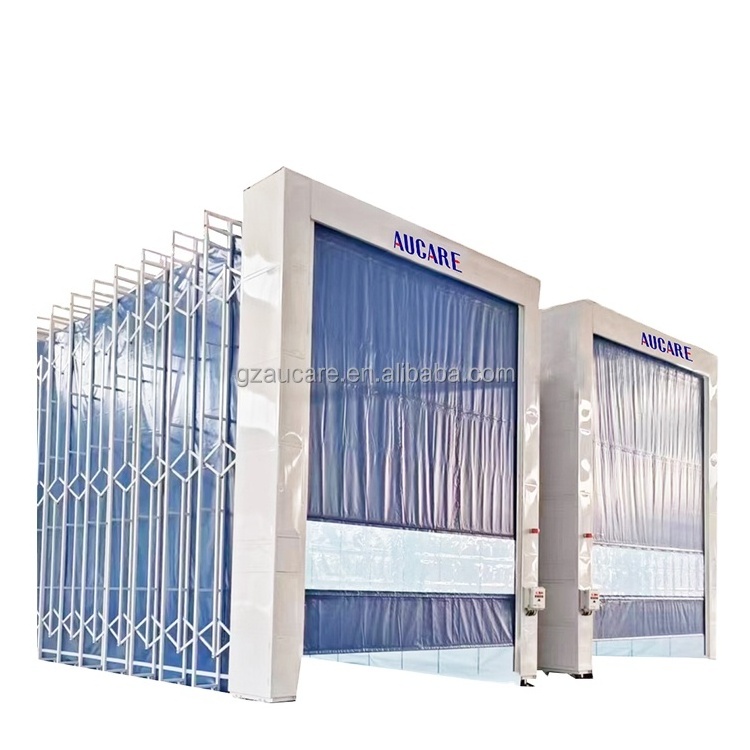

Telescopic Spray Booth With Back Exhuast Fan System Exprooof Lighting on Top
Quick Detail:
Telescopic paint spray booth is an environmentally-friendly painting equipment that can be automatically
unfolded to form a closed or semi-colsed painting space when it is used, and can shrink and fold to one
place when not in use, it is used in a wide range of applications and is particularly suitable for the painting of larger
workpieces.
Product Application：Telescopic paint spray booth is used for the painting work of large-volume, heavy-weight products that are not convenient for manual handling.
Advantages Of Retractable Painting Booth ：
1. Nylon fiber mat,durable,non-deformable,waterproof and anti-corrosion,anti-exposure.
2.Double-side double motor,equipped with reducer,smooth expansion and contraction.
3. Interior equipped with water curtain cabinet, effectively purify paint mist.
4. The use of high-quality square steel pipe expansion joints,strong bearing capacity,structural stability
5. Size.color can be customized
6. Explosion-proof lighting system
7. Voltmeter.push button switch,emergency stop,multiple circuit protection.
Specification
|
Item
|
Data
|
|
Size
|
8500*4000*4000mm(L*W*H)/Customized
|
|
Entrance door
|
Electric roller shutter
|
|
Filtration system
|
Optional.
|
|
Exhaust filter
|
Pleated andreae filter+Fiberglass paint arrestor filter
|
|
Lighting system
|
LED lights.
|
|
Intake system
|
Nature air intake.
|
|
Exhaust system
|
Optional.
|
|
Power & motor description
|
7.5KW.970rpm,380V,50hz
|
|
Empty loaded air speed
|
0.3m/s
|
|
Noise
|
<86db
|
|
Ductwork
|
With 5 pieces of straight ducting
|
|
Control System
|
Standard
|
|
Functions
|
Standard step-down start control system
|
|
Special Item
|
Rated power,10KW
|
Packing & Delivery
Container requirements:
One 20GP can load one piece spray booth
