Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
Sunsoont
-
Place of Origin:
-
Guangdong, China
-
Manufacturer:
-
offer OEM ODM
Quick Details
-
Max. LAN Data Rate:
-
1000Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G & 5G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
Sunsoont
-
Place of Origin:
-
Guangdong, China
-
Manufacturer:
-
offer OEM ODM
Product Description
5.8ghz 1200mbps Multi 5g 4g sim card bonding router Hotspot Wifi Router 5Dbi*4
1200M 4g router high speed dual band 2.4G&5.8G

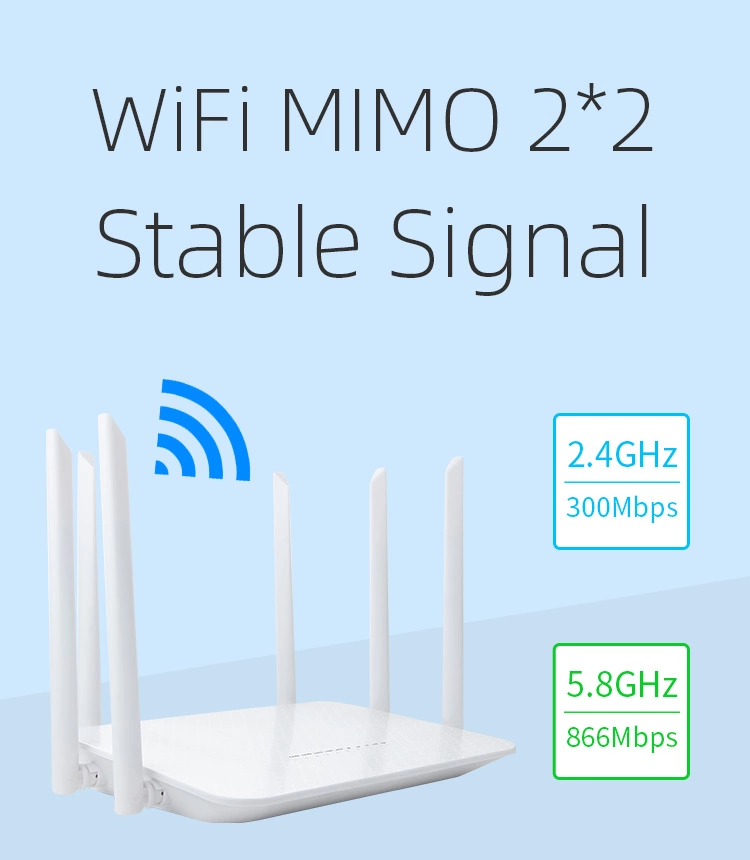

This device is a high-performance 4G broadband wireless router, supporting the maximum DL/ UL rate of 150 / 50Mbps. Relying on 2 * 2 MIMO technology, it provides high-quality data communication and optimized WiFi data
transmission. Diversified WiFi standards and encryption modes ensure the safety and stability of the product.
transmission. Diversified WiFi standards and encryption modes ensure the safety and stability of the product.

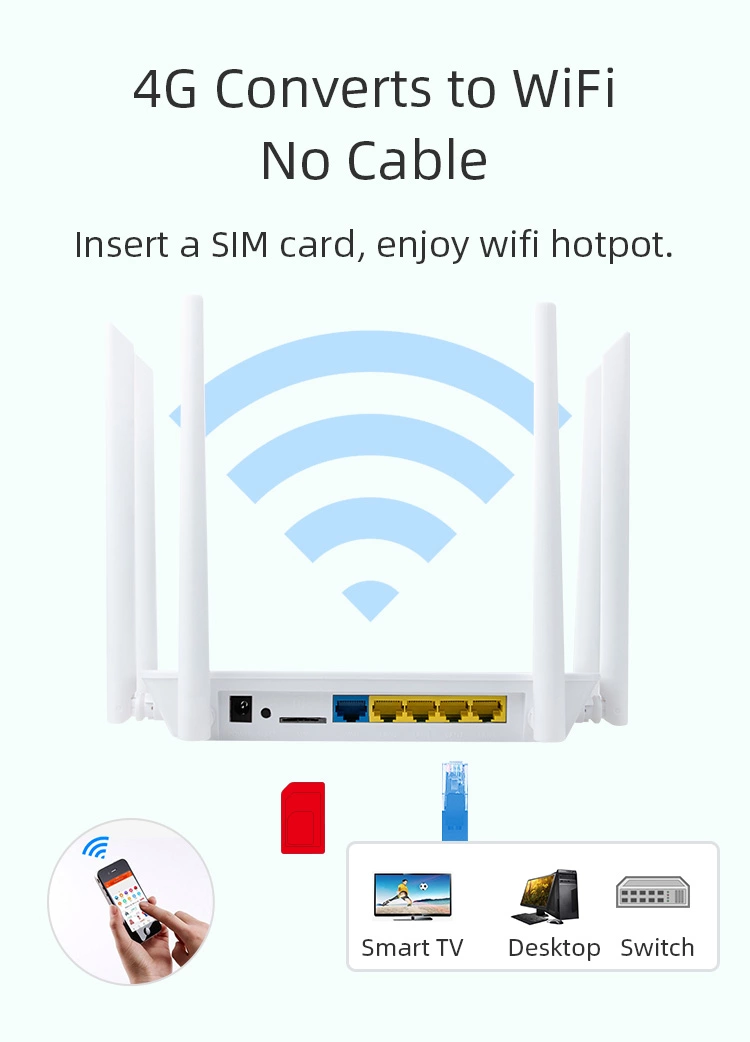

With a variety of working modes (4G to WiFi / 4G to cable), rich network protocols and reliable connections, it can be widely used in business and home. It has the function of regular restart and firewall protection. The built-in hardware watchdog can effectively prevent the system from crashing during operation. Built in dual firmware can automatically recover the system due to software upgrade failure or abnormal start up caused by software.
Specification
|
Technical parameter
|
|
|
||
|
Interface
|
Network port
|
4*LAN 1*WAN
|
||
|
|
SIM
|
2FF sim
|
||
|
|
Button
|
reset
|
||
|
|
DC adapter
|
Input voltage:12V 1.5A
|
||
|
Solution
|
Routing and WiFi chipset supplier
|
MTK
|
||
|
BASE
|
Routing and WiFi chipset model
|
MT7628A+MT7612E
|
||
|
|
Routing and WiFi processor info
|
IEEE 802.11 a/b/g/n/ac
|
||
|
|
DDR/SPI
|
64MBytes/16MBytes
|
||
|
RF
|
Main antenna
|
Internal antenna
|
||
|
|
Receive diversity antenna
|
Internal antenna
|
||
|
|
WiFi band
|
2400MHz-2483.5MHz 5170MHz-5835MHz
|
||
|
|
MIMO for WiFi
|
2.4G 5dbi X 2 5G 5dbi X 2
|
||
|
|
Max. transmitter power for WiFi
|
802.11a 14dBm±2dBm; 802.11b 22dBm±2dBm;
802.11g 18dBm±2dBm; 802.11n 16dBm±2dBm; 802.11ac 15dBm±2dBm; |
||
|
Software
|
Language
|
Chinese&English
|
||
|
|
APN Setting
|
Supported
|
||
|
|
Device Settings
|
Supported
|
||
|
|
WIFI Settings
|
Supported
|
||
|
|
Routing Settings
|
Supported
|
||
|
|
Firewall Settings
|
Supported
|
||
|
Technical standard
|
LED indicator
|
Supported
|
||
|
|
WiFi standard
|
802.11b/g/n(2*2 11n features)
|
||
|
|
WiFi security
|
WPA/WPA2
|
||
|
|
OS operating system
|
WindowsXP、WindowsVista、Windows7、Windows 10、MAC、Linux
|
||
|
|
Browser
|
IE (8.0 and later)、Firefox (3.0 and later)、Safari (4.0 and later)、Opera (10.0 and later)、Chrome (10.0 and later)
|
||
|
Environment
|
Operating temperature
|
0 to 50° C
|
||
|
|
Storage temperature
|
-40 to 70° C
|
||
|
|
Humidity
|
5% to 95%
|
||
|
Frequency band version
|
|
|
||
|
Version 1(
work on America&Latin America countries)
|
Version 2 (Europe Version)
|
Version3(Asia version)
|
||
|
LTE FDD: B2/B3/B4/B5/B7/B8/B12/B13/B17/B25/B26/B66
|
LTE FDD: B1/B3/B7/B8/B20/B28
|
LTE FDD: B1/B3/B5/B8
|
||
|
LTE TDD: B41
|
LTE TDD: B38/B40/B41
|
LTE TDD: B38/B39/B40/B41/B71
|
||
|
WCDMA: B2/B4/B5/B8
|
WCDMA: B1/B8
|
WCDMA: B1/B8
|
||
|
GSM: 850/900/1800/1900
|
GSM: 900/1800
|
TD-SCDMA: B34/B39
|
||
|
|
|
CDMA2000 1X/EVDO: BC0
|
||
|
|
|
GSM: 900/1800
|
||
