Quick Details
-
Weight (KG):
-
10
-
Voltage:
-
220V/110V
-
Rated Capacity:
-
100%
-
Rated Duty Cycle:
-
100%
-
Dimensions:
-
420x300x1500mm
-
Usage:
-
welding
-
Product name:
-
magnet rail welding carriage
-
Application:
-
walking welding carriage
-
Keyword:
-
magnet rail welding carriage
-
Welding mode:
-
TIG MIG
-
Brand:
-
ACRROS
-
Advantage:
-
Cost Save High Efficiency
-
Power supply:
-
AC220V
-
Welding Material:
-
Carbon Steel
-
Operation Type:
-
Cabinet
-
Function:
-
Welding
Quick Details
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
China
-
Brand Name:
-
ACRROS
-
Weight (KG):
-
10
-
Voltage:
-
220V/110V
-
Rated Capacity:
-
100%
-
Rated Duty Cycle:
-
100%
-
Dimensions:
-
420x300x1500mm
-
Usage:
-
welding
-
Product name:
-
magnet rail welding carriage
-
Application:
-
walking welding carriage
-
Keyword:
-
magnet rail welding carriage
-
Welding mode:
-
TIG MIG
-
Brand:
-
ACRROS
-
Advantage:
-
Cost Save High Efficiency
-
Power supply:
-
AC220V
-
Welding Material:
-
Carbon Steel
-
Operation Type:
-
Cabinet
-
Function:
-
Welding

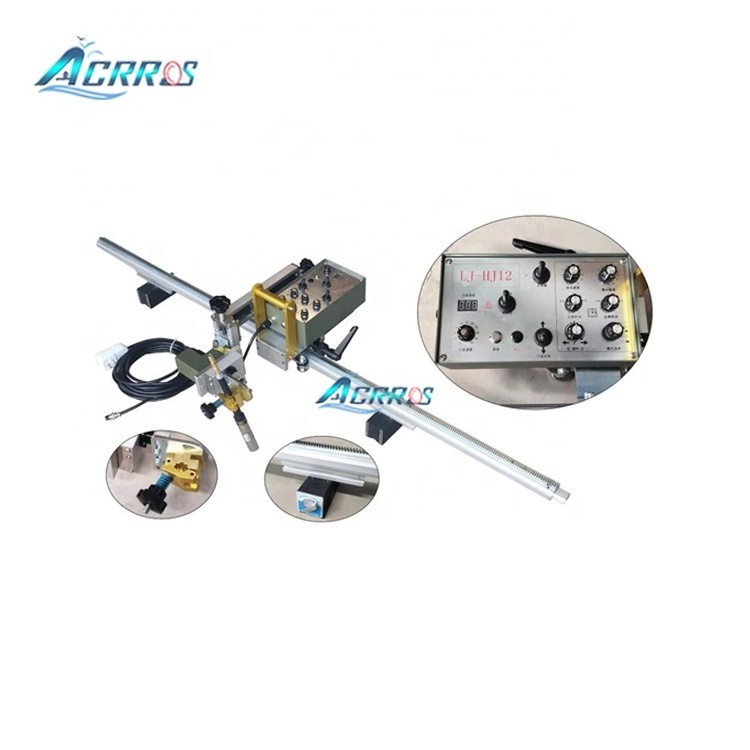

Magnetic Rail Track Welding Carriage
Automatic welding carriage auto tank weld tractor
Automatic welding carriage is a welding equipment that uses a rack and pinion method to drive on the track. It is widely used in horizontal welding and vertical welding, and is especially suitable for welding of medium and thick plates. By adjusting the position and angle of the welding gun, it can do fillet welding, horizontal welding and overhead welding. The carriage body, oscillating device, and control panel are integrated, which can be welded while walking on the track. The track is attracted to the workpiece with a strong magnet, which is easy to install and disassemble. It is widely used in ships, bridges, locomotives, steel structures, petrochemical industries and other industries. It is suitable for welding of various welded structures, such as: welding of stiffener plates, ribs, cross parts, and welding of box beams.
Main advantages: reduce labor intensity, improve working environment, and increase work efficiency, which is 1.5 times that of manual welding; avoid poor weld quality caused by human factors.
Welding Carriages specifications
| Welding Carriage body | Voltage | AC 220V 50/60 HZ |
| Size | 500x355x243 | |
| Weight | 10.6Kg | |
|
Driving method |
Rack drive |
|
|
Walking speed |
0-100mm/min | |
|
Torch adjust range |
Up/down ±20mm Front/back ±20mm Operating angle 360° Carrying angle ±90° |
|
| Track |
Install |
Magnet removable |
| Size | 40x29.3x1500 | |
| Material | Aluminum | |
| Weight | 6 Kg | |
| Oscillate parameters | Oscilla te pattern | |
| Oscilla te speed | 0-1520mm/min | |
| Oscilla te range | ±20mm | |
| Left-Right stay time | 0-2s | |
| Center position | ±5mm |
