Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Contrastech
-
Model Number:
-
Mars3000S-188cm
-
Video Compression Format:
-
/
-
Data Storage Options:
-
Output images to PC via Camera Link Interface.
-
Format Size:
-
1/1.8"
-
Shutter Mode:
-
Global Shutter
-
Pixel Size:
-
3.45x3.45μm
-
Frame rate:
-
188fps
-
Output Color:
-
Mono
-
Lens Interface:
-
C-mount
-
OEM:
-
Available
-
Interface:
-
Camera Link
-
Dimension(LxWxH):
-
44mmx29.0 mm x58.0 mm (100g)
Quick Details
-
Special Features:
-
High Speed, Camera Link Interface
-
Function:
-
Global Shutter
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Contrastech
-
Model Number:
-
Mars3000S-188cm
-
Video Compression Format:
-
/
-
Data Storage Options:
-
Output images to PC via Camera Link Interface.
-
Format Size:
-
1/1.8"
-
Shutter Mode:
-
Global Shutter
-
Pixel Size:
-
3.45x3.45μm
-
Frame rate:
-
188fps
-
Output Color:
-
Mono
-
Lens Interface:
-
C-mount
-
OEM:
-
Available
-
Interface:
-
Camera Link
-
Dimension(LxWxH):
-
44mmx29.0 mm x58.0 mm (100g)
|
Camera
|

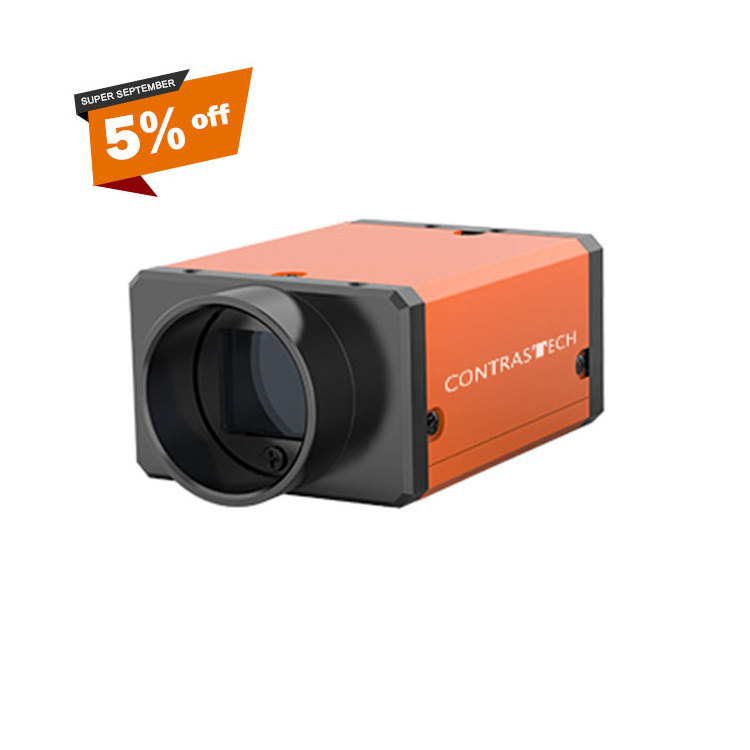

Mars 3000S-188cm
|
|
Resolution
[H*V]
|
2048 x 1536
|
|
Sensor
|
IMX252
|
|
Sensor Size
|
1/1.8"
|
|
Sensor Tecchnology
|
Global, CMOS
|
|
Pixel Pize
[μm]
|
3.45 x 3.45
|
|
Rrame Rate
[fps]
|
188
|
|
Exposure Time
|
1us~1s
|
|
Mono/Color
|
Mono
|
|
Interface
|
Camera Link (base / medium / Full / Deca)
|
|
Lenses Mount
|
C-Mount
|
|
Housing Size [l*w*h]
|
44mm × 29.0 mm × 58.0 mm (100g)
|
Title goes here.
As one high-tech enterprise Hangzhou Contrastech Co., Ltd. specializes in providing professional machine vision software, hardware and equipments. Contrastech has been researching and developing machine vision applications, major products including industrial camera, scientific standard camera, high definition frame grabber card, industrial FA lenses, telecentric lens, machine vision lightings and image processing software. The Engineering Dept. of Contrastech has a lot of mature and successful machine vision solutions which based on automatic industrial inspection, high precision measuring and the module distinguishing.。
