Quick Details
-
Type:
-
Air Source Heat Pump
-
Storage / Tankless:
-
Storage
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SIRAC
-
Model Number:
-
LSQ04RC
-
Heating capacity:
-
13.5KW
-
Power supply:
-
220V or 380V
-
Compressor:
-
scroll
-
COP:
-
4.4
-
Domestic hot water function:
-
available
-
Soft starter:
-
optional
-
Fan motor:
-
3 speed
Quick Details
-
Warranty:
-
2 years
-
Application:
-
Outdoor, Hotel, Household
-
Power Source:
-
Electric, Solar
-
Type:
-
Air Source Heat Pump
-
Storage / Tankless:
-
Storage
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SIRAC
-
Model Number:
-
LSQ04RC
-
Heating capacity:
-
13.5KW
-
Power supply:
-
220V or 380V
-
Compressor:
-
scroll
-
COP:
-
4.4
-
Domestic hot water function:
-
available
-
Soft starter:
-
optional
-
Fan motor:
-
3 speed

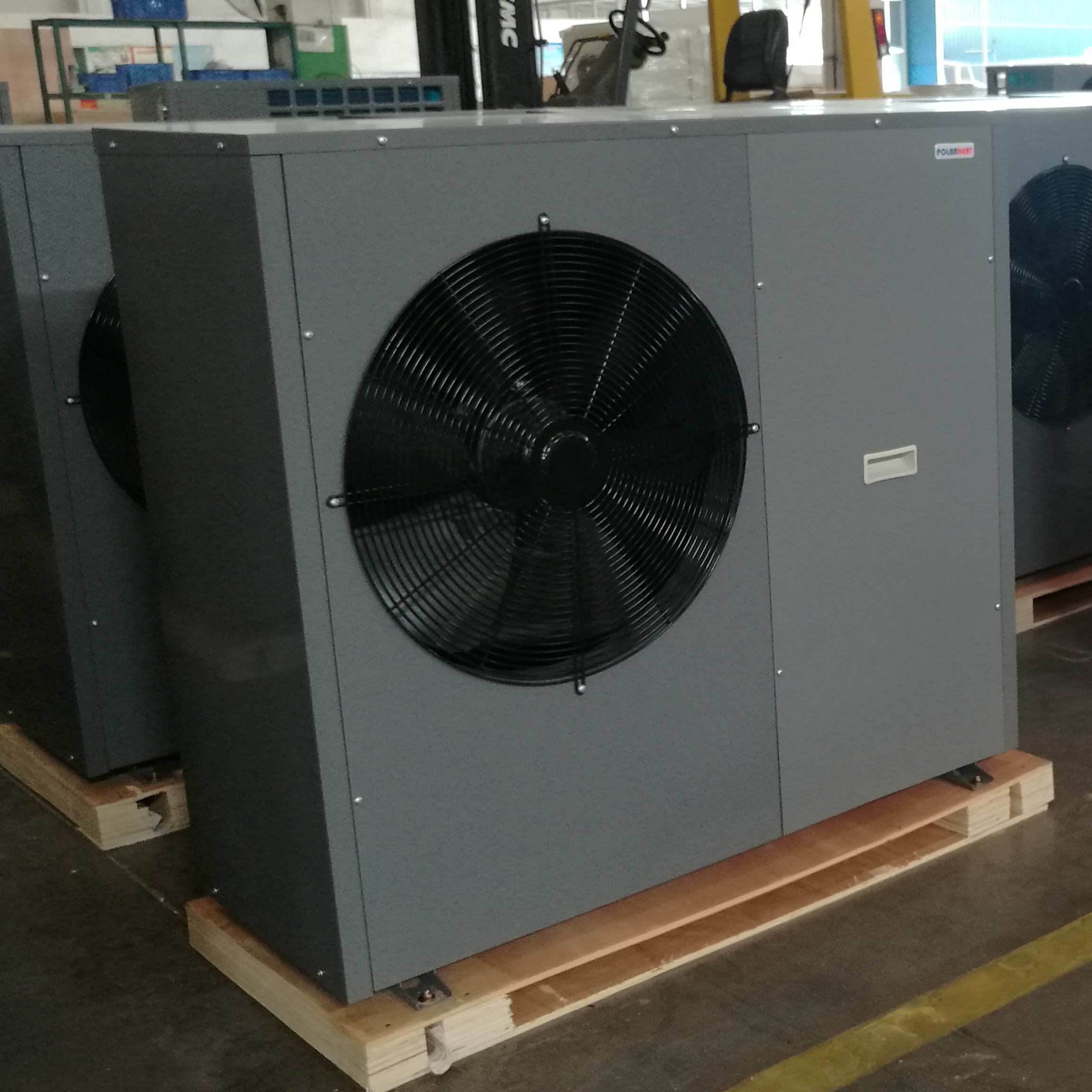

Air source (air to water) heat pump features:
1. Has been tested and designed in accordance with Europeen standard EN14511.
2. High efficiency. Able to work reliably and efficiently till minus 25 deg C.
3. Uses scroll EVI compressor, Sporlan thermal expansion valve and 316 stainless steel brazed plate heat exchanger.
4. Uses supper efficient and eco-friendly refrigerant R410.
5. Uses three speed fan motor to reduce the operation noise to a comfortable level.
6. Strong defrost function.
7. Automatic switch between space heating mode and hot water heating mode, with hot water function as the priority.
8. Automatic adjustment of water temperature in accordance with ambient temperautre in space heating mode.
9. Can be used as a chiller in Summer.
10. Over 20 kinds of electronic and mechanical protections to ensure safe operation and long lifespan.
11. Powder coated steel plate cabinet (stainless steel cabinet optional).
12. 24 hours timer clock. No human attendance is required once unit is started.
13. Modular control available.
Technical Specifications
| Model | LSQ03RF | LSQ04RF | LSQ05RF | LSQ06RF | |
| Outlet Water Rated Temp(℃) | 35 | ||||
| Outlet Water Max. Temp(℃) | 55 | ||||
| A7/W35 EN14511 | Heating Capacity (KW) | 11.5 | 15.3 | 19 | 22 |
| Power Input(KW) | 2.6 | 3.4 | 4.4 | 5 | |
| COP | 4.42 | 4.5 | 4.32 | 4.4 | |
| A7/W45 EN14511 | Heating Capacity (KW) | 10.9 | 14.8 | 18.3 | 21.4 |
| Power Input(KW) | 3.1 | 4.2 | 5.2 | 6 | |
| COP | 3.51 | 3.52 | 3.52 | 3.57 | |
| A2/W35 EN14511 | Heating Capacity (KW) | 9.9 | 13 | 16.7 | 19.5 |
| Power Input(KW) | 2.5 | 3.3 | 4.2 | 4.9 | |
| COP | 3.96 | 3.94 | 3.98 | 3.98 | |
| A2/W45 EN14511 | Heating Capacity (KW) | 9.5 | 12.9 | 16.2 | 18.6 |
| Power Input(KW) | 3 | 4.1 | 5.1 | 5.9 | |
| COP | 3.17 | 3.15 | 3.18 | 3.15 | |
| Power Supply (V/PH/HZ) | 380/3/50 | ||||
| Compressor Type | Scroll EVI | ||||
| Compressor Qty | 1 | ||||
| Cabinet Material | Powder Coated Galvanized Steel /Stainless Steel | ||||
| Gas Flow Restriction | Electronic Expansion Vavle | ||||
| Defrosting Device | 4-way Reversing Valve | ||||
| Condenser Type | Brazed Plate Heat Exchanger | ||||
| Noise d B(A) | 52 | 52 | 54 | 54 | |
| Refrigerant Type | R410A | ||||
| Ambient Air Range | -25℃~43℃ | ||||
| Pipe size (inch) | 1'' | ||||
| Dimensions(mm) | Length | 1180 | 1230 | ||
| Width | 470 | 500 | |||
| Height | 760 | 1050 | |||
| Air Discharge | Horizontal | ||||
