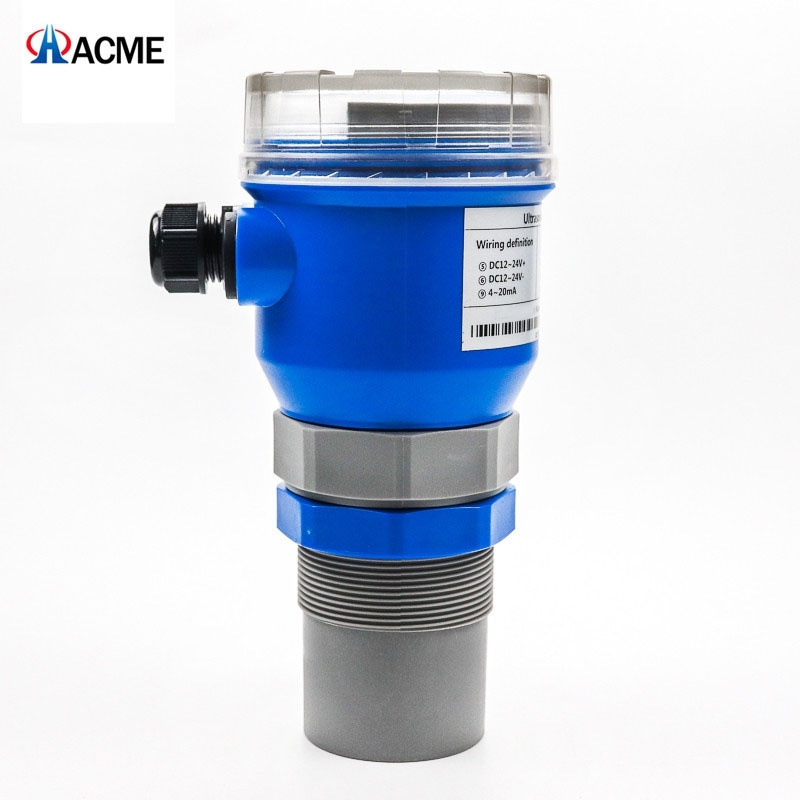

AUT710 AUT710 1.2-25m 3 wires flange connection Ultrasonic Level Meter With LED Indicator For Water/liquid Tank Depth Measurement

AUT710 AUT710 1.2-25m 3 wires flange connection Ultrasonic Level Meter With LED Indicator For Water/liquid Tank Depth Measurement

FOB Reference Price: Get Latest Price

≥1 Pieces

US $245

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product Name::: Ultrasonic Sensor Waterproof

measuring range::: 5-20m

Output signal::: 4~20mA, 0-5V,RS485

Power Supply::: 12-30VDC/24VDC/10-30VDC/220VAC

Accuracy::: 0.25%FS, 0.5%FS - optional

Working Temp::: -20℃~85℃

overload pressure::: 200%F.S

response time::: ≤50MS

Electronic connection::: screw

Installation::: PE

Quick Details

Place of Origin:: Shaanxi, China

Brand Name:: ACME

Model Number:: AUT710

Product Name::: Ultrasonic Sensor Waterproof

measuring range::: 5-20m

Output signal::: 4~20mA, 0-5V,RS485

Power Supply::: 12-30VDC/24VDC/10-30VDC/220VAC

Accuracy::: 0.25%FS, 0.5%FS - optional

Working Temp::: -20℃~85℃

overload pressure::: 200%F.S

response time::: ≤50MS

Electronic connection::: screw

Installation::: PE

APT710 1.2-25m 3 wires flange connection Ultrasonic Level Meter With LED Indicator For Water/liquid Tank Depth Measurement

ACME Ultrasonic level sensor for liquid underwater detector oil and water

ACME, We are specialized in pressure / level measurement. Ultrasonic level sensor has the characteristics of non-contact,high accuracy, easy install, is one of the mainstream products of our company.

Why you choose and trust us?

1. WE HAVE AN EXPERIENCED R & D team and engineers

2. Technical Guidance and support in the whole process

3. To buy a product is to get a good technical engineer for free

AUT701 The ultrasonic level meter owning the advantage of perfect level monitoring, data transmission, and man-machine communication. The CPU applies industrial monolithic integrated circuit, digital temperature compensation, etc ASICs. You can select analog, switch output, RS485 series signal output. It’s applicable for various fields concerning level measuring and monitoring, and no need to contact the measured liquids.

Technical Parameters

Model	AUT710-A1	AUT710-A2	AUT710-A3	AUT710-B1/B2/B3
Type	Integrated type				Split type
Measuring range (meter)	1m, 2m Small blind area	5m, 8m, 10m, 15m Standard Type	20m, 25m, 30m, 40m Max	0.06-40m (Optional)
Blind area	<0.06-0.15m (Different for ranges)	≤0.25～2m (Different for ranges)	≤0.25～2m (Different for ranges)	0.3-2m（Different for ranges）
Angle beam	<6°	<10°	<10°	<12°
Accuracy	±0.3%F.S				±0.3%F.S
Display	1)No display 2)Display : LCD, LED, OLED(Optional)				LCD , TFT (Optional)
Power supply	DC12—28V,AC220V(Optional)
Electric connection	PG7	M20*1.5	M20*1.5	PG7,M20*1.5 (Optional)
Process connection	G 1 1/2 (1m,2m ) M60*2 (5m-15m ) DN 80 flange connection (20m-40m) (Optional)
Output signal	Analog output:0-20mA; 4-20mA; 0-5V; 0-10V Digital output:RS485 (Mod_bus) Switch output : PNP/Relay output
Housing material	ABS,nylon,Cast aluminum, SS304 (Optional)
Protection grade	IP65(Customized for IP67, IP68)				IP66(Customized for IP67,IP68)
Explosion-proof	N/A, Explosion-proof (Optional)
Corrosion-proof	N/A, Explosion-proof (Optional)

A similar product used to measure water

Characteristic of AUT701 Series Level Sensor
1	Support M49*1.5 mm threaded into type installation and coil clamping type installation, the installation more convenient
2	Many model output optional customizable 4-20ma three-wire system, 1-5v, RS485 more customizable
3	Less than 9°C Beam angle design ,Resolution 3mm, less than 200ms responsible time to make sure more accuracy
4	Wide range of application,Sealed high-temperature toxic volatile,flammable and explosive of strongly corrosive liquid medium level measurement of non-contact ultrasonic sensors
5	Multiple electrical connection are optional ,easy installation
7	Housing adopts the NLEPE synthetic material IP66 waterproof,Anti-Skid,Anti-corrosion,Anti-explosion structure
8	More Human More Convenient,NON-Contact Type,more cleaning and health M78*1.2mm Thread or coil clamping installed
9	EMI/RFI Rejection

Size unit：mm

FAQ

Q:Can you accept ODM & OEM service ?
A:We professional provide OEM &OD M service for all of items.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality ultrasonic level sensor we can with reasonable
price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q: How can I get my sensors?/ What's the means of transport?
A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator
Q. How to order ?
A. In order to recommend you the most suitable radar level sensors and make an accurate quotation, please provide the following information and send it to our sales when you are going to make an inquiry, thanks !
1. What is your medium? Water, oil or others?
2. Level range: 0-10meters, or others?
3. Output signal: 4-20mA, RS485 or others?
