Quick Details
-
Dimensions(L*W*H):
-
1600 x 1600 x 840mm
-
Weight:
-
200 KG
-
Product Name:
-

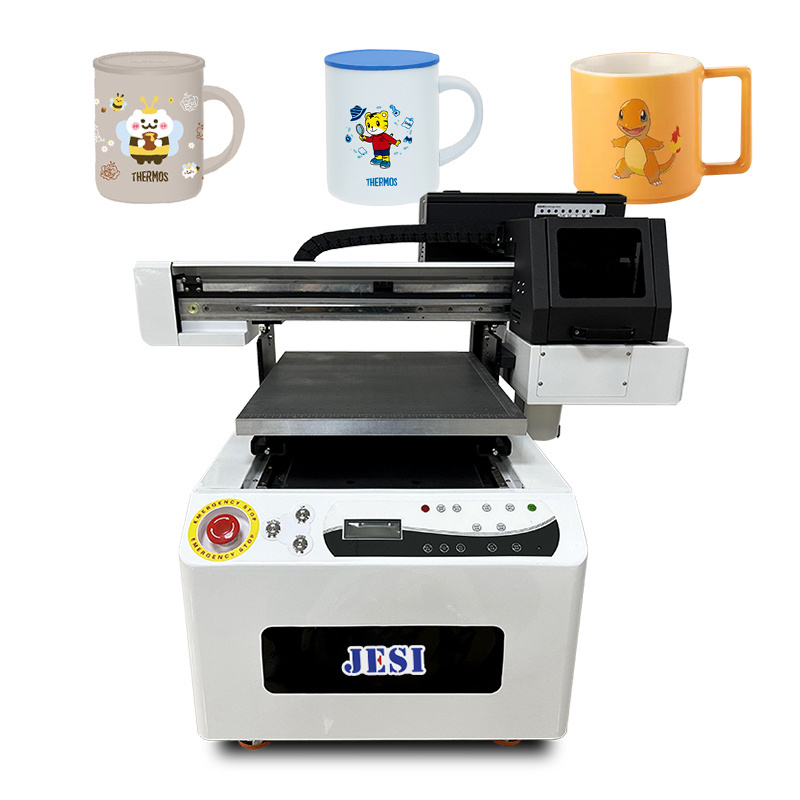

Small Format CMYK White and Varnish UV DTF Printer
-
Key Words:
-
UV DTF Printer 4050
-
Print head:
-
XP600
-
Core Components:
-
Motor
-
Print Head Quantity:
-
2~4pcs
-
Print Width:
-
400*500mm
-
Media Thickness:
-
0~180mm (Automatic Height Detecting System)
-
Curing System:
-
LED UV Lamp
-
Interface:
-
Gigabit Interface
-
File Format:
-
TIFF/PDF/JPG/AI
Quick Details
-
Print Dimension:
-
400mm*500mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JESI
-
Dimensions(L*W*H):
-
1600 x 1600 x 840mm
-
Weight:
-
200 KG
-
Product Name:
-
Small Format CMYK White and Varnish UV DTF Printer
-
Key Words:
-
UV DTF Printer 4050
-
Print head:
-
XP600
-
Core Components:
-
Motor
-
Print Head Quantity:
-
2~4pcs
-
Print Width:
-
400*500mm
-
Media Thickness:
-
0~180mm (Automatic Height Detecting System)
-
Curing System:
-
LED UV Lamp
-
Interface:
-
Gigabit Interface
-
File Format:
-
TIFF/PDF/JPG/AI
Product Show
|
PRODUCT PARAMETER
|
|
|
|
Model
|
JESI-UV4050
|
|
|
Cartridge Type
|
Intelligent sensing ink deficiency alarm cartridge
|
|
|
Maximum Print Size
|
400*500mm
|
|
|
White Ink Stirring Function
|
Yes
|
|
|
Print Head
|
XP600 / TX800 / I3200
|
|
|
Rotating Shaft Device
|
Assorting
|
|
|
Print Head Count
|
2
|
|
|
Platform Suction
|
Yes
|
|
|
Printing Accuracy
|
720dpi / 1080dpi / 1440dpi
|
|
|
Print Interface
|
Gigabit Network Port
|
|
|
Print Head Cleaning
|
Auto
|
|
|
Working Environment
|
Temperature 15-30℃
|
|
|
Ink Type
|
UV Ink
|
|
|
Software
|
Riprint / MainTop / Photo Print
|
|
|
Platform Height Adjustable
|
0-180mm
|
|
|
Operating System
|
Win XP/Win7/Win10
|
|
|
Print Material
|
Acrylic / glass / stainless steel / phone case / tile / KT board / wood / aluminum-plastic board
|
|
|
Rated Power
|
500W
|
|
|
Machine Size/Weight
|
1000*960*770mm / 109kg
|
|
|
Package Size/Weight
|
1080*1100*890mm / 135kg
|
|
|
Speed/Accuracy
|
XP600*2 printheads TX800*2 printheads I3200*2 printheads
6pass 9㎡/h 6pass 8㎡/h 6pass 20㎡/h
8pass 7㎡/h 8pass 6㎡/h 8pass 14㎡/h
12pass 4㎡/h 12pass 3㎡/h 12pass 9㎡/h
|
|
