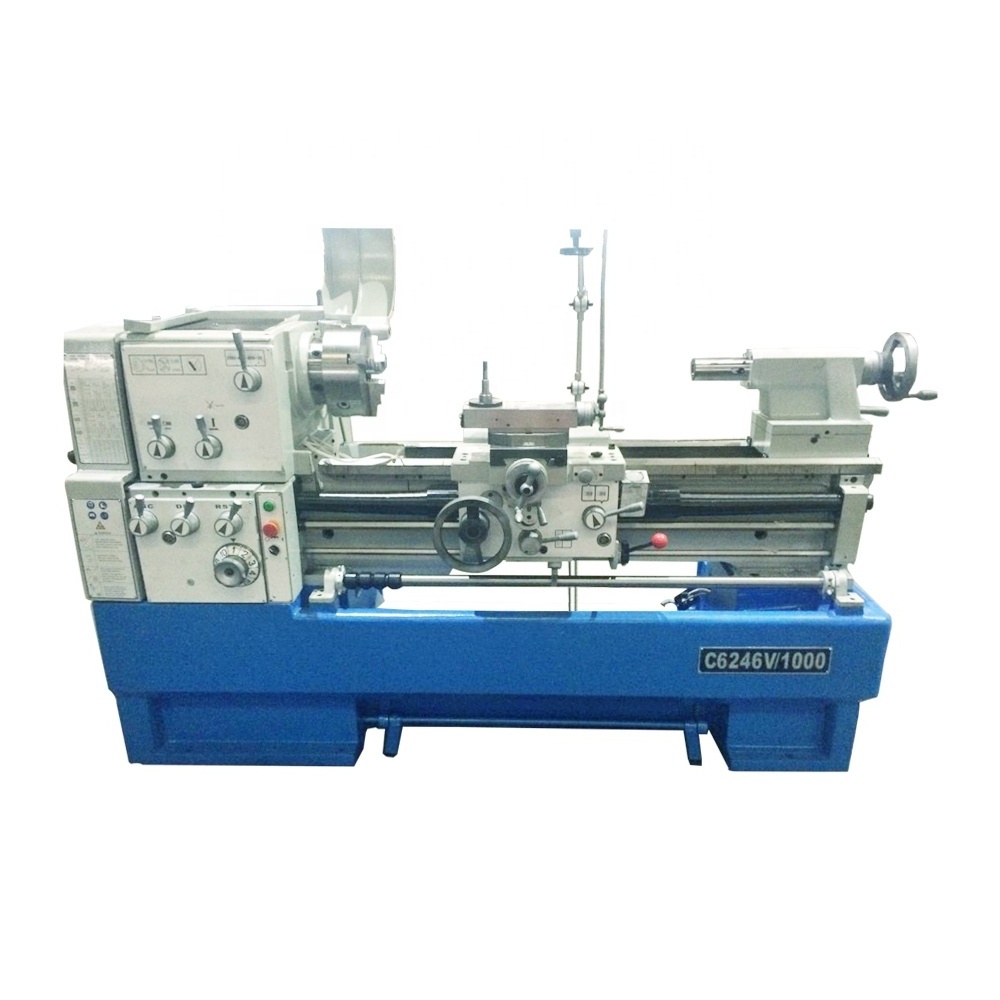

Chinese Hoston Hot Selling Tsugami Lathe Metal For Sale Craigslist

Specification

Model

C6246

Swing over bed

460mm(18”)

Swing over cross slide

270mm

(10-3/4’‘)

Swing in gap diameter

690mm (27-1/8’‘)

Distance between centers

1000mm(40”) 1500mm(60”) 2000mm(80”)

Valid length of gap

165mm(6-1/2”)

Width of bed

300mm(11-13/16”)

Spindle nose

D1-8

Spindle bore

58mm(2-1/4”)

Taper of spindle bore

No.7 Morse

Range of spindle speed

12 changes, 25 ~ 2000r/min

Compound rest travel

128mm(5”)

Cross slide travel

285mm(11-1/4”)

Max. section of tool

25x25mm(1” x1’’)

Lead screw thread

6mm or 4T.P.I.

Longitudinal feeds range

42 kinds, 0.031 ~1.7mm/rev (0.0011” ~0.0633”/rev)

Cross feeds range

42 kinds, 0.014 ~0.784mm/rev (0.00033” ~0.01837”/rev)

Threads metric pitches

41 kinds, 0.1 ~ 14mm

Threads imperial pitches

60kinds,2 ~ 112T.P.I.

Threads diametral pitches

50kinds,4 ~ 112DP

Threads module pitches

34 kinds, 0.1 ~ 7MP

Quill diameter

60mm(2-5/16’’)

Quill travel

130mm(5”)

Quill taper

No.4 Morse

Main motor power

5.5kW(7.5HP)3PH

Coolant pump power

0.1kW(1/8HP)3PH

Overall

dimension(LxWxH)

220x108x137cm

275x108x137cm

325x108x137cm

Packing size(LxW H)

225x112x162cm

280x112x156cm

330x112x156cm

Net weight

1645kg

1810kg

1965kg

Gross weight

1910kg

2115kg

2295kg
