Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Drinks
-
Dimension(L*W*H):
-
2000*1300*1550mm
-
Weight:
-
350 KG
-
Machinery Capacity:
-
1000-3000bph
-
Product name:
-

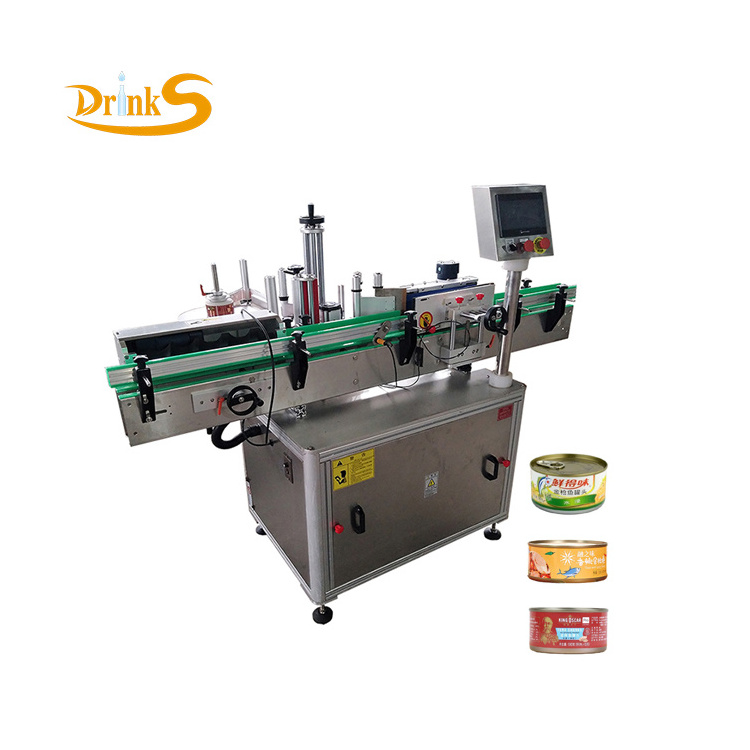

Round bottle labeling machine
-
Bottle type:
-
Round Bottle, Jars, Cans
-
Labeling speed:
-
20-60pcs/min
-
Labeling Accuracy:
-
+-1.0mm
-
Label size:
-
(L)20-300mm,(H)10-180mm
-
Label height:
-
10-190mm (adjustable)
-
Usage:
-
Adhesive Labels Bottles
-
Control:
-
PLC+Touch screen
-
After-sales Service Provided:
-
Video Technical Support
-
After Warranty Service:
-
Spare Parts AndVideo Technical Support
Quick Details
-
Application:
-
Food, Beverage, Wine
-
Packaging Type:
-
Bottles
-
Packaging Material:
-
Plastic, Metal, Glass
-
Voltage:
-
220V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Drinks
-
Dimension(L*W*H):
-
2000*1300*1550mm
-
Weight:
-
350 KG
-
Machinery Capacity:
-
1000-3000bph
-
Product name:
-
Round bottle labeling machine
-
Bottle type:
-
Round Bottle, Jars, Cans
-
Labeling speed:
-
20-60pcs/min
-
Labeling Accuracy:
-
+-1.0mm
-
Label size:
-
(L)20-300mm,(H)10-180mm
-
Label height:
-
10-190mm (adjustable)
-
Usage:
-
Adhesive Labels Bottles
-
Control:
-
PLC+Touch screen
-
After-sales Service Provided:
-
Video Technical Support
-
After Warranty Service:
-
Spare Parts AndVideo Technical Support
2. It can automatically finish bottle-grouping, sending mark tape, separating labels synchronously.
3. With mechanics technology, it adopts big torque motor to drive, and imported photoelectric control & PLC program control system, thus guaranteeing accurate labeling, stable, reliable and high efficiency.
|
Name
|
Automatic single side labeling machine
|
|
Model
|
TBJ-30
|
|
Lable hight
|
Max 130mm (adjustable)
|
|
Lable roll size
|
Inner diameterφ76 mm ,Outer diameter Max φ350mm
|
|
Precision
|
±1mm
|
|
Capacity
|
30-100 pcs/min (adjustable)
|
|
Voltage
|
110V/220V
|
|
Function
|
The labeling machine is made of SS 304 and high-class alloy, the controling system adopts PLC with touch screen. This labeling machine can be installed on any product lines, and can change labeling methods according to the actual needs. This machine can stick lables on various olive, round or cylidrical objects, bottles, jars, boxes, hardwares, etc.
|
|
|
|
Main Features
1).With micro-computer labeling system, fast & stable, suitable for longtime work
2). with system check function: labels lacking or broken, leaving out, e-stop, abnormal frequency-conversion, typewriter ribbon lacking, it can detect all & then stops auto.
3).The I/O self-check function, can display all system photoelectric signals & motor, shorten repair time, reduce maintenance cost.
4).With step less speed control, labeling speed automatically changes according to conveying speed, no need to move labeling sensor.
Automatic bottle unscrambler CO2 Mixer
Water treatment system
3 In 1 Water filling machine Sleeve labeling machine PE Film wrapping machine
Transport Port : Shanghai Port.
Transportation: By van ,by train, by plane.
Packaging Details :Machine will be packed by PVC film+ standard wooden case or carton.
Wooden case suitable for long distance ocean shipping.
Q. Are you a trading company or manufacture?
A: We are manufacture ,we have our professional manufacturing teams and technicians.
Q: Do you have technical support?
A: Our company is responsible for installation and debugging of equipment, meanwhile, responsible for the technology and operation training for user operator.
Q: How is your delivery time?
A: Generally speaking, the sample order takes 5-7 days, and it takes 15-25 working days for the bulk order after receiving the payment. The exact delivery time depends on the project project and the number of orders.
Q: How do you make our business long-term and good relationship?
A1. We maintain good quality and competitive prices to ensure our customers benefit;
A2. We respect every customer as our friend, we sincerely do business with them and make friends with them, no matter where they come from. We are partners.
