Infrared dryer by near infrared waves to molecules of ink or moisture produced vibration absorption, accelerated ink or moisture dry.
SD5000 infrared dryer dries the printing ink well by making use of the infrared, it is with the new concept of proportion control, with strong heating wind circle system.
It can dry the moisture and ink of all articles (except UV ink).It is widely used in the drying of printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This tunnel dryer enables the production of printed products with good colorfastness, high flexibility and high gloss.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
AC 380V 50HZ
-
Power:
-
16KW
-
Dimension(L*W*H):
-
5100*1050*1260mm
-
Weight:
-
900 KG
-
Key word:
-
t-shirt screen printing flash dryer
-
temperature:
-
constant temperature will be 5 degree more or less
-
key words:
-
screen printing conveyor dryer
-
Conveyor length:
-
5000mm
-
Conveyor width:
-
600mm
-
Temperature adjustment:
-
0-200 Centigrade
-
temperature resolution:
-
1 degree
-
Certification:
-
CE
Quick Details
-
Type:
-
Drying Oven
-
Place of Origin:
-
China
-
Brand Name:
-
LC
-
Voltage:
-
AC 380V 50HZ
-
Power:
-
16KW
-
Dimension(L*W*H):
-
5100*1050*1260mm
-
Weight:
-
900 KG
-
Key word:
-
t-shirt screen printing flash dryer
-
temperature:
-
constant temperature will be 5 degree more or less
-
key words:
-
screen printing conveyor dryer
-
Conveyor length:
-
5000mm
-
Conveyor width:
-
600mm
-
Temperature adjustment:
-
0-200 Centigrade
-
temperature resolution:
-
1 degree
-
Certification:
-
CE
Products Description
Description:

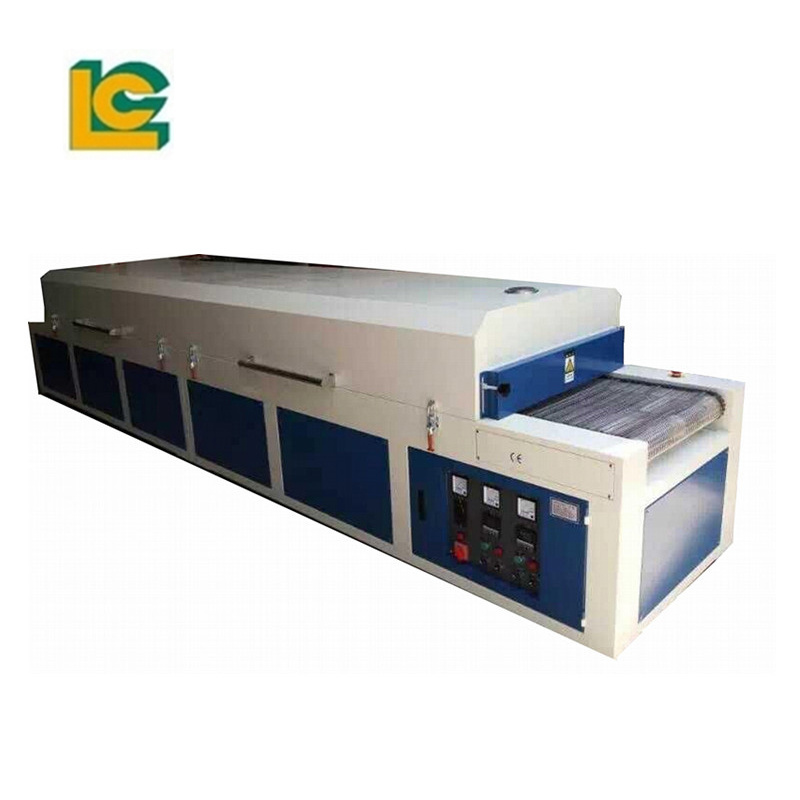

Machine Show
|
Gross weight
|
300 KG
|
temperature resolution
|
1º C
|
|
machine size
|
5100x1050x1260mm
|
Temperature adjustment
|
0-200 Centigrade
|
|
working power
|
AC 380V 50HZ
|
Belt speed adustment
|
0-10M/MIN
|
Product Details
Control Panel
Control monitor temperature and speed
Height Adjustment
120mm (can be customized different height)
Air Outlet
Drain moisture from the dried articles
Teflon Mesh Belt
Stainless Steel Mesh Belt (can be customized)
Noted:Because the power of the machine is too large, the machine has no plug,and need to be directly connected to the safety circuit.
Applicable Industries
Printing Industry
Agriculture
Textile Industry
Manufacturing Industry
The scope of application is very wide,such as printing industry ,paper industry, wood processing industry, textile industry,plastics industry, tanning and shoemaking industry, agricultural and sideline industry:drying grain, solving farmers' drying grain problem
Advantages
Infrared Dryer Feature
Infrared dryer use electricity produce infrared, so that the dried object's ink or moisture be absorbd and penetrates from the surface to the inside.The drying rate is higher and the thermal efficiency is higher.
SD3000 Infrared Dryer Feature
1) Intelligent temperature control system,can effectively control temperature deviation.Temperature range can be customized.
2)The thermal circulation system is used in the drying furnace to uniformly heat the product, speed up the drying speed, shorten the drying time and save energy.
3)The mesh belt is made of imported Teflon high temperature resistant mesh belt, which can be customized into stainless steel mesh belt and stainless steel chain plate.
4)The heating system is 6 U-shaped stainless steel heating tubes, which can be heated quickly and have a long life.
5) Automatic control system, convenient to monitor and adjust the operating speed and tunnel temperature.
6) According to customer requirements, our engineers can additional customize the preheating system and cooling system . Welcome ask your inquiry.
