Quick Details
-
Brand Name:
-
PDLUX
-
Theory:
-
Infrared Sensor
-
Output:
-
Switching Transducer
-
Description:
-

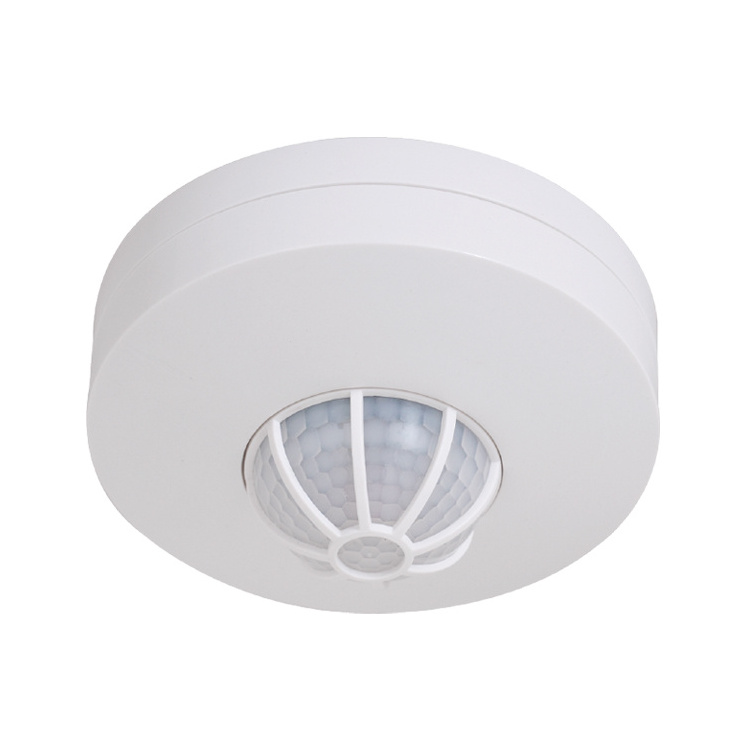

PIR motion sensor
-
Power source:
-
100-130VAC 220-240VAC
-
Power frequency:
-
50/60Hz
-
Rated load:
-
1200W/600W/300W/150W
-
Detection angle:
-
360 degree
-
Light-control:
-
10-2000lux (adjustable)
-
Time-setting:
-
10sec-12min(adjustable)
-
Detection range:
-
3-12m (radii.)(adjustable)
-
Standby power:
-
Approx. 0.45W
-
Installation sit:
-
Ceiling mount
Quick Details
-
Usage:
-
Motion Sensor
-
Model Number:
-
PD-PIR101
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PDLUX
-
Theory:
-
Infrared Sensor
-
Output:
-
Switching Transducer
-
Description:
-
PIR motion sensor
-
Power source:
-
100-130VAC 220-240VAC
-
Power frequency:
-
50/60Hz
-
Rated load:
-
1200W/600W/300W/150W
-
Detection angle:
-
360 degree
-
Light-control:
-
10-2000lux (adjustable)
-
Time-setting:
-
10sec-12min(adjustable)
-
Detection range:
-
3-12m (radii.)(adjustable)
-
Standby power:
-
Approx. 0.45W
-
Installation sit:
-
Ceiling mount
Product Description
Specification
|
Power source
|
100-130VAC 220-240VAC
|
|
Power frequency
|
50/60Hz
|
|
Rated load
|
1200W max,tungsten (220-240VAC)
300W max,fluorescent (220-240VAC) 600W max,tungsten (100-130VAC) 150W max,fluorescent (100-130VAC) |
|
Detection angle
|
360°
|
|
Light-control
|
10-2000lux (adjustable)
|
|
Time-setting
|
10sec-12min(adjustable)
|
|
Detection range
|
3-12m (radii.)(adjustable)
|
|
Standby power
|
Approx. 0.45W
|
|
Detection motion speed
|
0.6~1.5m/s
|
|
Working humidity
|
<93%RH
|
|
Working temperature
|
-10~+40°C
|
