Quick Details
-
Brand Name:
-
RUNDE
-
Voltage:
-
380
-
Dimension(L*W*H):
-
68*60*60CM
-
Weight (KG):
-
120
-
Power (kW):
-
0.37
-
Key Selling Points:
-
Multiplication
Quick Details
-
Wheel Size(mm):
-
125*50*32mm
-
Year:
-
2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RUNDE
-
Voltage:
-
380
-
Dimension(L*W*H):
-
68*60*60CM
-
Weight (KG):
-
120
-
Power (kW):
-
0.37
-
Key Selling Points:
-
Multiplication
Products Description
Product Paramenters

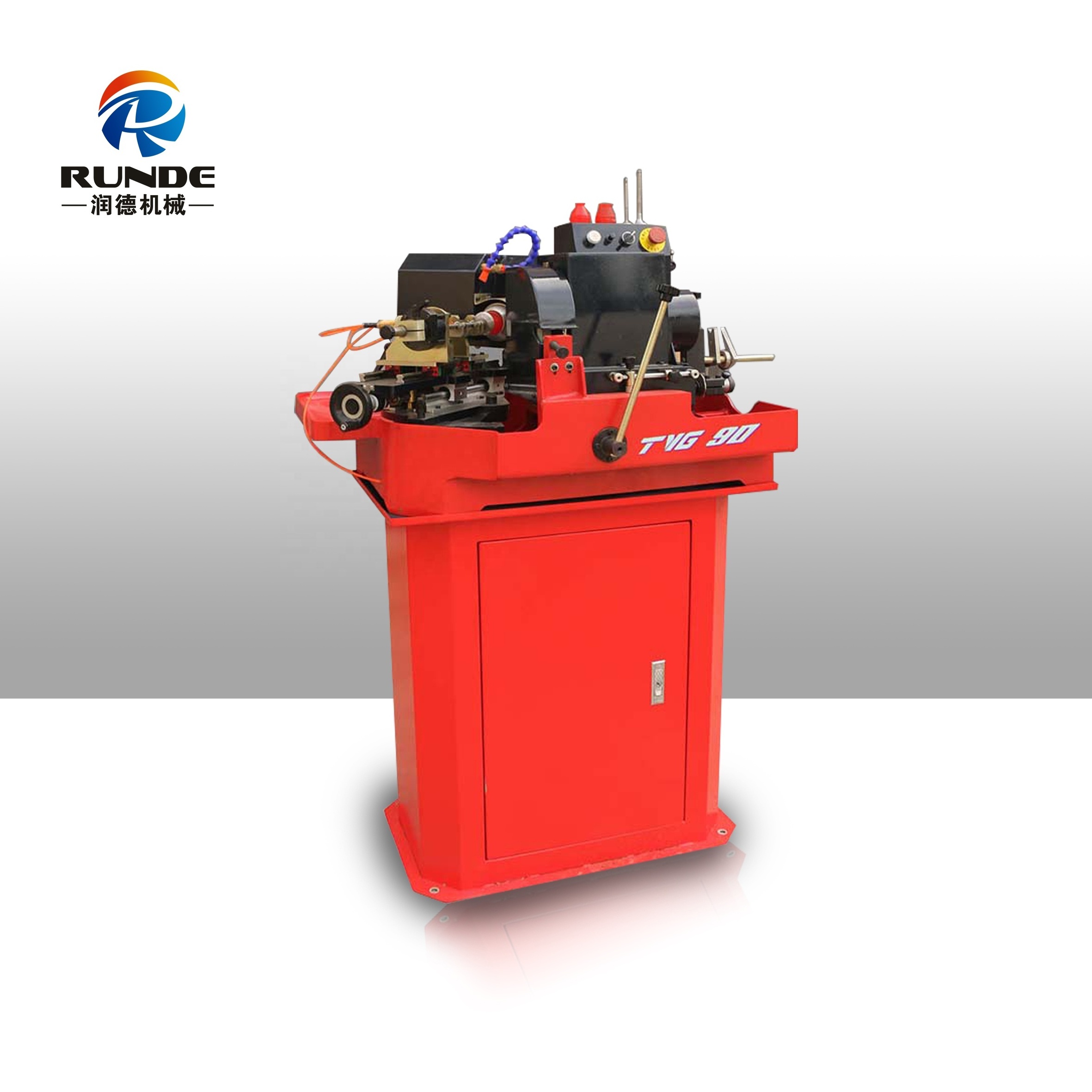

VR90 Valve Grinding machine
This machine is special for grinding the valves in internal combustion engines (the valves in engines on automobiles and
tractors), featuring small size, flexible operation and easy use. The parts are ground with high surface finish and accuracy.
tractors), featuring small size, flexible operation and easy use. The parts are ground with high surface finish and accuracy.
|
No.
|
Item
|
Unit
|
Specifications |
|
1
|
Max. dia. of valve ground
|
mm
|
90
|
|
2
|
Dia. of valve stems clamped (Standard)
|
mm
|
6-16
|
|
|
Dia. of valve stems clamped (Optional)
|
mm
|
4-7
|
|
|
Dia. of valve stems clamped (Optional)
|
mm
|
12-18
|
|
3
|
Angle of valve ground
|
°
|
25~60
|
|
4
|
Longitudinal movement range of headstock
|
mm
|
120
|
|
5
|
Cross movement range of Honing head
|
mm
|
95
|
|
6
|
Depth of cut of valve ground
|
mm
|
0.025
|
|
7
|
Honing head spindle speed
|
r.pm
|
4500
|
|
8
|
Headstock spindle speed
|
r.pm
|
125
|
|
9
|
Honing head electromotro
|
|
|
|
|
Model
|
|
YC-Y7122
|
|
|
Power
|
kw
|
0.37
|
|
|
Voltage
|
v
|
220
|
|
|
Frequency
|
Hz
|
50/60
|
|
|
Speed
|
r.pm
|
2800
|
|
10
|
Headstock electromotor
|
|
|
|
|
Model
|
|
JZ5622
|
|
|
Power
|
KW
|
0.09
|
|
|
Voltage
|
V
|
220
|
|
|
Frequency
|
Hz
|
50/60
|
|
11
|
Weight
|
kg
|
120
|
|
12
|
Overall dimensions (LxWxH)
|
cm
|
68*60*60
|
