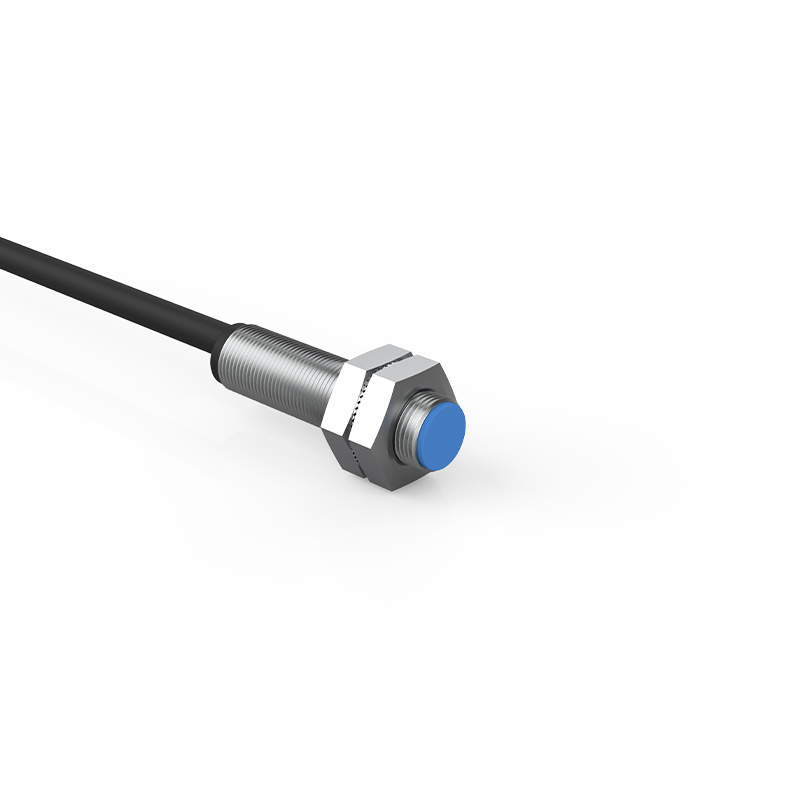

Quick Details
-
Model Number:
-
HR08-10N1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GTRIC
-
Theory:
-
self-induction
-
Output:
-
NPN NO/NPN NC/PNP NO/PNP NC
-
Function:
-
Standard
-
Sensing distance:
-
10MM
-
Mounting:
-
Flush
-
Assured distance:
-
0-8MM
-
Residual voltage:
-
≤1V
-
Supply voltage:
-
10-30VDC 3 Wires
-
Switching frequency:
-
1000Hz
-
Protection degree:
-
IP 67
-
Connection:
-
2m PVC Cable
-
Material:
-
Brass Nickled+ABS
Quick Details
-
Usage:
-
positioning
-
Mounting Type:
-
threaded installation
-
Description:
-
Sensors for Magnetic Detection, Magnetic Proximity Sensor
-
Model Number:
-
HR08-10N1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GTRIC
-
Theory:
-
self-induction
-
Output:
-
NPN NO/NPN NC/PNP NO/PNP NC
-
Function:
-
Standard
-
Sensing distance:
-
10MM
-
Mounting:
-
Flush
-
Assured distance:
-
0-8MM
-
Residual voltage:
-
≤1V
-
Supply voltage:
-
10-30VDC 3 Wires
-
Switching frequency:
-
1000Hz
-
Protection degree:
-
IP 67
-
Connection:
-
2m PVC Cable
-
Material:
-
Brass Nickled+ABS
|
Specifications
|
|
|
|
|
||||
|
Model
|
DC3-wireNPN.NO
|
HR08-10N1
|
HR12-10N1
|
HR18-10N1
|
||||
|
|
DC3-wireNPN.NC
|
HR08-10N2
|
HR12-10N2
|
HR18-10N2
|
||||
|
|
NPN.NO+NC
|
\
|
HR12-10N3
|
HR18-10N3
|
||||
|
|
DC3-wirePNP.NO
|
HR08-10P1
|
HR12-10P1
|
HR18-10P1
|
||||
|
|
DC3-wirePNP.NC
|
HR08-10P2
|
HR12-10P2
|
HR18-10P2
|
||||
|
|
PNP.NO+NC
|
\
|
HR12-10P2
|
HR18-10P3
|
||||
|
Mounting
|
Flush
|
|
|
|
||||
|
Sensing distance
|
10MM
|
|
|
|
||||
|
Setting distance(Sa)
|
0-8MM
|
|
|
|
||||
|
Hysteresis
|
≤10%
|
|
|
|
||||
|
Standar dsensing target
|
Magnetic field strength of the magnet is different detection distance is also different
|
|
|
|
||||
|
Supply voltage
|
DC:10-30VDC
|
|
|
|
||||
|
leakage current
|
0.5mA
|
|
|
|
||||
|
Response frequency(F)
|
1K Hz
|
|
|
|
||||
|
Load current
|
150MA
|
|
|
|
||||
|
Residual voltage
|
≤1V
|
|
|
|
||||
|
Circuitprotection
|
Surge absorption, reverse connection protection
|
|
|
|
||||
|
Outputindicator
|
Red LED
|
|
|
|
||||
|
Ambienttemperature
|
-20~+70℃
|
|
|
|
||||
|
Shock
|
500m/s(50G)ineachX,Y,Zdirectionfor3times
|
|
|
|
||||
|
Vibration
|
1mmamplitudeatfrequency10~55Hz(for1min）ineachX.Y.Zdirectionfor2hours
|
|
|
|
||||
|
Protectiondegree
|
IP67(IEC standards)
|
|
|
|
||||
|
Connection
|
2m PVC cable
|
|
|
|
||||
|
Meterial
|
Nickel-copperalloy
|
|
|
|
||||
|
Sensingside
|
ABS
|
|
|
|
||||
About Us
Wenzhou Gtric Technology Co., Ltd. is located in Yueqing IoT sensors Park, which covers 5,000 square meters, with over 100 employees. We are focuses on intelligent manufacturing and industrial automation, our main businesses are sensors, encoders, button switch, coupling, expansion set and other industrial automation products, providing standard and individual products and solutions for customers.
Our products cover over 20 series, 1000specificatison, which have passed CCC, CE, UL, ISO9001 certification as well as EU RoHS Environmental Directives. Based on our technical advantages, Gtric can provide industrial automation solution according to customers’ requirements.
Q: Can I customize a special sensor?
A: Sure, we also offer customized services.
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger size orders, please contact us and we will give you a quatation.
Q: If I need a sample for pretest, do you sale sample for this inquiry?
A: Yes, we can sale sample for pretest. If you need, please contact us.
Q : When will you ship my order?
A : 48 hours shipping guarantee for stock items and 10-15 days for non-stock items.
A: Sure, we also offer customized services.
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger size orders, please contact us and we will give you a quatation.
Q: If I need a sample for pretest, do you sale sample for this inquiry?
A: Yes, we can sale sample for pretest. If you need, please contact us.
Q : When will you ship my order?
A : 48 hours shipping guarantee for stock items and 10-15 days for non-stock items.
