Quick Details
-
Color:
-
Black
-
Material:
-
rubber
-
Size:
-
1/4"~3"
-
Certification:
-
ISO9001
-
Working pressure:
-
2--22.6MPa
-
Bursting pressure:
-
8--90.3MPa
-
Temperature range:
-
-40℉ to +250℉ (-40℃ to +121℃)
-
Inner tube:
-
Black, oil resistant, synthetic rubber.
-
Reinforcement:
-
One braid of high-tensile steel wire.
-
Cover:
-
Black, oil, abrasion and weather resistant, synthetic rubber.
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
orientflex
-
Model Number:
-
SAE100 R1
-
Color:
-
Black
-
Material:
-
rubber
-
Size:
-
1/4"~3"
-
Certification:
-
ISO9001
-
Working pressure:
-
2--22.6MPa
-
Bursting pressure:
-
8--90.3MPa
-
Temperature range:
-
-40℉ to +250℉ (-40℃ to +121℃)
-
Inner tube:
-
Black, oil resistant, synthetic rubber.
-
Reinforcement:
-
One braid of high-tensile steel wire.
-
Cover:
-
Black, oil, abrasion and weather resistant, synthetic rubber.

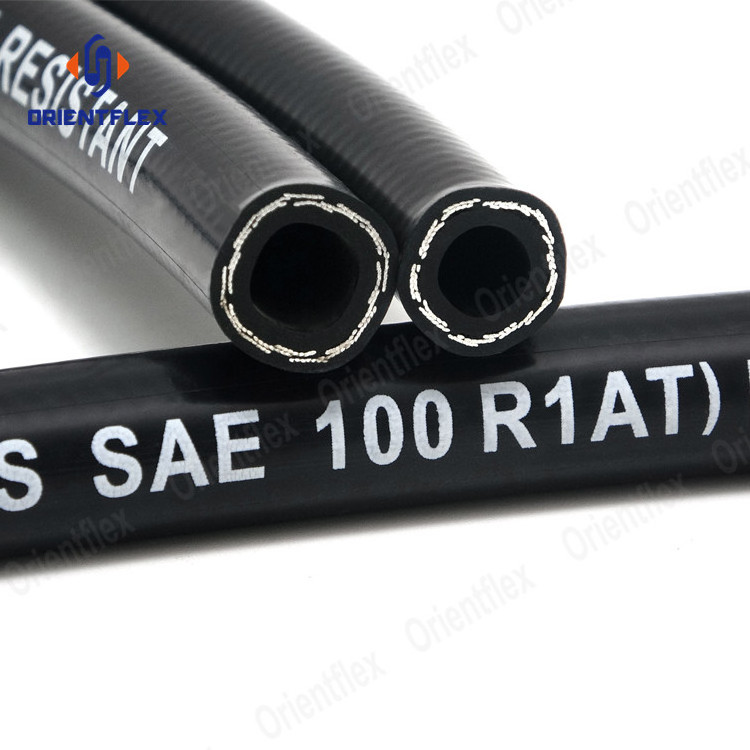

INNER TUBE: oil resistant synthetic nitrile rubber
REINFORCEMENT:
single layer of steel wire braided
COVER:
Black, oil resistant, synthetic rubber.
APPLICATION: Medium pressure hydraulic lines. Meets or exceeds the requirements of SAE 100 R1 Type AT and performance requirements of EN 853 1SN. Mine hydraulic support, oilfield extraction machinery, mine/ road/ construction machinery.
SURFACE:
wrapped surface,smooth surface
TEMPERATURE RANGE:
-40℃ (-104 ℉ ) to +100℃(+212 ℉)
| SAE 100 R1 AT | |||||||||||||
| Item Code | Metric Size | Inch Size |
SAE
Dash size |
I.D |
REINFORCEMENT
W.D |
O.D | W.P | B.P | Bend R | Wt | |||
| (mm) | (mm) | (mm) | |||||||||||
| mm | Inches | Dash | Min | Max | Min | Max | Max | Mpa | Psi | Mpa | mm | Kg/m | |
| R1-05 | 5.0 | 3/16" | 03 | 4.6 | 5.4 | 8.9 | 10.1 | 12.5 | 21.0 | 3150 | 84.0 | 90 | 0.20 |
| R1-06 | 6.3 | 1/4" | 04 | 6.2 | 7.0 | 10.6 | 11.7 | 14.1 | 19.2 | 2880 | 77.0 | 100 | 0.25 |
| R1-08 | 8.0 | 5/16" | 05 | 7.7 | 8.5 | 12.1 | 13.3 | 15.7 | 17.5 | 2625 | 70.0 | 115 | 0.31 |
| R1-10 | 10.0 | 3/8" | 06 | 9.3 | 10.1 | 14.5 | 15.7 | 18.1 | 15.7 | 2355 | 63.0 | 125 | 0.36 |
| R1-13 | 12.5 | 1/2" | 08 | 12.3 | 13.5 | 17.5 | 19.0 | 21.5 | 14.0 | 2100 | 56.0 | 180 | 0.45 |
| R1-16 | 16.0 | 5/8" | 10 | 15.5 | 16.7 | 20.6 | 22.2 | 24.7 | 10.5 | 1575 | 42.0 | 205 | 0.52 |
| R1-19 | 19.0 | 3/4" | 12 | 18.6 | 19.8 | 24.6 | 26.2 | 28.6 | 8.7 | 1305 | 35.0 | 240 | 0.65 |
| R1-25 | 25.0 | 1 | 16 | 25.0 | 26.4 | 32.5 | 34.1 | 36.6 | 7.0 | 1050 | 28.0 | 300 | 0.91 |
| R1-32 | 31.5 | 1.1/4" | 20 | 31.4 | 33.0 | 39.3 | 41.7 | 44.8 | 4.3 | 645 | 17.5 | 420 | 1.30 |
| R1-38 | 38.0 | 1.1/2" | 24 | 37.7 | 39.3 | 45.6 | 48.0 | 52.0 | 3.5 | 525 | 14.0 | 500 | 1.70 |
| R1-51 | 51.0 | 2 | 30 | 50.4 | 52.0 | 58.7 | 61.7 | 65.9 | 2.6 | 390 | 10.5 | 630 | 2.00 |
| EN 853 1SN | |||||||||||||
| Item Code | Metric Size | Inch Size |
SAE
Dash size |
I.D |
REINFORCEMENT
W.D |
O.D | W.P | B.P | Bend R | Wt | |||
| (mm) | (mm) | (mm) | |||||||||||
| mm | Inches | Dash | Min | Max | Min | Max | Max | Mpa | Psi | Mpa | mm | Kg/m | |
| 1SN-05 | 5.0 | 3/16" | 03 | 4.6 | 5.4 | 9.0 | 10.0 | 12.5 | 25.0 | 3750 | 100 | 90 | 0.20 |
| 1SN-06 | 6.3 | 1/4" | 04 | 6.2 | 7.0 | 10.6 | 11.6 | 14.1 | 22.5 | 3375 | 90 | 100 | 0.25 |
| 1SN-08 | 8.0 | 5/16" | 05 | 7.7 | 8.5 | 12.1 | 13.3 | 15.7 | 21.5 | 3225 | 85 | 115 | 0.31 |
| 1SN-10 | 10.0 | 3/8" | 06 | 9.3 | 10.1 | 14.5 | 15.7 | 18.1 | 18.0 | 2700 | 72 | 130 | 0.36 |
| 1SN-13 | 12.5 | 1/2" | 08 | 12.3 | 13.5 | 17.5 | 19.1 | 21.4 | 16.0 | 2400 | 64 | 180 | 0.45 |
| 1SN-16 | 16.0 | 5/8" | 10 | 15.5 | 16.7 | 20.6 | 22.2 | 24.5 | 13.0 | 1950 | 52 | 200 | 0.52 |
| 1SN-19 | 19.0 | 3/4" | 12 | 18.6 | 19.8 | 24.6 | 26.2 | 28.5 | 10.5 | 1575 | 42 | 240 | 0.65 |
| 1SN-25 | 25.0 | 1 | 16 | 25.0 | 26.4 | 32.5 | 34.1 | 36.6 | 8.8 | 1320 | 35 | 300 | 0.91 |
| 1SN-32 | 31.5 | 1.1/4" | 20 | 31.4 | 33.0 | 39.3 | 41.7 | 44.8 | 6.3 | 945 | 25 | 420 | 1.30 |
| 1SN-38 | 38.0 | 1.1/2" | 24 | 37.7 | 39.3 | 45.6 | 48.0 | 52.1 | 5.0 | 750 | 20 | 500 | 1.70 |
| 1SN-51 | 51.0 | 2 | 30 | 50.4 | 52.0 | 58.7 | 61.7 | 65.5 | 4.0 | 600 | 16 | 630 | 2.00 |
