The air-supported structure is the best solution for those cases when large light space without supports is required. Sports areas, inflatable tennis courts, entertainment centers, pools, exhibition pavilions, service stations, inflatable hangars, temporary buildings, temporary structures, storage and production premises – this is not nearly full list of possible spheres of use of such structures.
- Product Details
- {{item.text}}
Quick Details
-
product keywords:
-
inflatable sports hall air supported structure
-
color:
-
customization
-
size:
-
customization
-
Material:
-
PVDF
-
Accessories:
-
Blower
-
MOQ:
-
1 Piece
-
Warranty:
-
3 Years
-
Delivery time:
-
15days
-
Logo:
-
Customized Logo Availabled
-
Style:
-
Continuous Inflate
Quick Details
-
Brand Name:
-
MH
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
MH-TT
-
product keywords:
-
inflatable sports hall air supported structure
-
color:
-
customization
-
size:
-
customization
-
Material:
-
PVDF
-
Accessories:
-
Blower
-
MOQ:
-
1 Piece
-
Warranty:
-
3 Years
-
Delivery time:
-
15days
-
Logo:
-
Customized Logo Availabled
-
Style:
-
Continuous Inflate

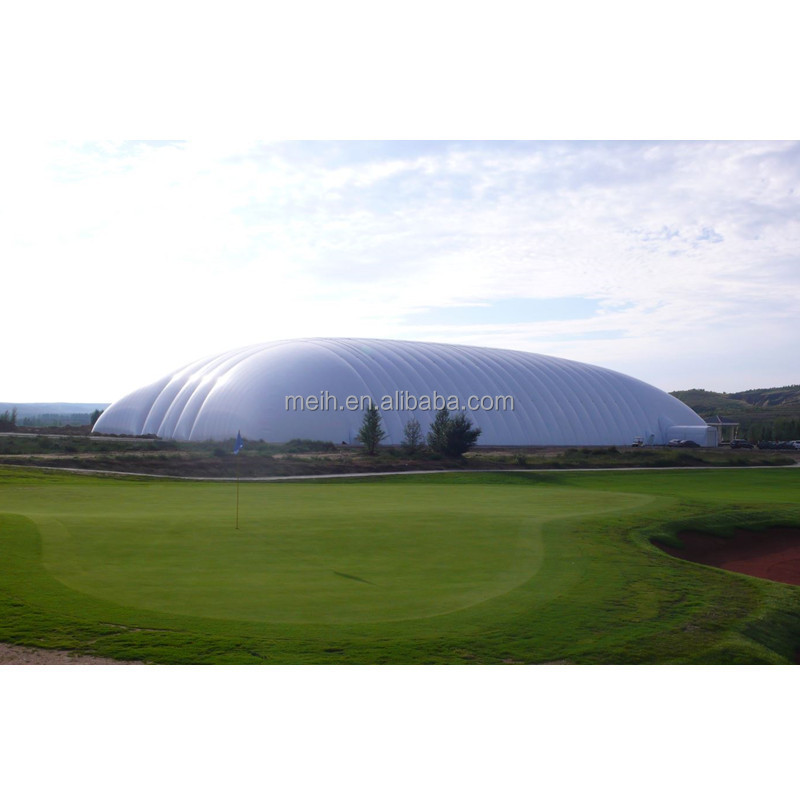

High Quality giant inflatable tennis court tent sports football hall air supported structure temporary building mobile pavilion for sale
The air-supported structure comprises a flexible shell in strong reinforced fabric without metal members, which is attached in air-tight way on the appropriate foundation. Air is fed inside the shell, developing excessive pressure and providing support for the structure. The design is safe and reliable in operation. The pressure drop experienced by a person who enters inside the air-supported building is approximately equal to pressure drop experienced during descending on lift from the sixth storey.
Product Description
|
Article
|
Inflatable Air Supported Structure
|
|
Size
|
110mx36mx21m or Customized
|
|
Material
|
PVDF
|
|
Accessory
|
Blower, lights, doors
|
|
Life time
|
15 years+
|
|
MOQ
|
1 PIECE
|
The size of the inflatable air supported structure can be customized.
Details Images
Inflatable air supported structure
1.FOUNDATION SUPPORT
Since the air-supported structure contains air under pressure, the shell tries to "separate" from ground surface. This is prevented by foundation. This may be of two types: ballast or piled foundation. The ballast foundation may be monolithic one concreted with the help of form work, or manufactured from concrete blocks laid along perimeter. The piled foundation comprises piles screwed or driven into ground.
2. HEATING & VENTILATION PLANT
It delivers air inside the air-supported building and consists of ventilation plant with centrifugal fan and heating unit for heating air inside the air-supported structure. The source of energy for the said heating unit may be provided by gas, fuel oil, electricity or hot water.
3. AIR-LOCK SYSTEMS
(Rotating door, cargo exit, transport air lock)
Such systems are designed for moving through shell of the air-supported building without loss of pressure. The most convenient air lock for people with a high throughput capability is provided by rotating door. The cargo exit and transport air lock are use for moving large-sized objects into air-supported building. If required, several air-lock systems may be used simultaneously.
4. LIGHTING SYSTEM
Lighting sources (floodlights)
The floodlights attached to the air-supported dome have special protective units for protection in case of emergency fall. The floodlights may be installed on special masts disposed along the perimeter of the air-supported structure.
5. OBLIQUE MESH WIRE SYSTEM
The unique patented technology, oblique mesh wire system.
Resist hurricane of 67m/s and more than 250kg/m squared snow.
Manufacturing Technique
PRODUCTION OF AIR SUPPORTED STRUCTURE
Design-Cutting-High frequency hot sealing machine
