Earthing plastic PP biaxial geogrid price gravel ground grid for road soil stabilizer

Earthing plastic PP biaxial geogrid price gravel ground grid for road soil stabilizer

FOB Reference Price: Get Latest Price

≥5000 Square meters

US $0.1

≥10000 Square meters

US $0.09

≥15000 Square meters

US $0.08

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Outdoor

Design Style:: Traditional

Place of Origin:: Shandong, China

Brand Name:: huabo

Model Number:: TGDG80

Product name:: Fiberglass Geogrid

Raw Material:: Plastic PP

Material:: 100% PP (polypropylene)

Keywords:: Road Construction Composite Geogrids

Color:: Black

Tensile strength:: 25Kn/m--300Kn/m

Width:: 1-6m

Package:: PP Woven Bags

Feature:: High Tensile Strength

Certificate:: CE /ISO9001

Quick Details

Warranty:: 3 years

After-sale Service:: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other

Project Solution Capability:: graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others

Application:: Outdoor

Design Style:: Traditional

Place of Origin:: Shandong, China

Brand Name:: huabo

Model Number:: TGDG80

Product name:: Fiberglass Geogrid

Raw Material:: Plastic PP

Material:: 100% PP (polypropylene)

Keywords:: Road Construction Composite Geogrids

Color:: Black

Tensile strength:: 25Kn/m--300Kn/m

Width:: 1-6m

Package:: PP Woven Bags

Feature:: High Tensile Strength

Certificate:: CE /ISO9001

Products Description

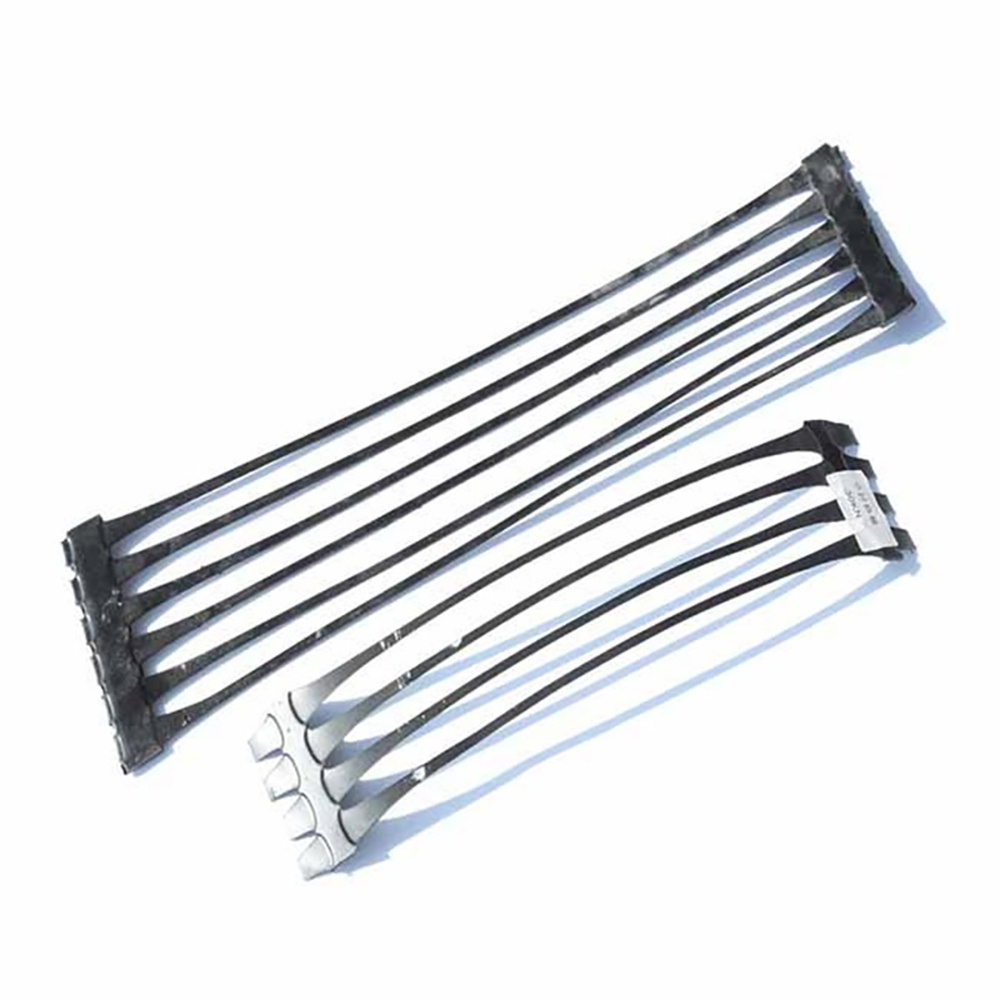

Unidirectional plastic geogrid

Uniaxial tensile plastic geogrid is a kind of reticulated geotextile with unidirectional tensile modulus and tensile strength,

which is made of PP or PE as the main raw material, added with certain anti ultraviolet and anti-aging agents, and processed by
extrusion and directional tension technology.

Item	TGSG35	TGSG50	TGSG80	TGSG120	TGSG160	TGSG200
Tensile Yield Force per Extended Meter ≥KN/m	35	50	80	120	160	200
Elongation at Yield ≤%	10
Tensile at 2% elongation ≥KN/m	10	12	26	36	45	56
Tensile at 5% elongation ≥KN/m	22	28	48	72	90	112

Item	TGSG35	TGSG50	TGSG80	TGSG120	TGSG160
Tensile Yield Force per Extended Meter ≥KN/m	35	50	80	120	160
Elongation at Yield ≤%	11.5
Tensile at 2% elongation ≥KN/m	7.5	12	21	33	47
Tensile at 5% elongation ≥KN/m	21.5	23.5	40	65	93

High tensile strength

The structural design of geogrid takes into account the rational arrangement and distribution of materials to ensure that the strength of the overall mesh structure is maximized. This structure helps to evenly distribute the load and improve the overall tensile properties of the geogrid.

good creep resistance

The molecular structure of polymer materials has a significant effect on their creep properties. By optimizing the arrangement and structure of molecular chains, the creep resistance of geogrids can be improved and the creep process can be slowed down, thus improving the stability of the structure.

Chemically stable

Geogrids are often used in contact with soils containing acidic or alkaline substances. Stabilized geogrids should have good resistance to acid and alkali attack by these substances in order to maintain their original physical and mechanical properties.

Construction cases
