single or multiple portable steel car garage

single or multiple portable steel car garage

FOB Reference Price: Get Latest Price

≥200 Square meters

US $36

≥800 Square meters

US $23

≥2000 Square meters

US $19

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: SG01

Roof Style:: Peak Top

Color:: Customized Color

Size:: Customized Size

Roof Material:: Steel sheet/sandwich panel

Usage:: Shed Car

Package:: Packed by the blanket

Accessories:: Anchors

Key word:: Car Packing

Application:: Storage Cars

Main frame:: Steel Beam

Quick Details

Sail Finishing:: Hot Dipped Galvanized

Place of Origin:: Shandong, China

Brand Name:: Huatuo

Model Number:: SG01

Roof Style:: Peak Top

Color:: Customized Color

Size:: Customized Size

Roof Material:: Steel sheet/sandwich panel

Usage:: Shed Car

Package:: Packed by the blanket

Accessories:: Anchors

Key word:: Car Packing

Application:: Storage Cars

Main frame:: Steel Beam

single or multiple portable steel car garage

Product Description

Technical information of low cost prefabricated steel structure building:

Wind resistance : Grade 11(wind speed≤111.5km/h)
Earthquake resistance : Grade 7
Live load capacity of roofing : 0.5kn/m2
External and internal wall heat transmission coefficient :0.35Kcal/m2hc
Second floor load capacity : 150 kg/m2
Live load of corridor is 2.0kn/ m2

ITEMS		SPECIFICATION
Main Steel Frame	Colum	Q235,Q355 Welded H Section Steel
	Beam	Q235,Q355 Welded H Section Steel
Secondary Frame	Purlin	Q235 C and Z purlin
	Knee Brace	Q235 Angle Steel
	Tie Rod	Q235 Circular Steel Pipe
	Brace	Q235 Round Bar
	Vertical and Horizontal Support	Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance System	Roof System	Roof Panel (EPS/Fiber Glass Wool/Rock Wool/PU Sandwich Panel or Steel Sheet Cover) and Accessories
	Wall System	Wall Panel (Sandwich Panel or Corrugated Steel Sheet
Window System	Aluminum Alloy Window/ PVC Window/Skylight
Door System	Sliding Sandwich Panel Door/Rolling Metal Door/PVC Door
Others	PVC Rainspout,Gutter etc
Wind Resisitance Grace	12 Grades
Earthquake-resistance	8 Grades
Structure life span	Up to 50 years
Temperature	Suitable temperature -50℃~+50℃
Certification	CE, SGS, ISO9001:2008, ISO 14001:2004
Finishing Options	Vast array of colors and textures available
Paint Options	Alkyd painting, two primary painting, two finish painting(gray paint, red paint, white paint, epoxy zinc etc.) or Galvanized.

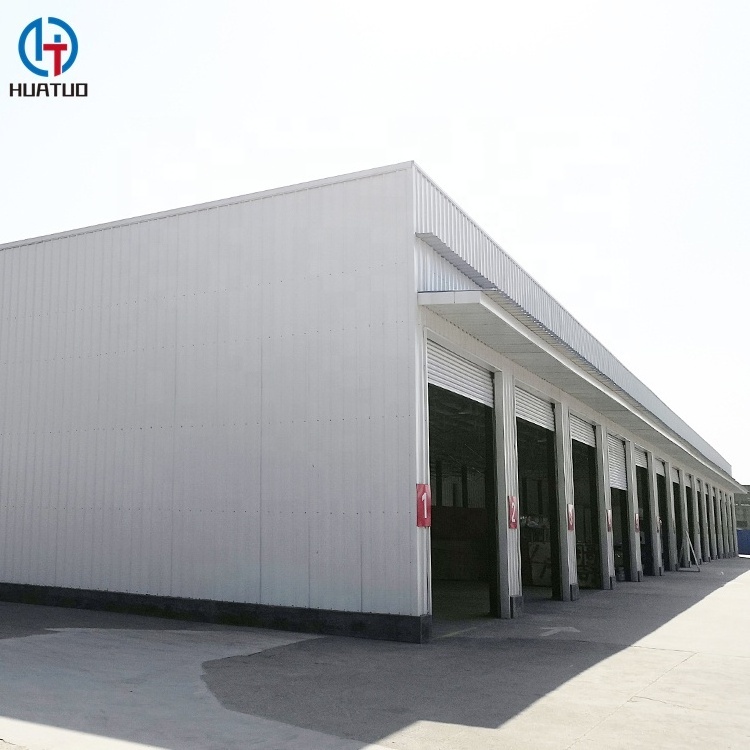

Project Shown

Some of Materials

1. Main Steel Structure
A.The Main steel structure: Q355B Q235B H column Beam

B.Secondary Steel Structure: Q355B Q235B Square tube/ angle iron/ circular tube etc
C.Purlin: Hot dipped galvanized C Z shape purlin
D.Floor decking: Hot dipped galvanized 688 / 750 type decking sheet

2. Roof and Wall System
A.Corrugated steel sheet

B.Sandwich Panel: EPS/ Rock wool/ Riberglass /Polyurethane(PU) sandwich panel
C. Steel wire / steel sheet+ Fiberglass wool roll

3. Bolt Accessories

Production Line

Our Services

Our Service and Team

Produce:
1. Production job based on steel building confirmed drawing.
2. We also can make the products with materials and drawing from customer.
3. Quality control work goes through every step during production.
4. Third Party Quality Check , customer on-site quality inspection and any other reasonable inspection way is ok.
After-sale service:
1.After production, we will supply steel building installation drawing
2.Send techinican to guide installation on site if customer request.
Additional service:
if need us check the other factory, or need us inspect the container loading , we are glad to help.
