Quick Details
-
Brand Name:
-
Quevinal
-
Model Number:
-
XTRA4415AN
-
Work Time (h):
-
24h
-
Max PV Power:
-
12V-39W, 24V-780W, 36V-1170W, 48V-1560W
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE
-
Warranty:
-
1-2 years
-
Product name:
-
Solar Charger Controller
-
Brand:
-
EPEVER
-
Function:
-
Auto Work
-
Display:
-
LCD Screen
-
Feature:
-
High Efficiency Charging Method
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Wind Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Quevinal
-
Model Number:
-
XTRA4415AN
-
Work Time (h):
-
24h
-
Max PV Power:
-
12V-39W, 24V-780W, 36V-1170W, 48V-1560W
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE
-
Warranty:
-
1-2 years
-
Product name:
-
Solar Charger Controller
-
Brand:
-
EPEVER
-
Function:
-
Auto Work
-
Display:
-
LCD Screen
-
Feature:
-
High Efficiency Charging Method
Product Description
Overview

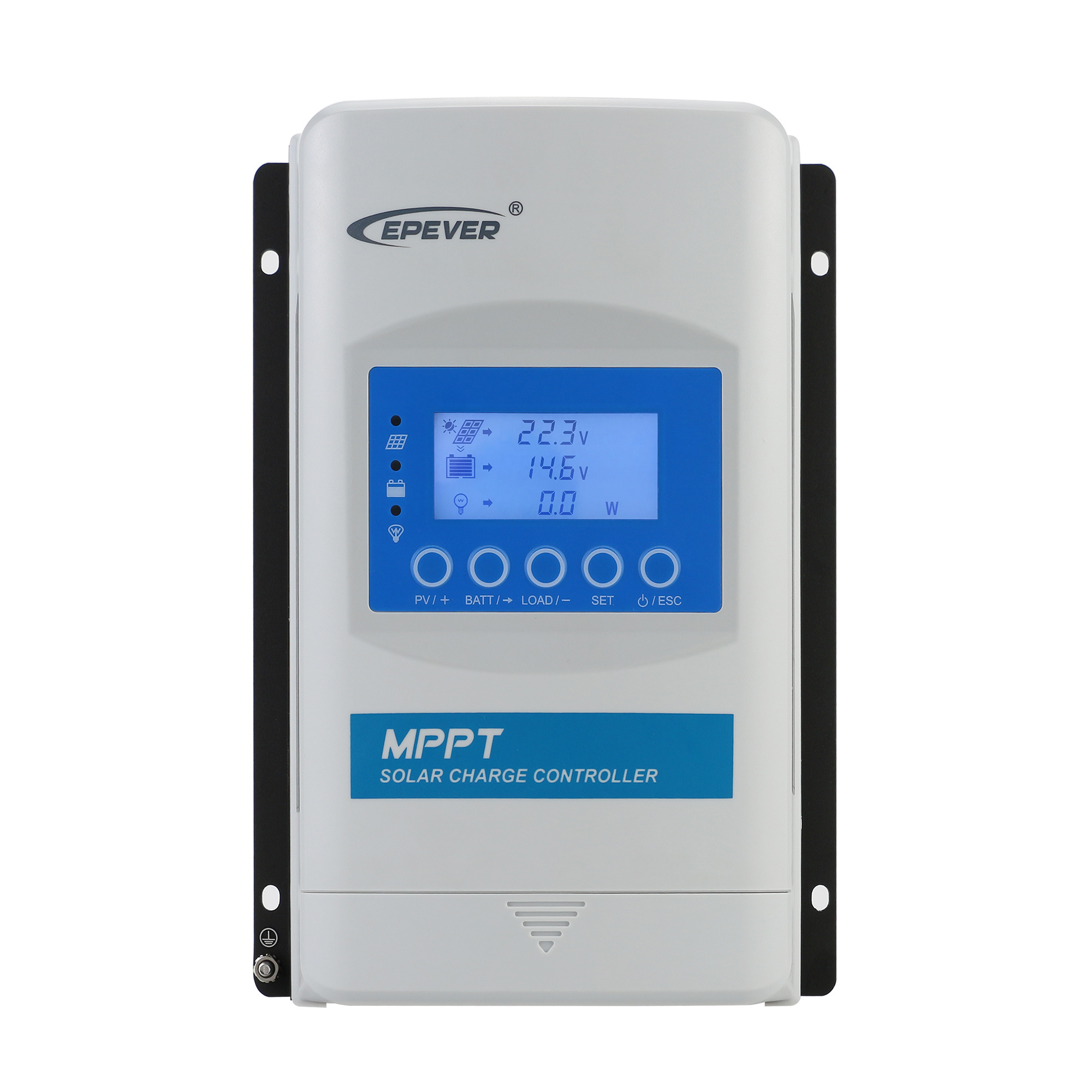

XTRA series are advanced maximum power point tracking(MPPT) charge controllers, for off-grid photovoltaic systems, with optional display units(XDB1/XDS1/XDS2).
XTRA series are advanced maximum power point tracking(MPPT) charge controllers, for off-grid photovoltaic systems, with optional display units(XDB1/XDS1/XDS2).
In order to maximize the energy harvest from PV arrays and simultaneously minimize the power loss within a wide range ofoperating conditions, XTRA series apply an advanced smart algorithm which results in up to 30% higher efficient charging, compared to a conventional pulse width modulation(PWM) charge controller. Xtra series controller have limit protection function on charging current & charging power, as well as auto derating power operation at high temperature; the above protection ensure the stability of system even at exceeded rated PV power and over temperature conditions. Protection class IP32 and isolated RS485 communication port further improve the controller's reliability under different application requirements. XTRA series controllers incorporate a self-adaptive three-stage charging algorithm based on a digital control circuit, which effectively prolongs the lifespan of battery and significantly improve the system performance. It also has extensive electronic protection for overcharge, over discharge, PV& battery reverse polarity and etc. to ensure the sustainability and durability of the off-grid solar system.
Features
1.Advanced MPPT technology & ultra-fast tracking speed is up to 99.5 % guaranteed
2. Maximum DC/DC transfer efficiency is as high as 98 %, full load transfer efficiency is up to 97.4%
3. Wide MPP operating voltage range
4.Low temperature protection and self activate function for lithium battery charging
5. Limit charging power & current over rated range
6.Real-time energy statistics function
7. Multiple load work modes
8.Comprehensive electronic protection
9. Compatible with lead acid and lithium-ion①batteries
10. Over temperature protection and power degrading in higher temperature
11. Optional LCD display units (XDB1/XDS1/XDS2) and accessories
12. High quality and low failure rate components of ST or IR to ensure service life
13. lsolated RS485 communication port with 5V/200mA protected output, with standard Modbus protocol
14.Monitor and set the parameters via APP or PC software
15.Dustproof and waterproof design with IP32② protection class
16.CE certification(LVD IEC62109, EMCEN3/1-6-61000)
Features
1.Advanced MPPT technology & ultra-fast tracking speed is up to 99.5 % guaranteed
2. Maximum DC/DC transfer efficiency is as high as 98 %, full load transfer efficiency is up to 97.4%
3. Wide MPP operating voltage range
4.Low temperature protection and self activate function for lithium battery charging
5. Limit charging power & current over rated range
6.Real-time energy statistics function
7. Multiple load work modes
8.Comprehensive electronic protection
9. Compatible with lead acid and lithium-ion①batteries
10. Over temperature protection and power degrading in higher temperature
11. Optional LCD display units (XDB1/XDS1/XDS2) and accessories
12. High quality and low failure rate components of ST or IR to ensure service life
13. lsolated RS485 communication port with 5V/200mA protected output, with standard Modbus protocol
14.Monitor and set the parameters via APP or PC software
15.Dustproof and waterproof design with IP32② protection class
16.CE certification(LVD IEC62109, EMCEN3/1-6-61000)
NOTE:
①If using Lithium battery, customer should ask help for "PCsoftware"to set the lithium battery parameters
②Ingress of solid objects: Protected against solid objects over 2.5mm
②Ingress of liquids: Protected against falling drops of water, if the case is disposed up to 15 from vertical
①If using Lithium battery, customer should ask help for "PCsoftware"to set the lithium battery parameters
②Ingress of solid objects: Protected against solid objects over 2.5mm
②Ingress of liquids: Protected against falling drops of water, if the case is disposed up to 15 from vertical
Datasheet
|
Item
|
XTRA 2210A
|
XTRA 3210A
|
XTRA 4210A
|
|||
|
Rated Charge Current
|
20A
|
30A
|
40A
|
|||
|
Battery Voltage Range
|
8~32V
|
|
|
|||
|
Max.PV Open Circuit Voltage
|
100V
|
|
|
|||
|
MPPT Voltage Range
|
(Battery voltage +2V)~72V
|
|
|
|||
|
Max. PV Input Power(WV)
|
260W/12V
|
390W/12V
|
520W/12V
|
|||
|
|
520W/24V
|
780W/24V
|
1040W/24V
|
|||
|
Equalization Voltage
|
Sealed:14.6V;Flooded:14.8V;User:17-9V
|
|
|
|||
|
Boost Votage
|
Gel:14.2V;Sealed:14.4V;Flooded:14.6V;User.17-9V
|
|
|
|||
|
Float Voltage
|
Gel/Sealed /Flooded:13.8V;User:17-9V
|
|
|
|||
|
Low Voltage Reconnect Voltage
|
Gel/Sealed/Flooded:12.6V;User:17-9V
|
|
|
|||
|
Low Voltage Disconnect Voltage
|
Gel/Sealed /Flooded:11.1V;User:17-9V
|
|
|
|||
|
Self-consumption
|
≤35mA(12V)
≤22mA(24V)
|
|
|
|||
|
Discharge circuitvoltage drop
|
≤0.23V
|
|
|
|||
|
Temperature Compensate
coefficient |
-3mVpC/2V(Default)
|
|
|
|||
|
Grounding
|
Common negative grounding
|
|
|
|||
|
RS485 interface
|
5VDC/200mA(RJ45)
|
|
|
|||
|
LCD backlight time
|
60S (Default)
|
|
|
|||
|
Environmental Parameters
|
|
|
|
|||
|
Working environment temperature
|
-30℃～+50℃(No LCD) -25℃～+50℃(LCD)
|
|
|
|||
|
Storage temperature range
|
-20°C~+70°C
|
|
|
|||
|
Relative humidity
|
≤95%, N.C
|
|
|
|||
|
Enclosure
|
IP33
|
|
|
|||
|
Mechanical Parameters
|
|
|
|
|||
|
Dimension
|
217×158×56.5mm
|
230×165×63mm
|
255×185×67.8mm
|
|||
|
Mounting dimension
|
160×149mm
|
173×156mm
|
200×176mm
|
|||
|
Mounting hole size
|
Φ5mm
|
|
|
|||
|
Terminal
|
6AWG(16mm 2 )
|
6AWG(16mm 2 )
|
6AWG(16mm 2 )
|
|||
|
Recommended cable
|
10AWG(4mm 2 )
|
8AWG(6mm 2 )
|
6AWG(10mm 2 )
|
|||
|
Weight
|
0.96kg
|
1.31kg
|
1.70kg
|
|||
|
Safety
|
EN/IEC62109-1EMC(Emission immunity)EN61000-6-3/EN61000-6-1
|
|
|
|||
