Quick Details
-
Model Number:
-
STAGE R18S
-
Dimension:
-
W595 x D700 x H520mm
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
800W
-
Format:
-
N/A
-
Product name:
-
Stage subwoofer
-
Max power:
-
1600W
-
Peak power:
-
3200W
-
Nominal impedance:
-
8 homs
-
Max SPL(Pmax@1m):
-
130dB@800W(133dB@1600W)
-
Sensitivity(1W@1m):
-
101dB
-
Frequency response:
-
45Hz - 300Hz
-
Speaker component:
-
18" x 1 voice coil 220 managic
-
Enclosure:
-
18mmT (0.7 inch) plywood and metal mesh
-
Application:
-
Ultra-low frequency compensation for sound reinforcement system
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Deken
-
Model Number:
-
STAGE R18S
-
Dimension:
-
W595 x D700 x H520mm
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
800W
-
Format:
-
N/A
-
Product name:
-
Stage subwoofer
-
Max power:
-
1600W
-
Peak power:
-
3200W
-
Nominal impedance:
-
8 homs
-
Max SPL(Pmax@1m):
-
130dB@800W(133dB@1600W)
-
Sensitivity(1W@1m):
-
101dB
-
Frequency response:
-
45Hz - 300Hz
-
Speaker component:
-
18" x 1 voice coil 220 managic
-
Enclosure:
-
18mmT (0.7 inch) plywood and metal mesh
-
Application:
-
Ultra-low frequency compensation for sound reinforcement system

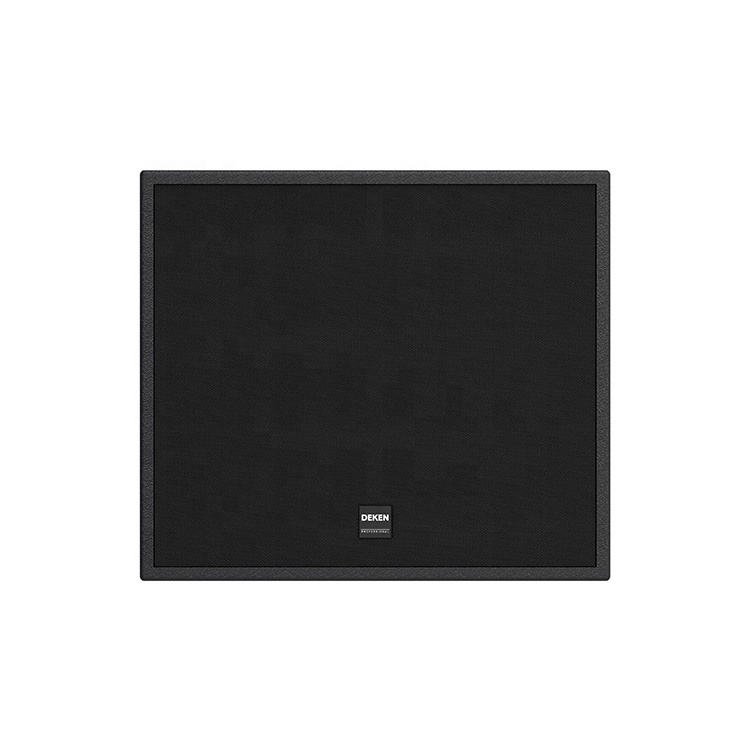

STAGE R18S 18 inch big power dj professional speakers audio sound system stage subwoofer speaker
Products Description
Descriptions
System type: 1 unit inverting subwoofer
Rated Power：800W
Max power：1600W
Peak power：3200W
Nominal impedance：8 Ω
Recommended power amplifier output rating：1000W—1400W@8 Ω
Sensitivity：101dB（1W@1m）
Max SPL（Pmax@1m）：130dB@800w (133dB@1600w)
Nominal coverage pattern（-6dB）：360°H×360°V
Frequency response（-10dB）：45Hz—300Hz
Speaker component：Ferrite driver 18″（460mm diameter 10mm voice coil 220 magnetic）×1
Crossover modes： ---
Connector：Speakon NL4×2（PIN1+/POS. PIN1-/NEG.）
Enclosure：18mm（0.7″）plywood
Color：Default is black, other colors can be customized
Dimensions：W595mm x D700mm x H520mm
Weight(each) ：41.45kg
Shipping weight：45.75kg
Reference applications:：Ultra-low frequency compensation for sound reinforcement system
Rated Power：800W
Max power：1600W
Peak power：3200W
Nominal impedance：8 Ω
Recommended power amplifier output rating：1000W—1400W@8 Ω
Sensitivity：101dB（1W@1m）
Max SPL（Pmax@1m）：130dB@800w (133dB@1600w)
Nominal coverage pattern（-6dB）：360°H×360°V
Frequency response（-10dB）：45Hz—300Hz
Speaker component：Ferrite driver 18″（460mm diameter 10mm voice coil 220 magnetic）×1
Crossover modes： ---
Connector：Speakon NL4×2（PIN1+/POS. PIN1-/NEG.）
Enclosure：18mm（0.7″）plywood
Color：Default is black, other colors can be customized
Dimensions：W595mm x D700mm x H520mm
Weight(each) ：41.45kg
Shipping weight：45.75kg
Reference applications:：Ultra-low frequency compensation for sound reinforcement system
|
System type：
|
1 unit inverting subwoofer
|
|
Rated power：
|
800W
|
|
Max power：
|
1600W
|
|
Peak power：
|
3200W
|
|
Nominal impedance：
|
8 Ω
|
|
Recommended power amplifier output rating：
|
1000W—1400W@8 Ω
|
|
Nominal sensitivity（1W@1m）：
|
101dB（1W@1m）
|
|
Max SPL（Pmax@1m）：
|
130dB@800w (133dB@1600w)
|
|
Frequency response （-10dB）：
|
45Hz—300Hz
|
|
Nominal coverage pattern （-6dB）：
|
360°H×360°V
|
|
speaker component：
|
Ferrite driver 18″（460mm diameter 100mm voice coil 220 magnetic）×1
|
|
|
|
|
Crossover modes：
|
---
|
|
Connector：
|
Speakon NL4×2（PIN1+/POS. PIN1-/NEG.）
|
|
Enclosure：
|
18mm（0.7″）plywood
|
|
Dimensions：
|
W595mm x D700mm x H520mm
|
|
Color：
|
Default is black, other colors can be customized
|
|
Weight（each）：
|
41.45kg
|
|
Shipping Weight：
|
45.75kg
|
|
Reference applications:
|
Ultra-low frequency compensation for sound reinforcement system
|
