Quick Details
-
Warranty(Year):
-
5-Year
-
Color Rendering Index(Ra):
-
97
-
Product Weight（kg）:
-
0.5
-
Input Voltage(V):
-
AC85-265V
-
Lamp Luminous Flux(lm):
-
900-3600
-
Model Number:
-
NC-TQ027B
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YP Nice
-
Product Name:
-
Recessed Downlight
-
Power:
-
9W-36W
-
Cutout Size (mm):
-
75*75/75*160/90*90...190*190
-
Beam Angle (°):
-
110°
-
Input Voltage:
-
AC85-265V
-
Configuration Information:
-
Bridgelux Chip+Dark energy driver
-
Emitting Color:
-
2700K-6500K (Single Color)
-
Reflector Color:
-
White, Black, Bright black, Bright silver, Rose Gold
-
Shape:
-
Round Square Optional
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Lamp Body Material:
-
Aluminum
-
Install Style:
-
Embeded
-
Warranty(Year):
-
5-Year
-
Color Rendering Index(Ra):
-
97
-
Product Weight（kg）:
-
0.5
-
Input Voltage(V):
-
AC85-265V
-
Lamp Luminous Flux(lm):
-
900-3600
-
Model Number:
-
NC-TQ027B
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YP Nice
-
Product Name:
-
Recessed Downlight
-
Power:
-
9W-36W
-
Cutout Size (mm):
-
75*75/75*160/90*90...190*190
-
Beam Angle (°):
-
110°
-
Input Voltage:
-
AC85-265V
-
Configuration Information:
-
Bridgelux Chip+Dark energy driver
-
Emitting Color:
-
2700K-6500K (Single Color)
-
Reflector Color:
-
White, Black, Bright black, Bright silver, Rose Gold
-
Shape:
-
Round Square Optional
Products Description

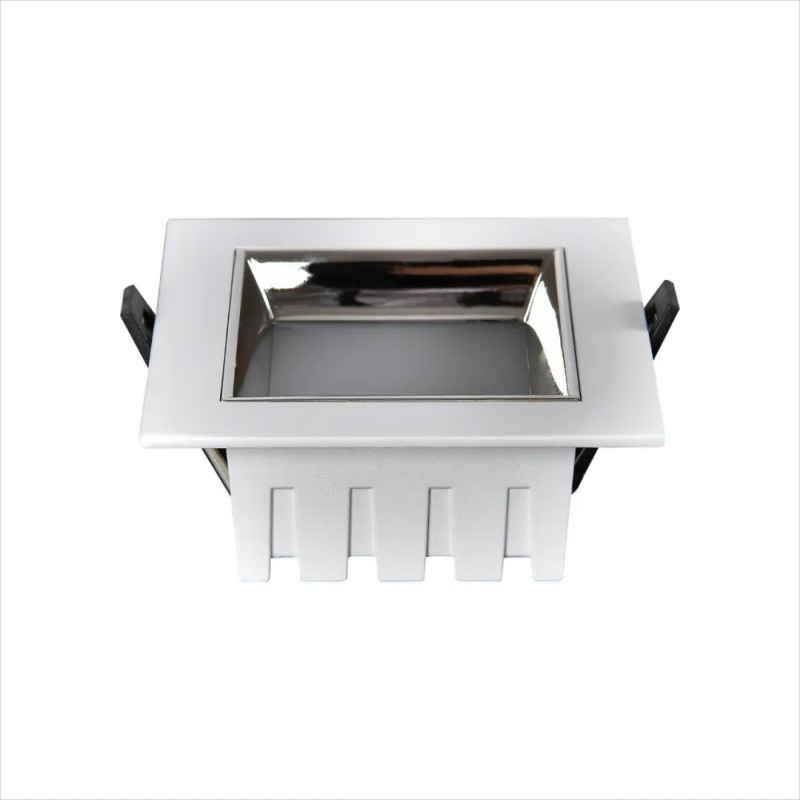

Recessed led downlight
Features
■The darklight reflector with 30° cut-off angle ensures visual comfort
■Wide beam angle reflector, to provide even light output
■Springs designed to improve installation efficiency
■Adjustable color temperature, tunable white from 2700K~6500K
|
Product Name
|
DOWNLIGHT TQ027B 9W-36W RECESS
|
|
|
|
|
|
|
|
|||||||
|
Item No.
|
NC-TQ027B
|
|
|
|
|
|
|
|
|||||||
|
Input Voltage
|
AC85V-265V
|
|
|
|
|
|
|
|
|||||||
|
Nominal Wattage (W)
|
9
|
2*9
|
12
|
2*12
|
15
|
18
|
24
|
36
|
|||||||
|
Length (mm)
|
100
|
183
|
120
|
220
|
150
|
175
|
197
|
230
|
|||||||
|
Width (mm)
|
100
|
100
|
120
|
120
|
150
|
175
|
197
|
230
|
|||||||
|
Height (mm)
|
43
|
43
|
43
|
43
|
45
|
50
|
50
|
55
|
|||||||
|
Cut-out - L (mm)
|
75
|
160
|
90
|
195
|
120
|
140
|
160
|
190
|
|||||||
|
Cut-out - W (mm)
|
75
|
75
|
90
|
90
|
120
|
140
|
160
|
190
|
|||||||
|
Lamp Body Material
|
Die-cast Aluminum
|
|
|
|
|
|
|
|
|||||||
|
Beam Angle
|
110°
|
|
|
|
|
|
|
|
|||||||
|
Color Temperature
|
2700K-6500K (Single Color)
|
|
|
|
|
|
|
|
|||||||
|
Reflector Color
|
White, Black, Bright black, Bright silver, Rose Gold
|
|
|
|
|
|
|
|
|||||||
|
Luminous Flux (lm)
|
900
|
1800
|
1200
|
2400
|
1500
|
1800
|
2400
|
3600
|
|||||||
|
Operating Mode
|
External LED driver
|
|
|
|
|
|
|
|
|||||||
|
Configuration
|
Bridgelux Chip+Dark energy driver
|
|
|
|
|
|
|
|
|||||||
|
Working Temperature
|
-20 to +50C
|
|
|
|
|
|
|
|
|||||||
|
Lifespan at 25 ℃
|
50000 h
|
|
|
|
|
|
|
|
|||||||
|
Benefits
|
In addition to standard products, we can also customize your size, color temperature, power function, luminous efficacy of light source, connection method, label style, your logo, packaging and so on.
|
|
|
|
|
|
|
|
|||||||
