1. Off Grid Solar Energy System will reduce the power bill as in the daytime it use solar panel, at night it use solar battery,
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
10YEARS
-
Brand Name:
-
GREEN WING, GREEN WING
-
Model Number:
-
670W
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2385*1303*35mm
-
Product name:
-

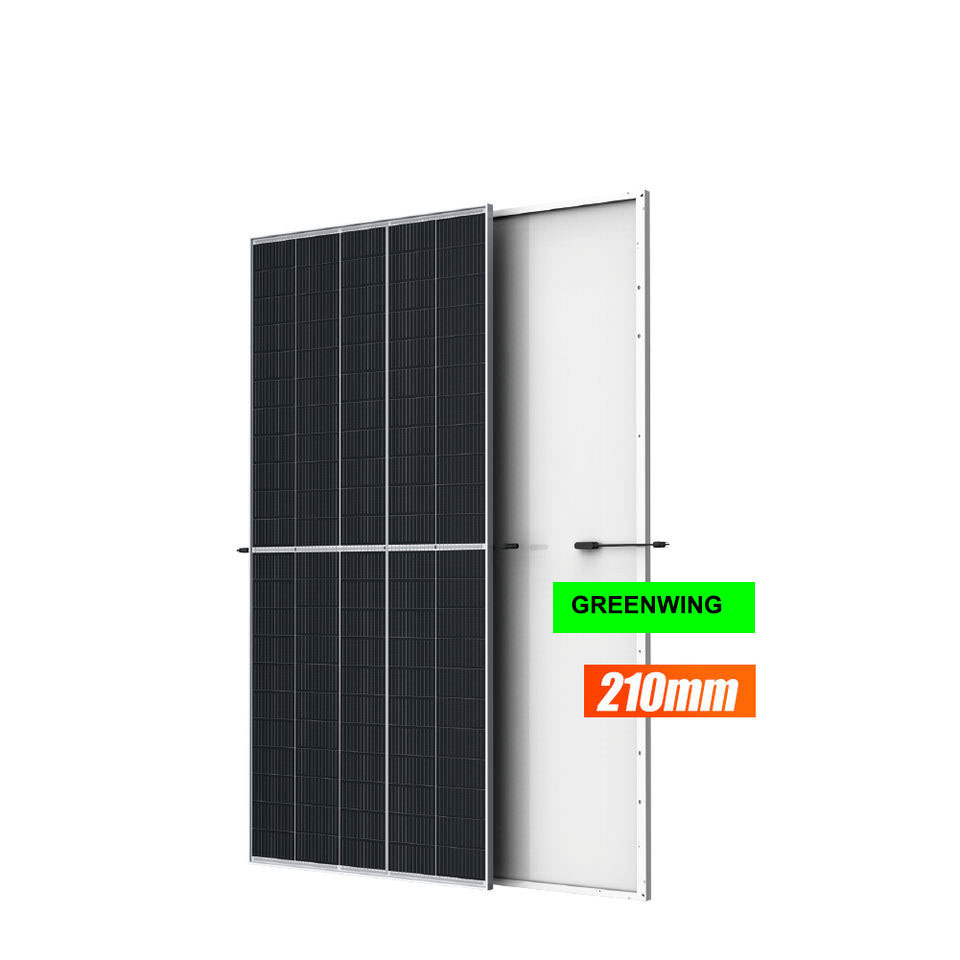

670W solar panel
-
Application:
-
Solar Power System Home
-
OEM Order:
-
Acceptable
-
Keyword:
-
Solar Panel
-
Weight:
-
32 kg
-
Color:
-
Customized Color
-
Certificate:
-
CE TUV, CE TUV
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
PERC, L-Series Solar Panel
-
Panel Efficiency:
-
21.5%, 21.5%
-
Warranty:
-
10YEARS
-
Brand Name:
-
GREEN WING, GREEN WING
-
Model Number:
-
670W
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2385*1303*35mm
-
Product name:
-
670W solar panel
-
Application:
-
Solar Power System Home
-
OEM Order:
-
Acceptable
-
Keyword:
-
Solar Panel
-
Weight:
-
32 kg
-
Color:
-
Customized Color
-
Certificate:
-
CE TUV, CE TUV
Product Description
Advantages of Solar On Grid Solar Energy System
Specification
|
Solar Panel(STC)
|
|
|
|
|
|
|||||
|
Module
|
Power
|
|
|
|
|
|||||
|
Peak Power Watts(Pmax/W)
|
650
|
665
|
660
|
665
|
670
|
|||||
|
Power Output Tolerance(W)
|
0~+5
|
|
|
|
|
|||||
|
Maximum Power Voltage(Vmp/V)
|
37.4
|
37.6
|
37.8
|
38.0
|
38.2
|
|||||
|
Maximum Power Current(Imp/A)
|
17.35
|
17.40
|
17.44
|
17.49
|
17.54
|
|||||
|
Open Circuit Voltage(Voc/V)
|
41.2
|
44.1
|
41.6
|
41.8
|
42.0
|
|||||
|
Short Circuit Current(Isc/A)
|
18.42
|
18.47
|
18.52
|
18.57
|
18.62
|
|||||
|
Module Efficiency(%)
|
20.9
|
21.0
|
21.2
|
21.3
|
21.5
|
|||||
STC:Irradiance 1000W/m2,Cell Temperature 25°C,Air Mass AM1.5.
*Measuring Tolerance: ±3%.
*Measuring Tolerance: ±3%.
|
Solar Panel(NOCT)
|
|
|
|
|
|
|||||
|
Module
|
|
|
|
|
|
|||||
|
Peak Power Watts(Pmax/W)
|
492
|
496
|
500
|
504
|
509
|
|||||
|
Maximum Power Voltage(Vmp/V)
|
34.9
|
35.1
|
35.3
|
35.5
|
35.7
|
|||||
|
Maximum Power Current(Imp/A)
|
14.09
|
14.13
|
14.18
|
14.22
|
14.27
|
|||||
|
Open Circuit Voltage(Voc/V)
|
42.6
|
42.8
|
43.0
|
43.2
|
43.4
|
|||||
|
Short Circuit Current(Isc/A)
|
14.85
|
14.88
|
14.92
|
14.96
|
15.00
|
|||||
NOCT:Irradiance 800W/m2,Ambient Temperature 20°C,Wind Speed 1m/s.
