Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
JSH
-
Model Number:
-
RVVP/KVVP/TVVP
-
Size:
-
0.1-300mm2
-
core:
-
1-30 Core
-
MOQ:
-
100 Meters
-
Certificate:
-
CCC ISO CE ROHS
-
Material:
-
Copper +PVC
-
Voltage:
-
300/500V 450/750V
-
Insulation:
-
PVC
-
Colour:
-
Black/Cunstomized
-
Standard:
-
BS IEC ASTM DIN
-
Package:
-
Wooden Durm
Quick Details
-
Insulation Material:
-
PVC
-
Application:
-
Underground
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
JSH
-
Model Number:
-
RVVP/KVVP/TVVP
-
Size:
-
0.1-300mm2
-
core:
-
1-30 Core
-
MOQ:
-
100 Meters
-
Certificate:
-
CCC ISO CE ROHS
-
Material:
-
Copper +PVC
-
Voltage:
-
300/500V 450/750V
-
Insulation:
-
PVC
-
Colour:
-
Black/Cunstomized
-
Standard:
-
BS IEC ASTM DIN
-
Package:
-
Wooden Durm
Products Description
specific parameter:
As a measuring, monitoring and control cable suitable for machine tool manufacturing, complete equipment installation projects,power stations, heating and air conditioning systems, refrigeration equipment, automatic office equipment, and data processing systems and other occasions.

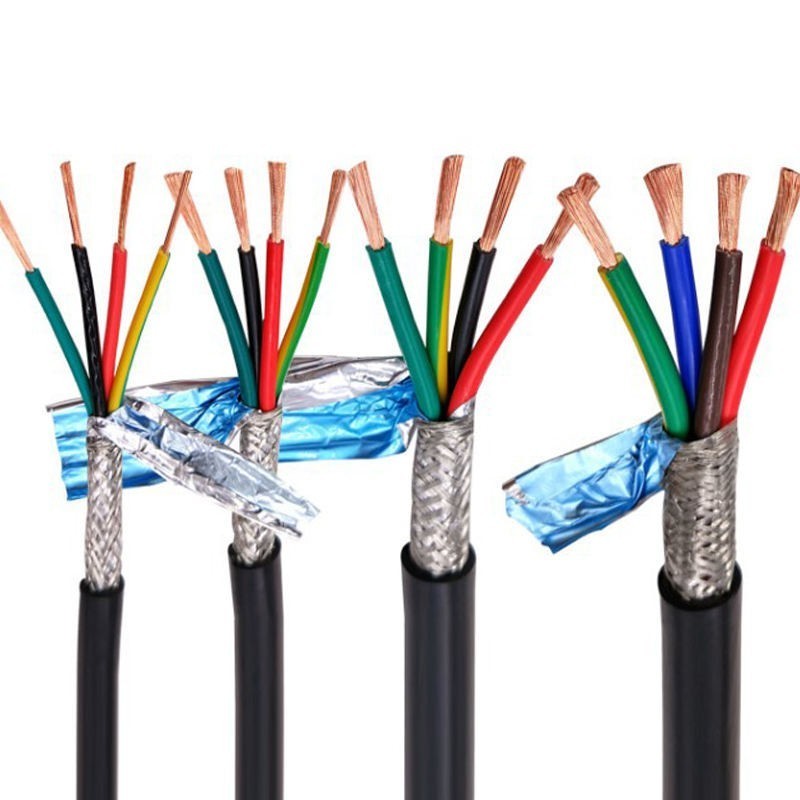

Polyvinyl chloride has good mechanical properties, excellent electrical insulation properties and excellent chemical stability.Due to the adoption of new aluminum foil Malaga copper mesh braided double shield, it can effectively resist electromagnetic interference.
Conductor : multi strand fine stranded oxygen free copper wire, conforming to VDE0295CLASS 5 standard.
Insulation : Special mixed PVC insulation.
Color :≤0.5mm Color expression, in line with JB8734 brown, black, light blue, purple, pink, orange, blue.
≥0.5mm black number white number number, more than 3 cores with yellow and green ground cable.
Lining : PP tape or foil Mylar wrap shielding.
Braid : bare copper wire or tinned copper wire braid shield.
Jacket : Mixed 70 degree PVC jacket, black (RAL9005) or grey (RAL7001)
DESINA standard color is also available according to customer requirements
Application standard :JB8734.5-1998 GB5023.7-2008
Minimum bending radius:
Mobile installation :15 X D(cable OD)
Fixed installation: 6 X D(cable OD)
Test voltage:
< 0.5mm² : 2000V
≥0.5mm² : 2500V
Operating temperature range :
Mobile installation :-10°C to +70°C
Fixed installation: -30°C to +70°C
Polyvinyl chloride has good mechanical properties, excellent electrical insulation properties and excellent chemical stability.Due to the adoption of new aluminum foil Malaga copper mesh braided double shield, it can effectively resist electromagnetic interference.
Conductor : multi strand fine stranded oxygen free copper wire, conforming to VDE0295CLASS 5 standard.
Insulation : Special mixed PVC insulation.
Color :≤0.5mm Color expression, in line with JB8734 brown, black, light blue, purple, pink, orange, blue.
≥0.5mm black number white number number, more than 3 cores with yellow and green ground cable.
Lining : PP tape or foil Mylar wrap shielding.
Braid : bare copper wire or tinned copper wire braid shield.
Jacket : Mixed 70 degree PVC jacket, black (RAL9005) or grey (RAL7001)
DESINA standard color is also available according to customer requirements
Application standard :JB8734.5-1998 GB5023.7-2008
Minimum bending radius:
Mobile installation :15 X D(cable OD)
Fixed installation: 6 X D(cable OD)
Test voltage:
< 0.5mm² : 2000V
≥0.5mm² : 2500V
Operating temperature range :
Mobile installation :-10°C to +70°C
Fixed installation: -30°C to +70°C
|
Construction
|
|
|
|
Standard
|
KVVP: GB9330.2KVVP2: GB9330.２
KVVP2-22: GB9330.３ KVVP3: GB9330.３ |
|
|
Conductor
|
Comply with GB/T3956 type 1 and type 2 stranded conductors
|
|
|
Insulation
|
Hard structure cable PVC/A type PVC insulation for fixed laying
|
|
|
Core Structure
|
allowed to fill a gap between the core wire, a cable package and allow an isolation layer (PP nonwoven fabric or band package)
without blocking insulation core. |
|
|
Jacket
|
ST1 PVC sheath
|
|
|
Screen
|
KVVP: braided round copper wire or tinned round copper wireKVVP2: using 0.05~0.10MM soft copper tape overlapping wrapping
KVVP2-22: using 0.05~0.10MM soft copper tape overlapping wrapping KVVP3: 0.05~0.10mm aluminum-plastic composite tape is used for overlapping wrapping, and the lower layer is attached with a drain wire not less than 0.2mm2 |
|
|
Armored
|
KVVP2-22: thickness of painted steel or galvanized steel armor of 0.2mm, meet the requirements of GB / T2952.1, the front armor
layer of the inner liner allow |
|
|
Technical data
|
|
|
|
Rated voltage
|
U0/U 450/750V
|
|
|
Radiation resistance
|
Radiation resistance 8×107cJ/kg
|
|
|
Flame retardancy
|
Pass GB/T18380 flame retardant test
|
|
COMPANY PROFILE
Application
PACKING AND SHIPMENT
FAQ
Q1. Can I have a sample order?
A: Certainly, free sample order is available for your side to check its quality and performance.
Q2. Do you offer guarantee for the products?
A: Yes, normally we offer 1-3 years warranty for our products.
Q3. What about the lead time?
A: Usually, the sample will take 2-3 days, and normal orders will take 10-13 days. For customized products, it will take 17-20 days. Welcome to contact with us for more details.
Q4. Do you have any MOQ for cables' order?
A: MOQ is 100 meter for all type of cables.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 5-7 days to arrive. Also, by airline , by rail and by sea shipping are
optional.
Q6. Is it available to print my logo on product?
A: Certainly, please confirm the design firstly based on our sample, and then inform us formally before our production.
Q7. How to deal with the faulty product?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.3%. And secondly, during the guarantee period, we will send replacement with new order for small quantity. For defective batch products, we can discuss the solution including re-call according to real situation.
A: Certainly, free sample order is available for your side to check its quality and performance.
Q2. Do you offer guarantee for the products?
A: Yes, normally we offer 1-3 years warranty for our products.
Q3. What about the lead time?
A: Usually, the sample will take 2-3 days, and normal orders will take 10-13 days. For customized products, it will take 17-20 days. Welcome to contact with us for more details.
Q4. Do you have any MOQ for cables' order?
A: MOQ is 100 meter for all type of cables.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 5-7 days to arrive. Also, by airline , by rail and by sea shipping are
optional.
Q6. Is it available to print my logo on product?
A: Certainly, please confirm the design firstly based on our sample, and then inform us formally before our production.
Q7. How to deal with the faulty product?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.3%. And secondly, during the guarantee period, we will send replacement with new order for small quantity. For defective batch products, we can discuss the solution including re-call according to real situation.
