Quick Details
-
Brand Name:
-
Huajing
-
Product name:
-
Refrigeration Unit
-
Application:
-
Refrigeration Parts
-
Refrigerant:
-
R404a
-
Brand:
-
huajing
Quick Details
-
Weight (KG):
-
3.5
-
Core Components:
-
Thermoelectric Materials, Heat Sink, Cold Side Heat Exchanger
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Huajing
-
Product name:
-
Refrigeration Unit
-
Application:
-
Refrigeration Parts
-
Refrigerant:
-
R404a
-
Brand:
-
huajing
Product Description
Specification
|
Name
|

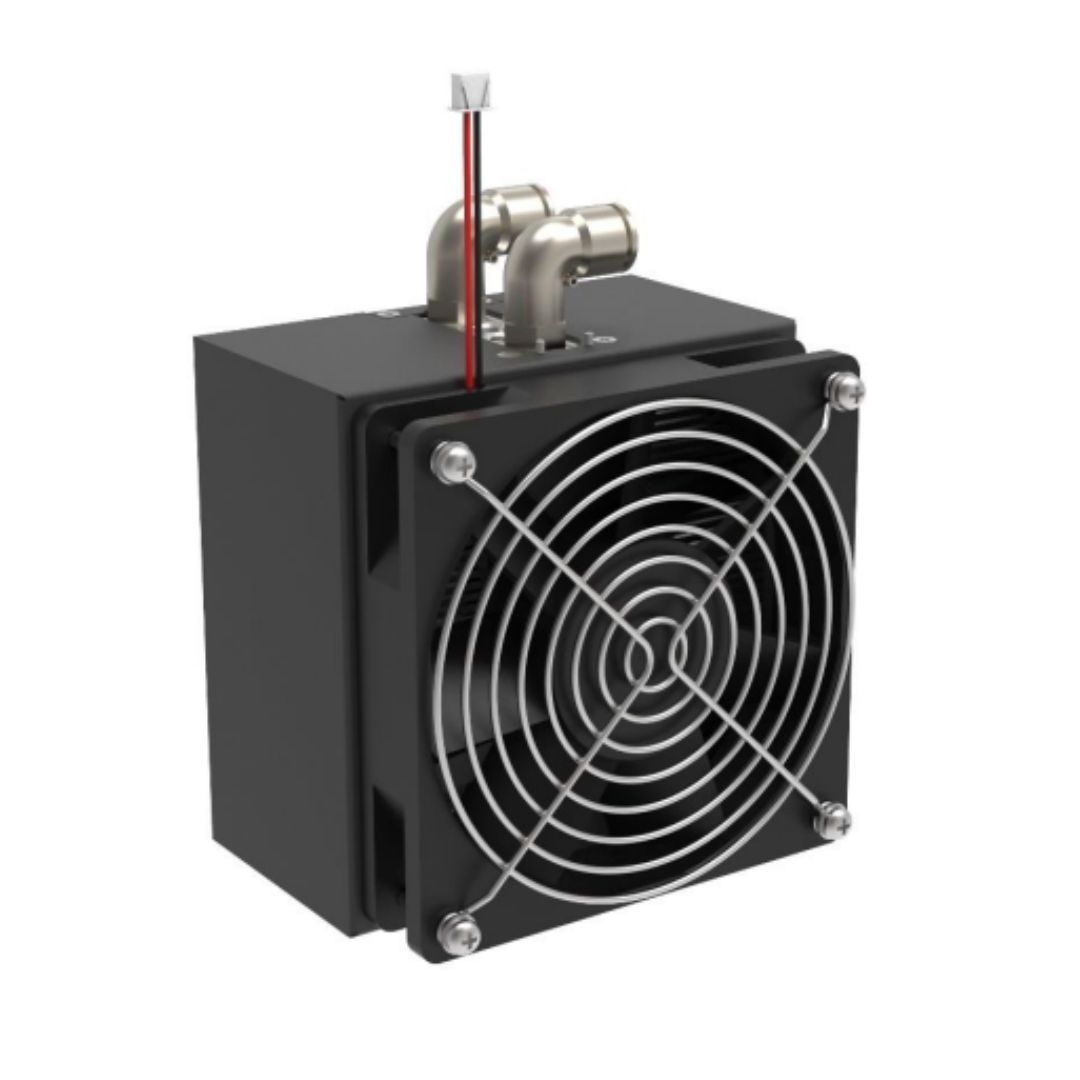

Thermoelectric Cooler Assembly
|
|
Model
|
TP22056
|
|
Rated Operating Voltage(V)
|
24VDC
|
|
Operating Current(A)
|
8.2A/10.0A
|
|
Cooling Capacity(W)
|
150W（△T=0， Th=50℃）
|
|
Rated fun speed(rpm/min)
|
4000rpm/min
|
|
Noise speed(dB)
|
≤62dB
|
|
Water connection size
|
rotary joint(8mm OD Hose)
|
|
Heat transfer medium
|
deionized water
|
|
Dimension(mm,L*W*H)
|
155*155*164mm
|
|
Operating Temperature(℃)
|
5℃~40℃
|
|
Operating Humidity(%)
|
15%~80%
|
|
Storage Temperature(℃)
|
-20℃~60℃
|
|
Storage Humidity(%)
|
15%~80%
|
|
Net Weight(Kg)
|
1.9kg
|
|
Application
|
Laser,CNC,Medical,Cosmetology,Sensing
|
