18mm NPN DC6-36V 200mA Automatic Turn Off Light Sensor Switch Explosion Proof car proximity sensor Switch

18mm NPN DC6-36V 200mA Explosion Proof car proximity sensor

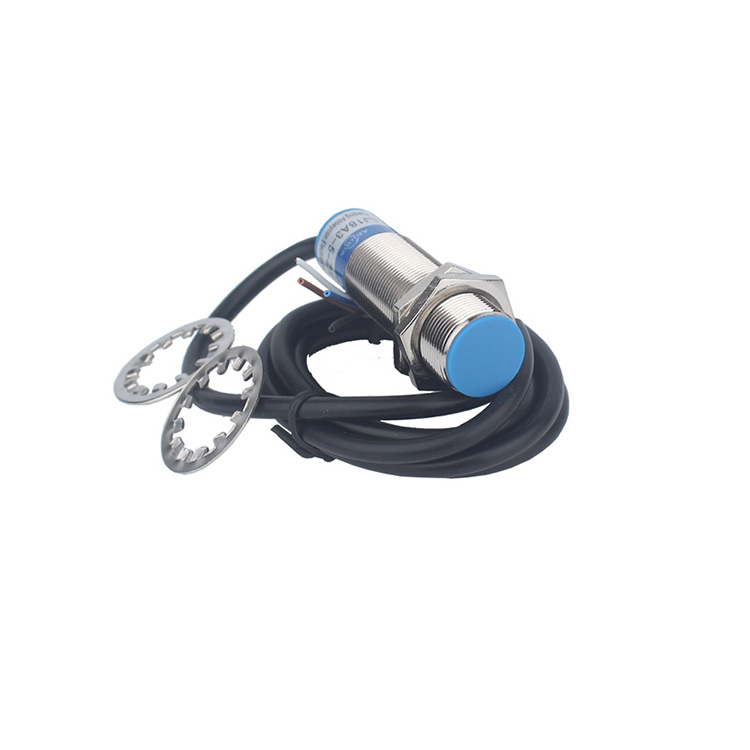

· Item Name : Inductive Proximity Switch;

· Model : LJ18A3-8-Z/BX;

· Package Qty: 1 Piece Switch

· Wire Type : DC 3 Wire Type (Black, Brown, Blue);

· Switch Appearance Type : Cylinder Type;

· Material : Plastic, Alloy;

· Theory : Inductive Sensor;

· Output Type: NPN NO(Normal Open);

· Diameter of Head : 18mm;

· Detecting Distance : 8mm

· Supply Voltage : DC 6-36V;

· Current Output : 300mA;

· Detect Object : Metal;

· Operating Temperature : -30 °C to +65 °C (Non-freezing Condition);

· Cable Length : 130cm*AWG22

It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching.
When proximity switch is close to some target object, it will send out control signal.
It's widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial etc.

Note: If you need other items, please check our Specification Sheet and inform us Item No. by mail, thanks!

When proximity switch is close to some target object, it will send out control signal. It is widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial ect. It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching.

Q1. What is your terms of packing? proximity switch
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q8. What is proximity switch?

A: Proximity switch is a position switch that can be operated without mechanical direct contact with the moving parts. When the object approaches the sensing surface of the switch to the working distance, the switch can be operated without mechanical contact and any pressure is applied, thereby driving the DC electric appliance or provide control instructions to a computer (plc) device.

If you have any other questions, please send us an enquiry,we will  reply you ASAP.
