Quick Details
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
600 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
30x60x10cm
-
Power (kW):
-
0.4
-
Weight (KG):
-
39
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Overseas service center available
-
Power(W):
-
400w
-
Weight:
-
35kg
-
Local Service Location:
-
None
-
After Warranty Service:
-
Online support
-
Showroom Location:
-
None
-
Marketing Type:
-
New Product 2020
-
Certification:
-
CE ISO
Quick Details
-
Working Table Size(mm):
-
300x600
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
600 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
30x60x10cm
-
Power (kW):
-
0.4
-
Weight (KG):
-
39
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Overseas service center available
-
Power(W):
-
400w
-
Weight:
-
35kg
-
Local Service Location:
-
None
-
After Warranty Service:
-
Online support
-
Showroom Location:
-
None
-
Marketing Type:
-
New Product 2020
-
Certification:
-
CE ISO

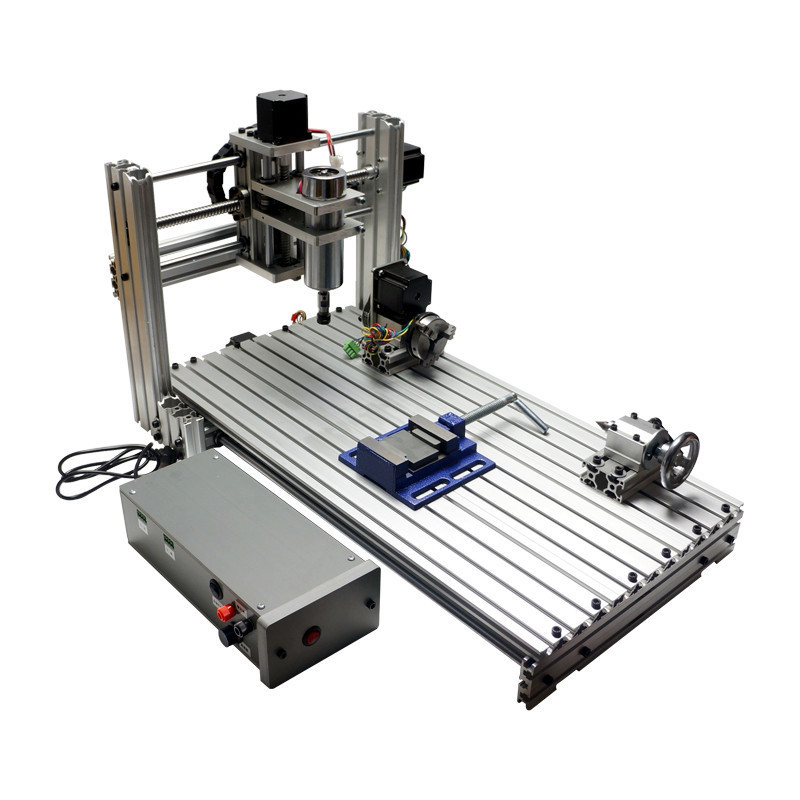

DIY CNC 3060 4Axis Engraving Milling Machine 400W Mach3 Software Controller
This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;
Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;
It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.
Warranty
More Precise Stepping Motor
Simple operation and installation
1 year machine part and 6 months electrical parts , stepping motor , spindle Free Warranty
Model and Technical Parameters
|
MODEL |
3060 metal |
|||
|
Attribute |
|
4axis |
|
|
|
Axis |
|
|
4axis |
|
|
Interface |
|
|
USB Port |
|
|
Spindle Motor: |
|
400W |
|
|
|
Weigh |
|
|
35 |
|
|
Max. working stroke |
XYZ=290*570*95mm |
|||
|
Acceptable material thickness |
≤ 120mm |
|||
|
Rail type |
X Y 1605 ball screw, Z 1204 ball screw, 12 mm optical axis |
|||
|
Spindle motor |
400W DC spindle , 0-9000r/min |
|||
|
Collet type |
ER11,1/8"(3.175mm) Collet |
|||
|
Stepper motor and drive |
||||
|
Repeat positioning Accuracy |
0.02mm |
|||
|
Communication interface |
USB Port |
|||
|
System requirements |
Win-XP / Win 7 Win 8 Win10 |
|||
|
Software Co patability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code |
G code/.nc/.ncc/.tab/.txt |
|||
|
Machine weight |
31kg |
|||
|
Rotation Axis (4 th Axis) Description: |
Center height: H = 51mm Maximum turning diameter: ≤ 81mm Deceleration ratio: 4:1 Stepper motor: 57HS56 Weight: 4.0KG |
|||
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free , 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
