Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
QDZD
-
Year:
-
2020
-
Voltage:
-
OPTIONAL
-
Dimension(L*W*H):
-
1300*2500*2120mm
-
Weight (T):
-
7 T
-
Model Number:
-
ZD214*8
-
Motor Power (kw):
-
36 kw
-
Type:
-
hot press machine
-
Size(Feet):
-
4*8
-
Dimension of hot platens:
-
1300*2500 mm
-
Nominal pressure:
-
1.0mn
-
Number of layers:
-
1
-
Max service opening:
-
80-120mm
-
Weight:
-
7000kg
-
Power(W):
-
5.5kw
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
80-150 mm
-
Return Force (kN):
-
2000 kN
-
Place of Origin:
-
China
-
Brand Name:
-
QDZD
-
Year:
-
2020
-
Voltage:
-
OPTIONAL
-
Dimension(L*W*H):
-
1300*2500*2120mm
-
Weight (T):
-
7 T
-
Model Number:
-
ZD214*8
-
Motor Power (kw):
-
36 kw
-
Type:
-
hot press machine
-
Size(Feet):
-
4*8
-
Dimension of hot platens:
-
1300*2500 mm
-
Nominal pressure:
-
1.0mn
-
Number of layers:
-
1
-
Max service opening:
-
80-120mm
-
Weight:
-
7000kg
-
Power(W):
-
5.5kw

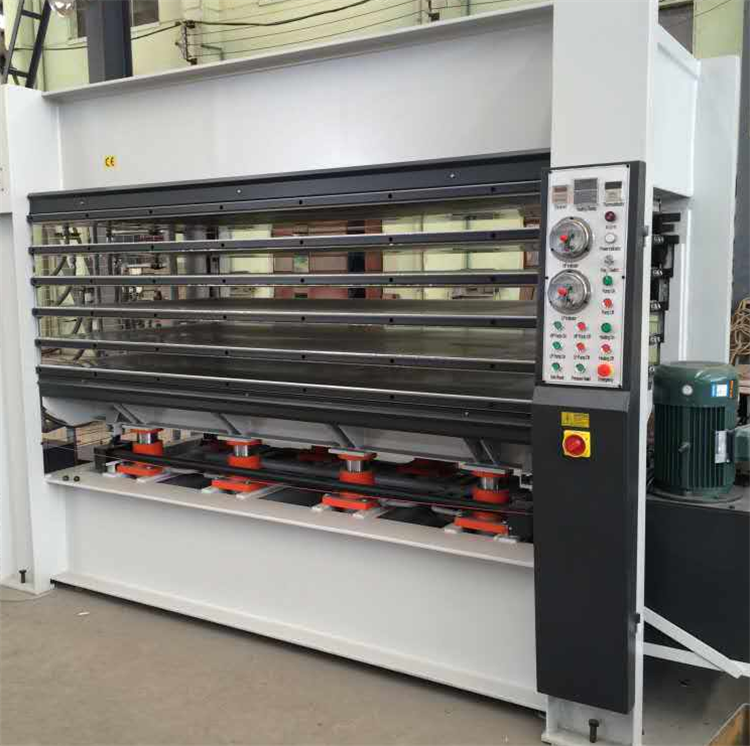

woodworking hot press machine hydraulic hot presser
Technical specification:
| Model | ZD214*8/12#1 | ZD214*812#2 | ZD214*8/12#3 | ZD214*8/12#4 | ZD214*8/20#3 | ZD214*8/20#6 |
| Total pressure(KN) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Platen No & size (mm) | 1300*2500*42 | 1300*2500*42 | 1300*2500*42 | 1300*2500*42 | 1300*2500*42 | 1300*2500*42 |
| Opening(mm) | 80-150 | 80-150 | 80-150 | 80-150 | 80-150 | 80-150 |
| Working layer numbers | 1 | 2 | 3 | 4 | 3 | 6 |
| Cylinder No & Dia(mm) | 6*φ100 | 6*φ100 | 6*φ100 | 6*φ100 | 8* φ100 | 8* φ100 |
| Heating method | electric heated conduction oil | electric heated conduction oil | electric heated conduction oil | electric heated conduction oil | electric heated conduction oil | electric heated conduction oil |
| Hot platen open way | automatically | automatically | automatically | automatically | automatically | automatically |
| Closing speed(mm/s) | 40 | 40 | 40 | 40 | 40 | 40 |
this machine is widely used by manufacturers who produce furniture, sound boxes, woodworking, upholstery,
advertising boards, plastics, veneers, plywood, shaving boards, laminated boards and any other woodworking
casting dies
Functions
1, Leveling and shaping for some kinds of plates.
2, Working quality to be good, pressing fast and efficient.
Features
1, The woodworking hot press is widely used, especially suitable for manufacturing of plywood, building templates,
block board, decorative planels, floor and laminated Veneer Lumbe.
2, The main frame is welded of high-quality steel plate. Reasonable designed, for high strength and pressure.
3, Electrical automation, simple operation, reliable, automatic temperature and time control to ensure product quality.
4, Hydraulic circuit adopts integrated block combination, and the structure is compact.
the system of woodworking hot press is accurate, reliable,
high work efficiency
5, The heating method is steam or heat conduction oil to ensure temperature uniformity of heating platen.
6, The motor power is low. it can decline rapidly without power, saving energy and reducing cost.
Main market
Which have been exported to a lot of countrise and Regions . Sich as Europe , Russia, Southeast Asia .
Middle East . North America and south America , Australia .
Quality certificate
ISO9001 and CE security certificate
Business terms :
Payment terms: TT or L./C with deposit
Delivery time : Within 30 days
Packing :plywood box
