High-energy X-ray stimulates atomic electron shell ，the extranuclear electron of atoms will jump and secon dary X-ray energy releases. Because the energy that different element releases possesses diff erent characteristic.
Detection system can measure the energy and quantity to calculate the elements content.
.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
maxwave
-
Model Number:
-
X-MAY05
-
Product name:
-
Metal Detection Machine
-
Usage:
-
Gold Detector Hunting
-
Brand:
-
Maxwave
Quick Details
-
Warranty:
-
3 years
-
Type:
-
New product 2023
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
maxwave
-
Model Number:
-
X-MAY05
-
Product name:
-
Metal Detection Machine
-
Usage:
-
Gold Detector Hunting
-
Brand:
-
Maxwave
Gold detector
Automatic
Gold detecting
Machine
X-ray
Parameters
|
Specification parameters ：
|
|
|
|
|
|
|
|
|||||||
|
Brand
|
|
|
|
|
|
|
|
|||||||
|
Model
|
X-MAY05
|
X-MAY10
|
|
X-MAY72
|
|
X-MAY72-Pro
|
|
|||||||
|
Detector Type
|
Proportional Counter tube
|
|
|
Si-pin (USA)
|
|
SSD (USA)
|
|
|||||||
|
Multichannel Analyzer
|
Multi channel simulation
|
|
|
|
|
|
|
|||||||
|
Sample Chamber Size
|
310 *280 * 60
(mm) |
|
380 *380 * 60 (mm)
|
|
|
|
|
|||||||
|
Test Time
|
10sec ~ 50sec
|
|
10sec ~ 50sec
|
|
|
|
10sec ~ 50sec
|
|||||||
|
Measuring Element
|
Au, Ag, Pt, Pd,Cu
|
|
Au, Ag, Pt, Pd, Cu, Mo,
Mn ,Ga,Co ,Ir(Ir≥ 5%) |
|
|
|
|
|||||||
|
Analysis Range
|
1ppm to 99.99%
|
|
|
|
|
|
|
|||||||
|
Accuracy
|
0.1% (Au≥96%)
|
|
0.1% (Au≥96%)
|
|
|
|
0.01% (Au≥96%)
|
|||||||
|
Sample Form
|
Solid, powder, liquid
|
|
|
|
|
|
|
|||||||
|
Tube Voltage
|
5KV ~ 50KV
|
|
|
|
|
|
|
|||||||
|
High Voltage Power Supply
|
0 ~ 50KV
|
|
|
|
|
|
|
|||||||
|
Camera
|
HD camera
|
|
|
|
|
|
|
|||||||
|
Filters
|
Selectable customized switches
|
|
|
|
|
|
|
|||||||
|
Analysis Software
|
Qualitative and quantitative analysis software
|
|
|
|
|
|
|
|||||||
|
External Dimensions
|
400 * 430 *
350(mm) |
|
480 * 480 * 390 (mm)
|
|
|
|
|
|||||||
|
Weight
|
33Kg
|
|
38Kg
|
|
|
|
|
|||||||
|
Instruments Environmental Requirements
|
|
|
|
|
|
|
|
|||||||
|
Ambient Temperature
|
-5 °C ~ 40 °C (Suggested that in air conditioning room)
|
|
|
|
|
|
|
|||||||
|
Relative Humidity
|
15% ~ 90%
|
|
|
|
|
|
|
|||||||
|
Power Requirements
|
AC 220V ± 5V, 50/ 60 Hz No high power electromagnetic and vibration interference
|
|
|
|
|
|
|
|||||||
Product Detail

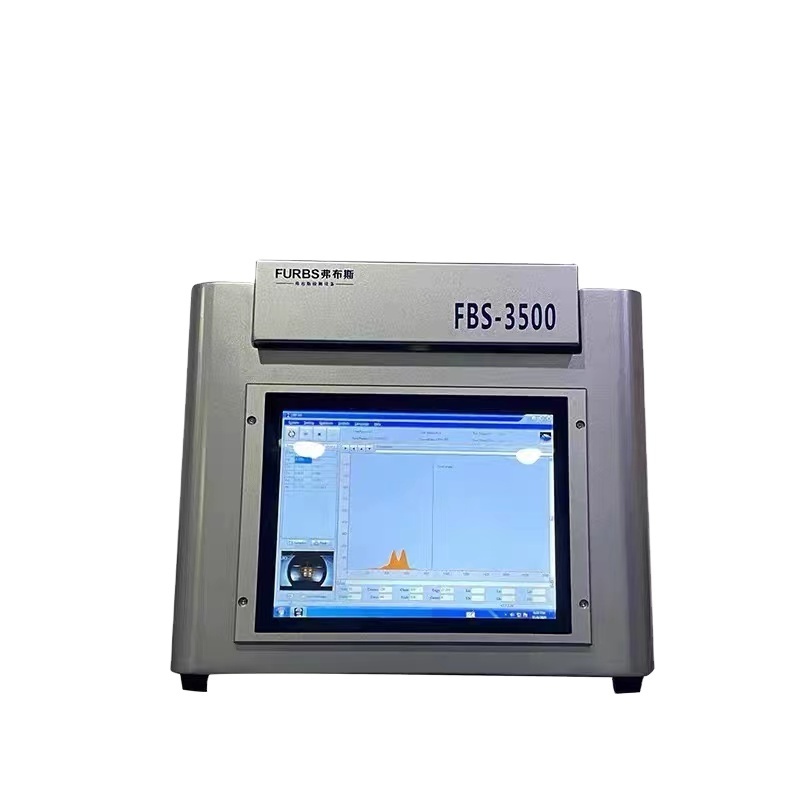

X-RAY FLUORESCENCE SPECTROMETER
Fluorescence spectrum analyzers that Instrument ( Instrument Co.,Ltd. ) produces provide a detection technology of convenient
operation ,competitive price, stable and accurate performance. We don't need to put test tools into the tested sample materials,
and do not damage the samples being measured, then we can obtain the metal elements information of jewelry. The whole testing
process only takes couple of minutes. All the liquid, solid and powder samples are available
operation ,competitive price, stable and accurate performance. We don't need to put test tools into the tested sample materials,
and do not damage the samples being measured, then we can obtain the metal elements information of jewelry. The whole testing
process only takes couple of minutes. All the liquid, solid and powder samples are available
Easy to operate
Integrated an inbuilt computer with high industrial motherboard and multi- point
hand touch, you don’t need to prepare other computers, it can bring you super smooth experience feelings
hand touch, you don’t need to prepare other computers, it can bring you super smooth experience feelings
