- Product Details
- {{item.text}}
Quick Details
-
Lift Speed:
-
10m/min., 5m/min.
-
Weight (KG):
-
25 kg
-
After-sales Service Provided:
-
Video technical support,Online support,Spare parts
-
Color:
-
Red/yellow/ blue(Customize)
-
Local Service Location:
-
None
-
Voltage:
-
AC 220/230/240v 50/60Hz
-
Lifting height:
-
12m-18m Customize
Quick Details
-
Warranty:
-
One Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
kaixun
-
Lift Speed:
-
10m/min., 5m/min.
-
Weight (KG):
-
25 kg
-
After-sales Service Provided:
-
Video technical support,Online support,Spare parts
-
Color:
-
Red/yellow/ blue(Customize)
-
Local Service Location:
-
None
-
Voltage:
-
AC 220/230/240v 50/60Hz
-
Lifting height:
-
12m-18m Customize
Product Description

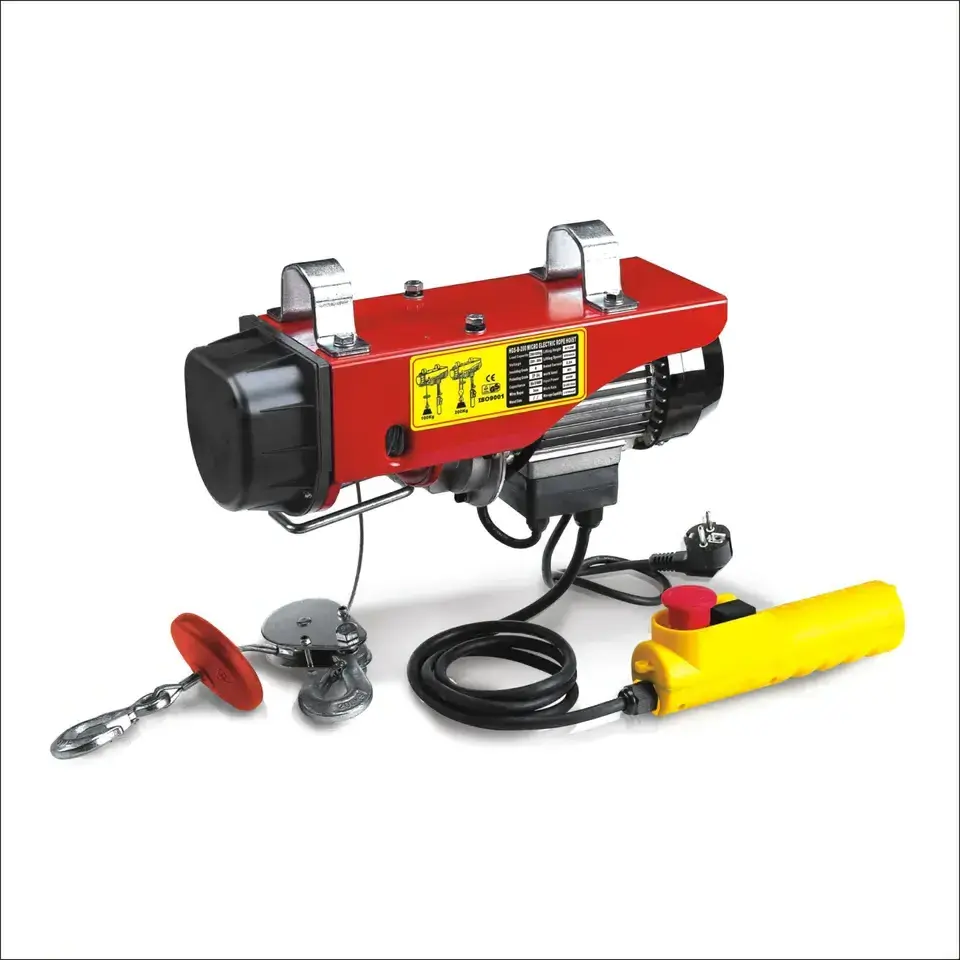

PA-400 Electric Hoist
Approved by CE, GS, EMC and RoHS certification.
With the Emergency Stop Switch, Anti-heat device, IP54
Rated Volt: 220/230V
Input Power: 1300W
Lifting Weight: 400/800kg
Lifting Height: 6/12m, 9/18m(Max. )
Lifting Speed: 10/5 m/min
Quantity/Carton: 2PCS
Packing Dimension: 54x50.5x17.5cm
G. W. /N. W.: 41/39kg
With the Emergency Stop Switch, Anti-heat device, IP54
Rated Volt: 220/230V
Input Power: 1300W
Lifting Weight: 400/800kg
Lifting Height: 6/12m, 9/18m(Max. )
Lifting Speed: 10/5 m/min
Quantity/Carton: 2PCS
Packing Dimension: 54x50.5x17.5cm
G. W. /N. W.: 41/39kg
Product Specifications
|
Model
|
HDGD-200CA
|
|
HDGD-250CA
|
|
HDGD-300CA
|
|
HDGD-400CA
|
|
|||||||
|
Method of use
|
Single
-hook |
Double
-hook |
Single
-hook |
Double
-hook |
Single
-hook |
Double
-hook |
Single
-hook |
Double
-hook |
|||||||
|
Rated volt(V)
|
AC 100/110/120 220/230/240 50/60Hz
|
|
|
|
|
|
|
|
|||||||
|
Rated capacity(kg)
|
100
|
200
|
125
|
250
|
150
|
300
|
200
|
400
|
|||||||
|
Lifting speed
(m/min)
|
10
|
5
|
10
|
5
|
10
|
5
|
10
|
5
|
|||||||
|
Lifting height(m)
|
12
|
6
|
12
|
6
|
12
|
6
|
12
|
6
|
|||||||
|
Load of Moving Vehicle(t)
|
0.5
|
|
|
|
|
|
|
|
|||||||
|
Speed of Moving Vehicle(m/min)
|
13
|
|
|
|
|
|
|
|
|||||||
|
Qty./CTN(pcs)
|
1
|
|
|
|
|
|
|
|
|||||||
|
Packing size(mm)
|
490×410×470
|
|
|
|
|
|
|
|
|||||||
|
G.w./N.w.(kg)
|
28/26
|
|
|
|
|
|
35/33
|
|
|||||||
|
Model
|
HDGD-500CA
|
|
HDGD-600CA
|
|
HDGD-800CA
|
|
HDGD-990CA
|
|
|||||||
|
Method of use
|
Single
-hook |
Double
-hook |
Single
-hook |
Double
-hook |
Single
-hook |
Double
-hook |
Single
-hook |
Double
-hook |
|||||||
|
Rated volt(V)
|
AC 100/110/120 220/230/240 50/60Hz
|
|
|
|
AC 220/230/240 50/60Hz
|
|
|
|
|||||||
|
Rated capacity(kg)
|
250
|
500
|
300
|
600
|
400
|
800
|
500
|
990
|
|||||||
|
Lifting speed
(m/min)
|
10
|
5
|
10
|
5
|
10
|
5
|
10
|
5
|
|||||||
|
Lifting height(m)
|
12
|
6
|
12
|
6
|
12
|
6
|
12
|
6
|
|||||||
|
Load of Moving Vehicle(t)
|
0.5
|
|
1
|
|
|
|
|
|
|||||||
|
Speed of Moving Vehicle(m/min)
|
13
|
|
|
|
|
|
|
|
|||||||
|
Qty./CTN(pcs)
|
1
|
|
|
|
|
|
|
|
|||||||
|
Packing size(mm)
|
540 x 480 x 480
|
|
540x480x480
|
|
|
|
620 x 510 x 530
|
|
|||||||
|
Qty./CTN(pcs)
|
37/35
|
|
|
|
39/37
|
|
56/54
|
|
|||||||
