Quick Details
-
Memory Capacity:
-
999999m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TANGSHI
-
Voltage:
-
380v/220v
-
Power:
-
90W
-
Dimension(L*W*H):
-
2250*1150*1600mm
-
Weight:
-
500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Name:
-
High speed knit yarn winding machine
-
Driving:
-
Independence Control
-
Waxing device:
-
optional
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Turkey, Viet Nam, Indonesia, Pakistan, Mexico, Thailand, Sri Lanka, Bangladesh, South Africa, Uzbekistan
-
Certification:
-
CE, ISO, ISO9001:2008 / CE
Quick Details
-
Applicable Industries:
-
textile machine
-
Application:
-
winding machine
-
Production Capacity:
-
HIGH SPEED
-
Memory Capacity:
-
999999m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TANGSHI
-
Voltage:
-
380v/220v
-
Power:
-
90W
-
Dimension(L*W*H):
-
2250*1150*1600mm
-
Weight:
-
500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Name:
-
High speed knit yarn winding machine
-
Driving:
-
Independence Control
-
Waxing device:
-
optional
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Turkey, Viet Nam, Indonesia, Pakistan, Mexico, Thailand, Sri Lanka, Bangladesh, South Africa, Uzbekistan
-
Certification:
-
CE, ISO, ISO9001:2008 / CE

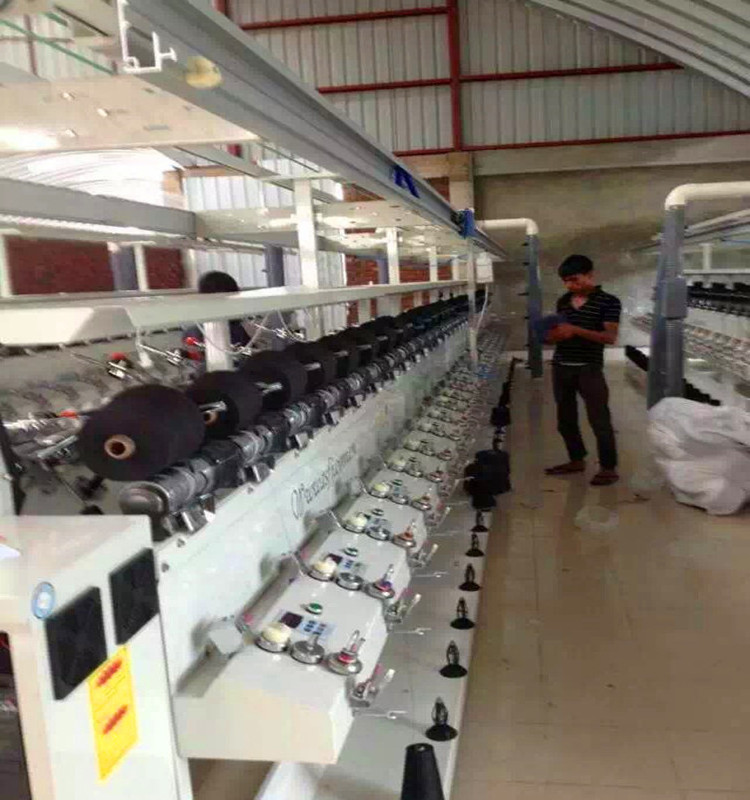

High speed knit yarn winding machine
The machine is semi-auto hard cone winding machine.It is used to take up good yarn cone shape for the processes of weaving,warp ing, knitting , etc. It is suit able for Cotton yarn, Wool yarn,Nylon, FDY, Polyester yarn ,PP yarn, etc .
|
Drum length |
17 5 mm |
|
Layout |
Double-side , 12 spindles one section |
|
Power Supply |
38 0V / 220V± 10% 50/60HZ |
|
Max. one set |
120 spindles |
|
Max.package diameter |
250mm |
|
Take-up traverse |
152mm |
|
Motor Power |
0.0 9 KW/spindle |
|
Take-up speed |
Max. 1000 meters/min |
|
Take-up package |
Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15 |
|
Driving |
Individual |
|
Auto Stop Device |
Motion sensor |
|
Electronic Anti-Stack |
Inverter control |
|
Auto- waxing device |
Optional |
|
Cleaner device |
Optional |
|
Slub catcher |
Optional |
|
Air Splicer |
Optional |
|
Clean traveller |
Optional |
|
Lighting System |
optional |
|
Dimensions |
L 225 0 x W 1 10 0 x H 1 40 0 mm ( 12 spindles) |
|
Weight |
500kg |
Cone to cone winding machine with waxing device is suitable for wool yarn,cotton yarn,etc. Auto-waxing device makes the yarn waxed totally. The yarn will be smooth after waxing and friendly on knitting machine.
Tangshi Textile Machinery Co.ltd.
